JQTC507Q0 04 – CONTAINER PARTS

JQTC507Q0 04 – CONTAINER PARTS

Written by

in

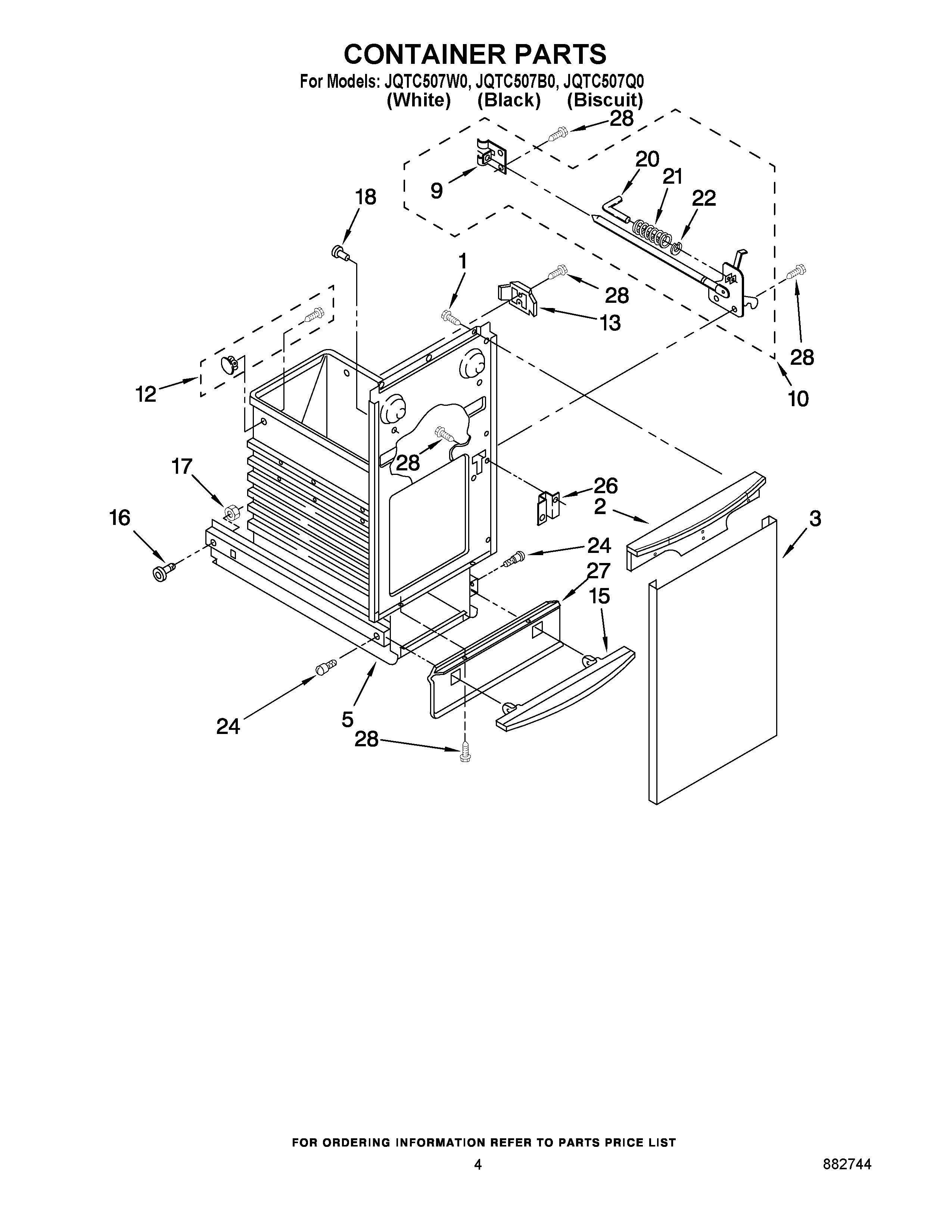

JQTC507Q0 04 – CONTAINER PARTS

Products

PositionProduct
1MAY 3400888
2MAY 9871573
2Handle, Container (Black)
2MAY 9871235
3Panel, Container (Black)
3Panel, Container (White)
3Panel, Container (Biscuit)
5MAY 9870996
9MAY 776395
10MAY 9870066
12MAY 4147703
13Actuator, Safety Switch
15MAY 9871577
15MAY 9871031
15Pedal, Foot (Black)
16Container, Bearing Roller
17Locknut, 3/8-24
18BUMPER, DOOR (2)
20Pin, Latch
21MAY 775736
22RING, ‘‘E’’
24Screw, Shoulder 8-16 x 7/16
26MAY 775665
27Guard, Toe Plate (Biscuit)
27GUARD, TOE PLATE (BLK)
27Guard, Toe Plate (White)
28Screw, 8-18 x 3/8
