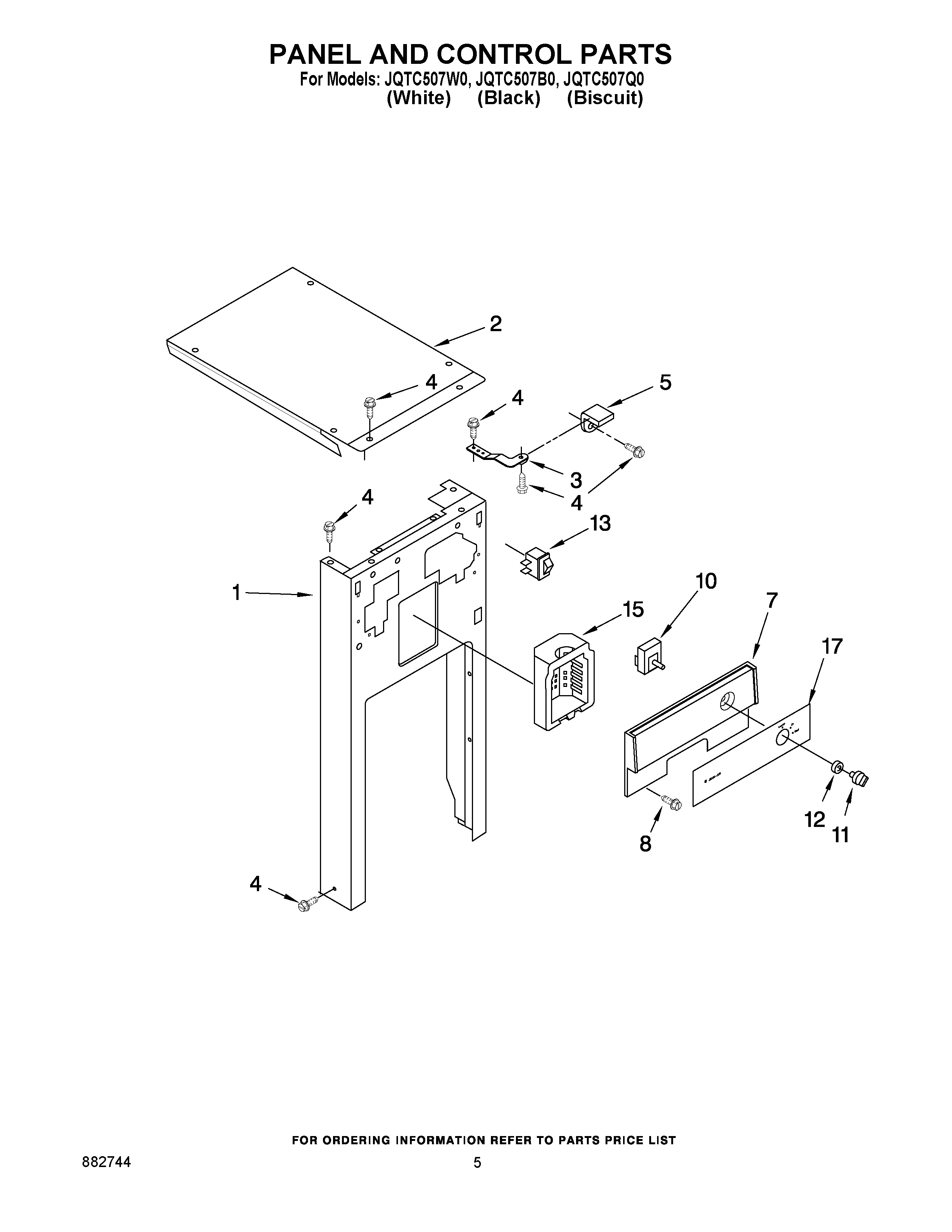

JQTC507W0 05 – PANEL AND CONTROL PARTS

Products

PositionProduct
1MAY 9871072
1MAY 9871073
1MAY 9871575
2Top, Cabinet
3MAY 9870158
3MAY 9870157
4MAY 489478
5Bracket, Mounting (Alternate)
7MAY 9871839T
7Console (White)
7Console (Black)
8Screw, 6-20 x 3/8
10MAY 608824
11MAY 9871659
11Knob, Rotary Switch (White)
11Knob, Rotary Switch (Black)
12Nut, Switch
13WP4387911 Whirlpool Refrigerator Switch
13Switch, Drawer Tilt (Black)
15MAY 9871858
15Compartment, Deodorant (Black)
15Compartment, Deodorant (White)
17MAY 9871845
17MAY 9871850
17MAY 9871844
