JRP03G*06

JRP03G*06

Written by

in

JRP03G*06

Products

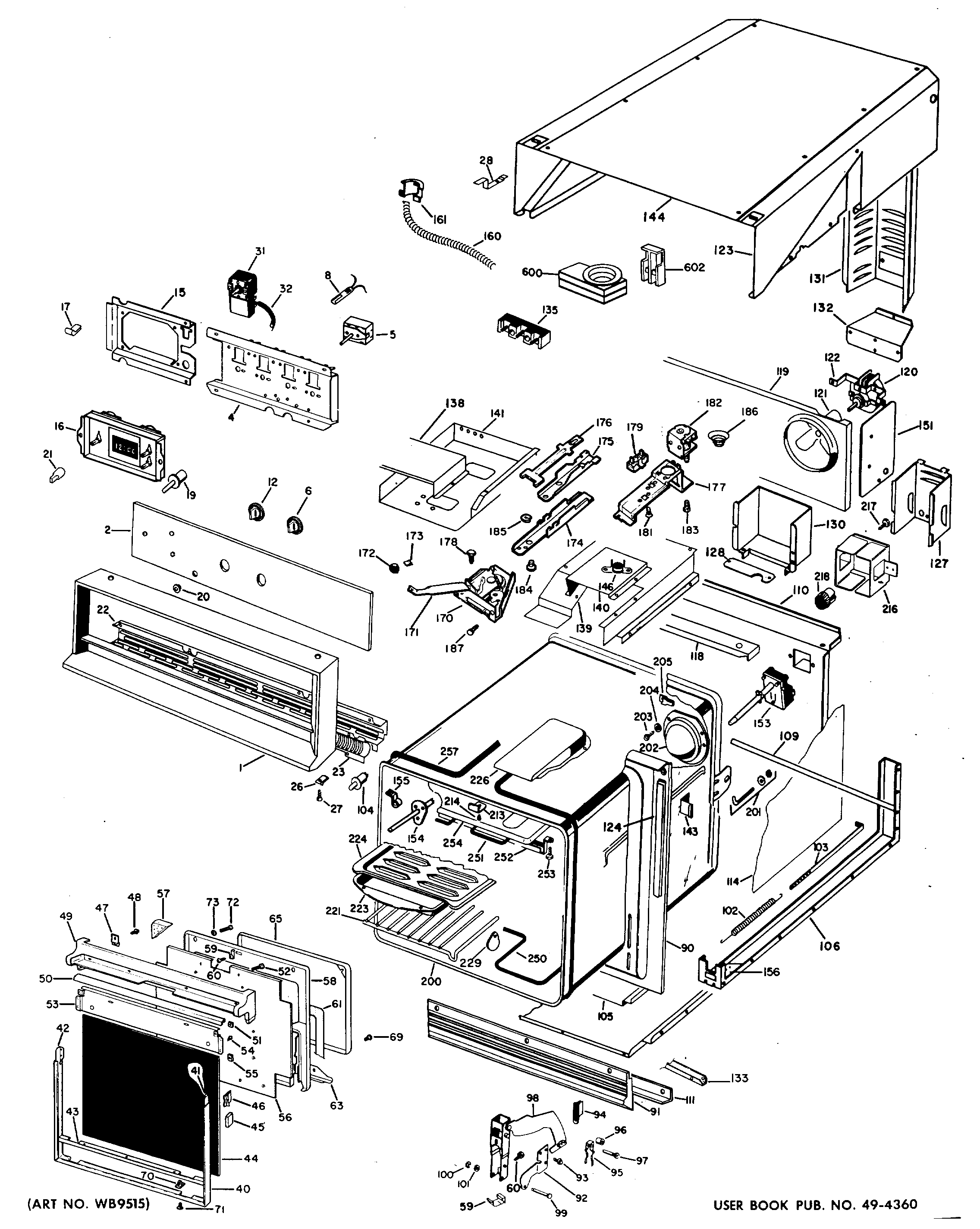

Position	Product
8	SWITCH, LATCH RELEASE
10	GEN WB02X3454
10	GEN WB01X5220
11	OVEN SWITCH
12	GEN WB03X0462
14	GEN WB02X6494
14	GEN WB24X0176
14	GEN WB02X6937
15	GEN WB03X0463
16	WB19X10006 GE Oven Clock
17	GEN WB3X459
18	GEN WB36X0566
45	NUT
51	GEN WB02X2843
99	GEN WB02X3405
117	GEN WB07X0596
119	GEN WB02X1973
121	GRILLE ASM
122	GEN WB02X2006
145	GEN WB02X3429
148	GEN WZ04X0237
260	UNKNOWN
260	UNKNOWN
261	UNKNOWN
261	UNKNOWN
262	UNKNOWN
263	PIN HINGE
264	RING RETAINING
265	GEN WB02X1460
267	UNKNOWN
268	GEN WB29X0053
269	INSULATOR TERMINAL
273	BLOCK TERM DISTRIBUTION
277	SWITCH, OVEN LIGHT
279	GEN WB08X0191
280	RANGE ONLY 40W 120V APPL BULB
281	GEN WB02X3466
282	GEN WB24X5138
283	GEN WB02X3164
283	GEN WB02X3163
290	GEN WB24X0199
313	GEN WB26X5052
314	GEN WB02X2001
350	INSULATION
350	GEN WB55X0405
352	WB2X3138 GE Oven Self-Clean Door Gasket
354	GEN WB09X0154
355	GEN WB55X0429
355	GEN WBO2X1965
358	GEN WB36X0563
359	GEN WB07X1221
360	GEN WB55X0420
361	GEN WZ04X0425
362	WB1X119D GE Oven Range Washer
365	GEN WB15X0159
380	GEN WB07X1222
398	GEN WB01X0600
419	GEN WB02X3407
424	GEN WB02X3331
425	GEN WB07X1220
427	GEN WB01X0580
431	GEN WB02X3338
431	GEN WB02X3339
432	GEN WB02X3341
438	GEN WB02X2269
440	GEN WB01X0585
459	WB1X537 GE Oven Screw
461	WB1X536 GE Oven Screw
520	GEN WB02X2116
520	PLUG BUTTON CAP TUBE
520	GEN WB02X3471
520	UNKNOWN
521	HOOK PACKAGE
522	GEN WB02X3393
523	WB36X192 GE Oven Light Cover
526	GEN WB02X3165
527	UNKNOWN
528	UNKNOWN
530	WB48X10056 GE Broil Pan Set, Large Porcelain
538	GEN WB02X3452
650	WB44X200 GE Oven Self-Clean Bake Element
651	WB44X173 GE Range Broil Element
652	SUPPORT BROIL
700	LATCH
701	GEN WB15X0150
702	GEN WB03X0434
703	RETAINER KNOB
704	GEN WB02X3157
705	GEN WB02X3158
706	GEN WB02X3159
707	PLATE MOUNTING
708	GEN WB24X0183
709	GEN WB24X0197
710	GEN WB09X0148
711	GEN WB02X6212
712	RETAINER RING
961	GEN WZ04X0369
2001	GEN WB55X0304
2001	GEN WB55X0305
2002	UNKNOWN
2004	GEN WB59X0
