JRP14G*06

JRP14G*06

Written by

in

JRP14G*06

Products

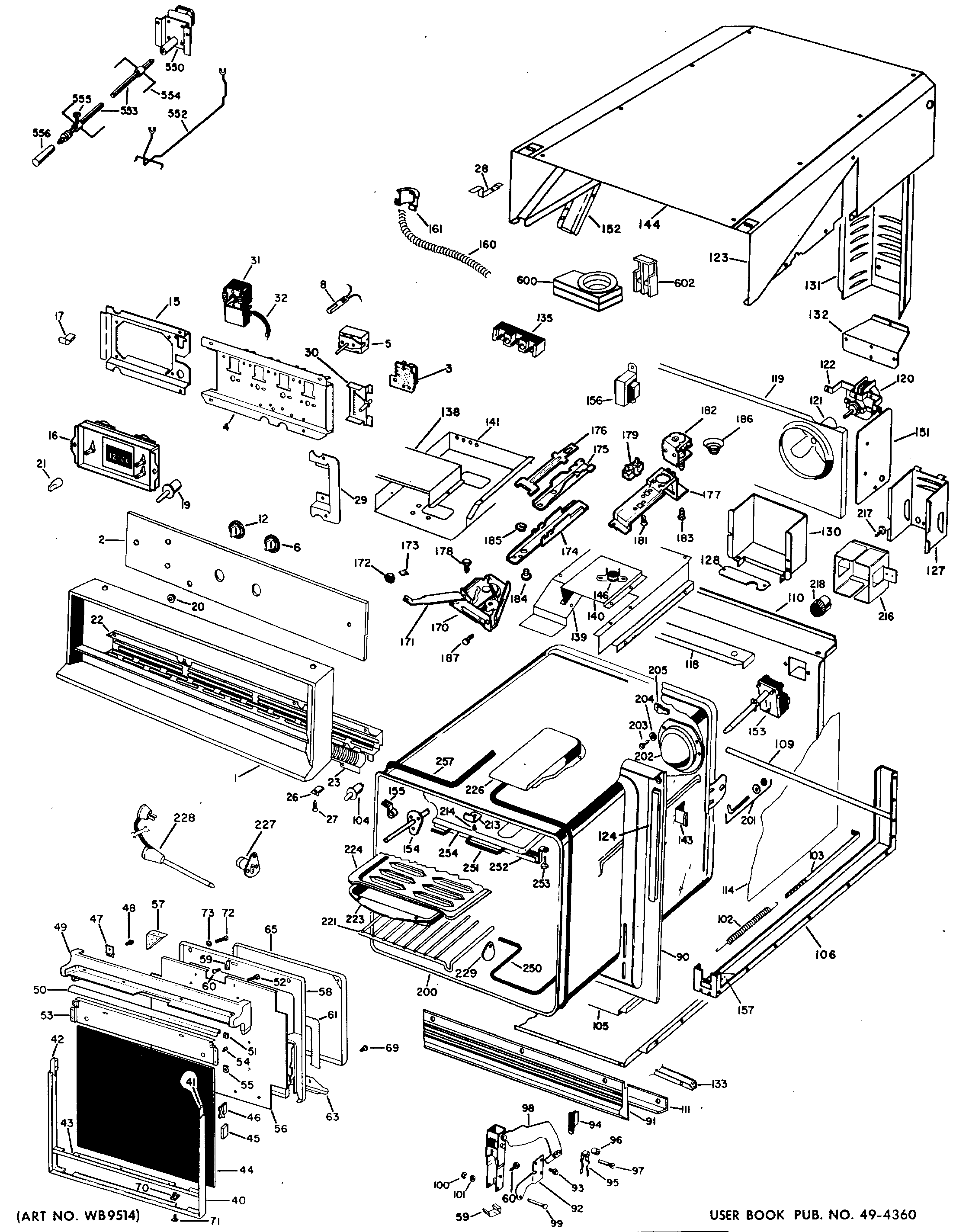

PositionProduct
8SWITCH, LATCH RELEASE
10GEN WB01X5220
10GEN WB02X3454
11GEN WB22X5082
12GEN WB03X0483
14GEN WB24X0176
14GEN WB02X6937
14GEN WB02X6494
15GEN WB03X0482
16WB19X10006 GE Oven Clock
17GEN WB3X459
18GEN WB36X0565
45NUT
51GEN WB02X2843
99GEN WB02X3405
115CIRCUIT BOARD ASM THERMO
116BRACKET CIRCUIT BOARD
117GEN WB07X0596
118GEN WB02X2407
119GEN WB02X1973
121GRILLE ASM
122GEN WB02X2006
145GEN WB02X3429
148GEN WZ04X0237
260UNKNOWN
260UNKNOWN
261UNKNOWN
261UNKNOWN
262UNKNOWN
263PIN HINGE
264RING RETAINING
265GEN WB02X1460
267UNKNOWN
268GEN WB29X0053
269INSULATOR TERMINAL
273BLOCK TERM DISTRIBUTION
277SWITCH, OVEN LIGHT
279GEN WB08X0191
280RANGE ONLY 40W 120V APPL BULB
281GEN WB02X3466
282GEN WB24X5138
283GEN WB02X3164
283GEN WB02X3163
290GEN WB24X0199
313GEN WB26X5052
314GEN WB02X2001
350INSULATION
350GEN WB55X0405
352WB2X3138 GE Oven Self-Clean Door Gasket
354GEN WB09X0154
355GEN WB55X0429
355GEN WBO2X1965
358GEN WB36X0563
359GEN WB07X1221
360GEN WB55X0420
361GEN WZ04X0425
362WB1X119D GE Oven Range Washer
365GEN WB15X0159
380GEN WB07X1222
398GEN WB01X0600
419GEN WB02X3407
424GEN WB02X3331
425GEN WB07X1220
427GEN WB01X0580
431GEN WB02X3338
431GEN WB02X3339
432GEN WB02X3341
438GEN WB02X2269
440GEN WB01X0585
459WB1X537 GE Oven Screw
461WB1X536 GE Oven Screw
520UNKNOWN
520GEN WB02X3471
520GEN WB02X2116
520GEN WB02X1925
520PLUG BUTTON CAP TUBE
521HOOK PACKAGE
522GEN WB02X3393
523WB36X192 GE Oven Light Cover
526GEN WB02X3165
527UNKNOWN
528UNKNOWN
530WB48X10056 GE Broil Pan Set, Large Porcelain
536GEN WB20X0055
537GEN WB20X0054
538GEN WB02X3452
650WB44X200 GE Oven Self-Clean Bake Element
651WB44X173 GE Range Broil Element
652SUPPORT BROIL
700LATCH
701GEN WB15X0150
702GEN WB03X0434
703RETAINER KNOB
704GEN WB02X3157
705GEN WB02X3158
706GEN WB02X3159
707PLATE MOUNTING
708GEN WB24X0183
709GEN WB24X0197
710GEN WB09X0148
711SPACER PANEL
