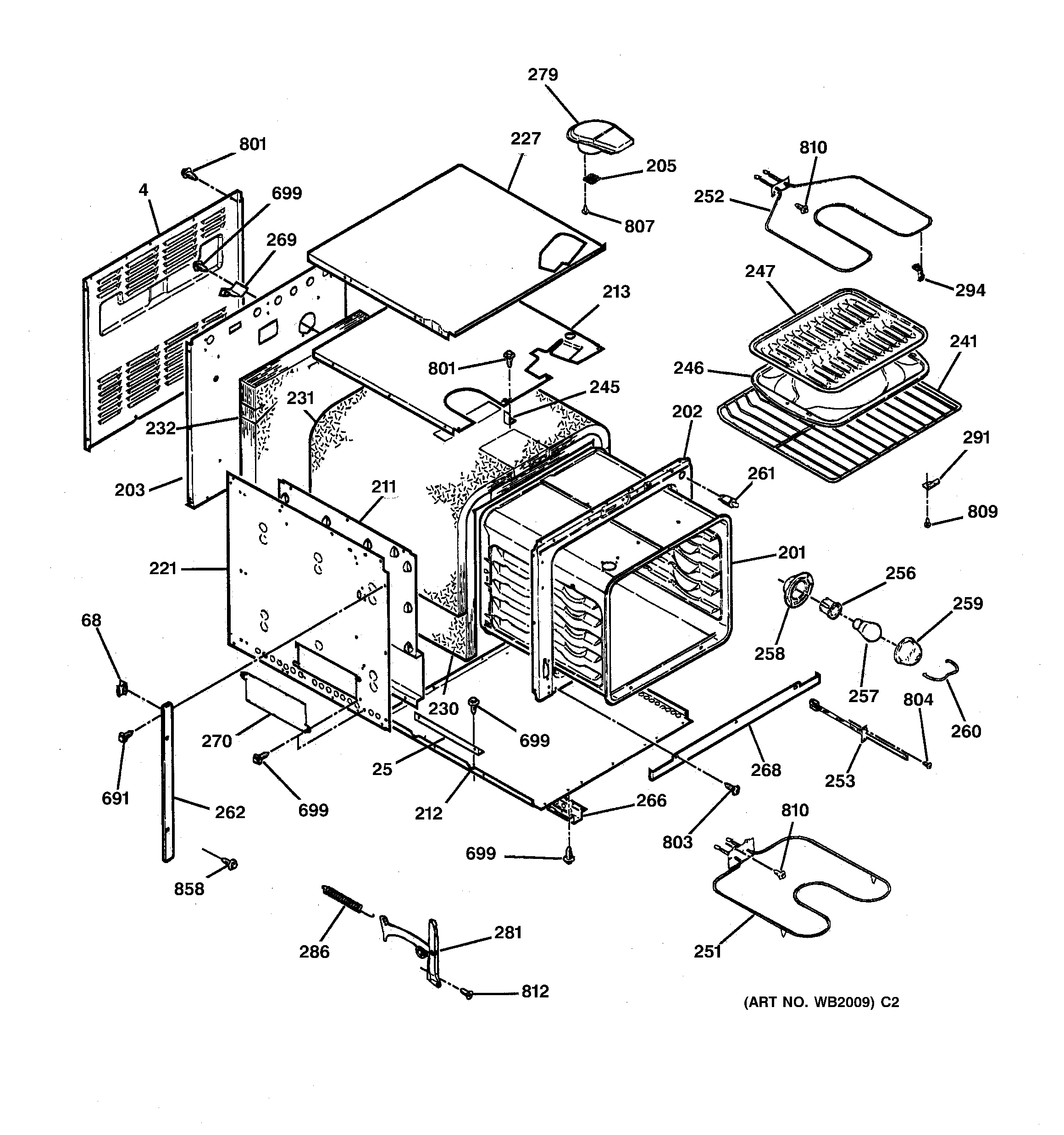

JRP15BW2BB BODY PARTS

JRP15BW2BB BODY PARTS

Written by

in

JRP15BW2BB BODY PARTS

Products

PositionProduct
4WB63M45 GE Cabinet Back
25GEN WB02M0041
68GEN WB02M0040
201WB63T10012 GE Oven Body
202GEN WB63T10013
203GEN WB63K5118
205WB6K5026 GE Oven Smoke El Screw
211GEN WB02K5180
212GEN WB63K5116
213GEN WB02K5256
221GEN WB63K5117
227GEN WB02K5173
230WB35K5048 GE Inner Wrapper Insulation
231WB35K5068 GE Insulation Wrapper
232WB35K5057 GE Upper Back/Bottom Insulation
241WB48T10094 GE Oven Rack
245GEN WB02M0030
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5013 GE Oven Bake Element Range
252WB44K5009 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256WB8X303 GE Oven Lamp Holder
257GEN BUY-LOCAL
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261GEN WB24K5061
262VERTICAL SIDE TRIM-BLK
262WB7K5491 GE Trim Vent Black
266GEN WB02X9634
268LOWER FRONT FRAME TRIM
269WB2K5164 GE Light Cup Support
270GEN WB02X9642
279VENT BOX ASM-BLACK
281GEN WB14K5007
281GEN WB14K5006
286UNKNOWN
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
691WB1K5177 GE Oven Trim Screw
699WB1M1 GE Oven Screw
803WB1K5162 GE Oven Black Screw
804WB1X681 GE Oven Screw
807WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
812WB1K5191 GE Oven Zinc FL Screw
