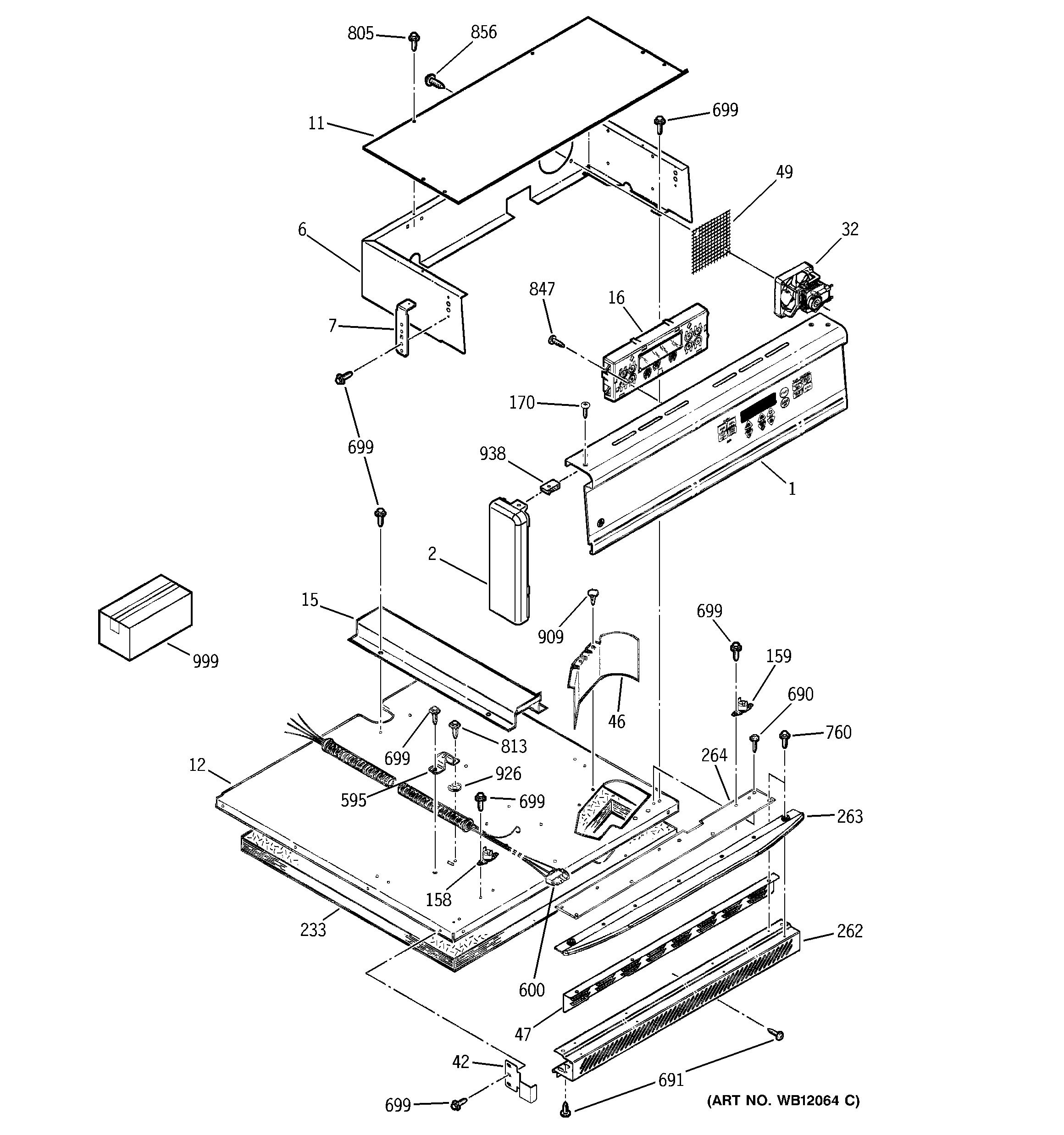

JRP15BW5BB CONTROL PANEL

Products

Position	Product
1	WB36T10542 GE Oven Control Panel Assembly
2	GEN WB36T10065
2	GEN WB36T10064
6	WB37K5041 GE Control Housing
7	WB2K5406 GE Bracket
11	WB37K5040 GE Top Control Housing
12	GEN WB63K5120
15	WB2X9665 GE Wire Cover
16	GEN WB27T10270
32	WB26K5072 GE Oven Fan Assembly
42	GEN WB34K5249
46	GEN WB34K5099
47	WB38K5058 GE Vent Barrier
49	GEN WB07X5016
158	LIMIT SWITCH-TO CAB TOP
159	WB24K5085 GE Oven Limit Switch
170	WB1K60 GE Screw 8-18
262	VERTICAL SIDE TRIM-BLK
262	WB7K5491 GE Trim Vent Black
263	I-BROW TRIM-BLK
264	GEN WB07K5121
595	WB2K5126 GE Oven Condenser Clamp
600	GEN WB18K5364
690	WB1K5167 GE Screw 8-18 X 3/8"
691	WB1K5177 GE Oven Trim Screw
691	WB1K5162 GE Oven Black Screw
699	WB1M1 GE Oven Screw
760	WB1X536 GE Oven Screw
805	GEN WB01X1113
813	WB1X1261 GE Oven Screw
847	WB1X1118 GE Oven Screw 6-32T
856	WB1X1293 GE Oven Screw
909	WB1X1173 GE Rivet
926	GROUND WASHER
938	WB1K5209 GE Oven Clip
999	GEN 31-13907
999	GEN 49-80032
999	MAIN WIRE HARNESS
999	LOCK MOTOR WIRE HARNESS
999	DR SW WIRE HARNESS
999	GEN 31-10118
