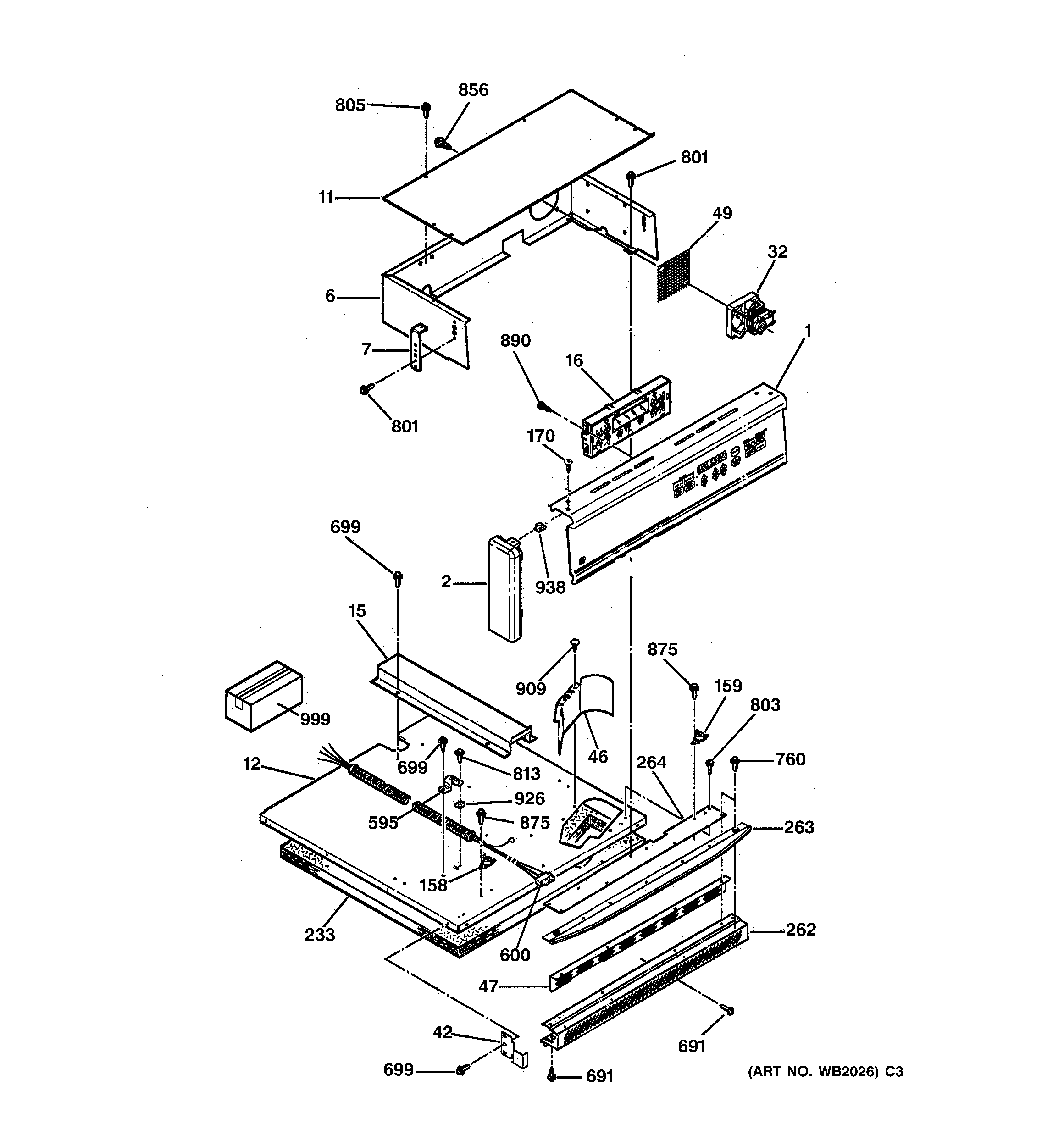

JRP15WW2WW CONTROL PANEL

Written by

Products

Position	Product
1	GEN WB36K5703
2	GEN WB36K5697
2	GEN WB36K5696
6	WB37K5041 GE Control Housing
7	WB2K5406 GE Bracket
11	WB37K5040 GE Top Control Housing
12	GEN WB63K5120
15	WB2X9665 GE Wire Cover
16	GEN WB27K5299
32	WB26K5072 GE Oven Fan Assembly
42	GEN WB34K5249
46	GEN WB34K5099
47	WB38K5058 GE Vent Barrier
49	GEN WB07X5016
158	LIMIT SWITCH-TO CAB TOP
159	WB24K5085 GE Oven Limit Switch
170	WB1K58 GE Screw 8-18
233	GEN WB35K5066
262	WB7K5125 GE Oven Side Trim
262	WB7K5495 GE Vent Trim Stainless Steel
263	GEN WB07K5494
264	GEN WB07K5121
595	WB2K5126 GE Oven Condenser Clamp
600	GEN WB18K5364
690	WB1K5167 GE Screw 8-18 X 3/8"
691	WB1K5177 GE Oven Trim Screw
691	WB1K5169 GE Trim Screw 10-16 X 3/8" White
699	WB1M1 GE Oven Screw
760	WB1X536 GE Oven Screw
803	WB1X1149 GE Oven Screw
803	WB1K5162 GE Oven Black Screw
803	GEN WB01K5163
805	GEN WB01X1113
813	WB1X1261 GE Oven Screw
856	WB1X1293 GE Oven Screw
875	WH2X930 GE Screw
890	WB1X1118 GE Oven Screw 6-32T
909	WB1X1173 GE Rivet
926	GROUND WASHER
938	WB1K5209 GE Oven Clip
999	GEN 31-10118
999	GEN 31-13328
999	USE & CARE MANUAL
