JRP15WW6WW CONTROL PANEL

JRP15WW6WW CONTROL PANEL

Written by

in

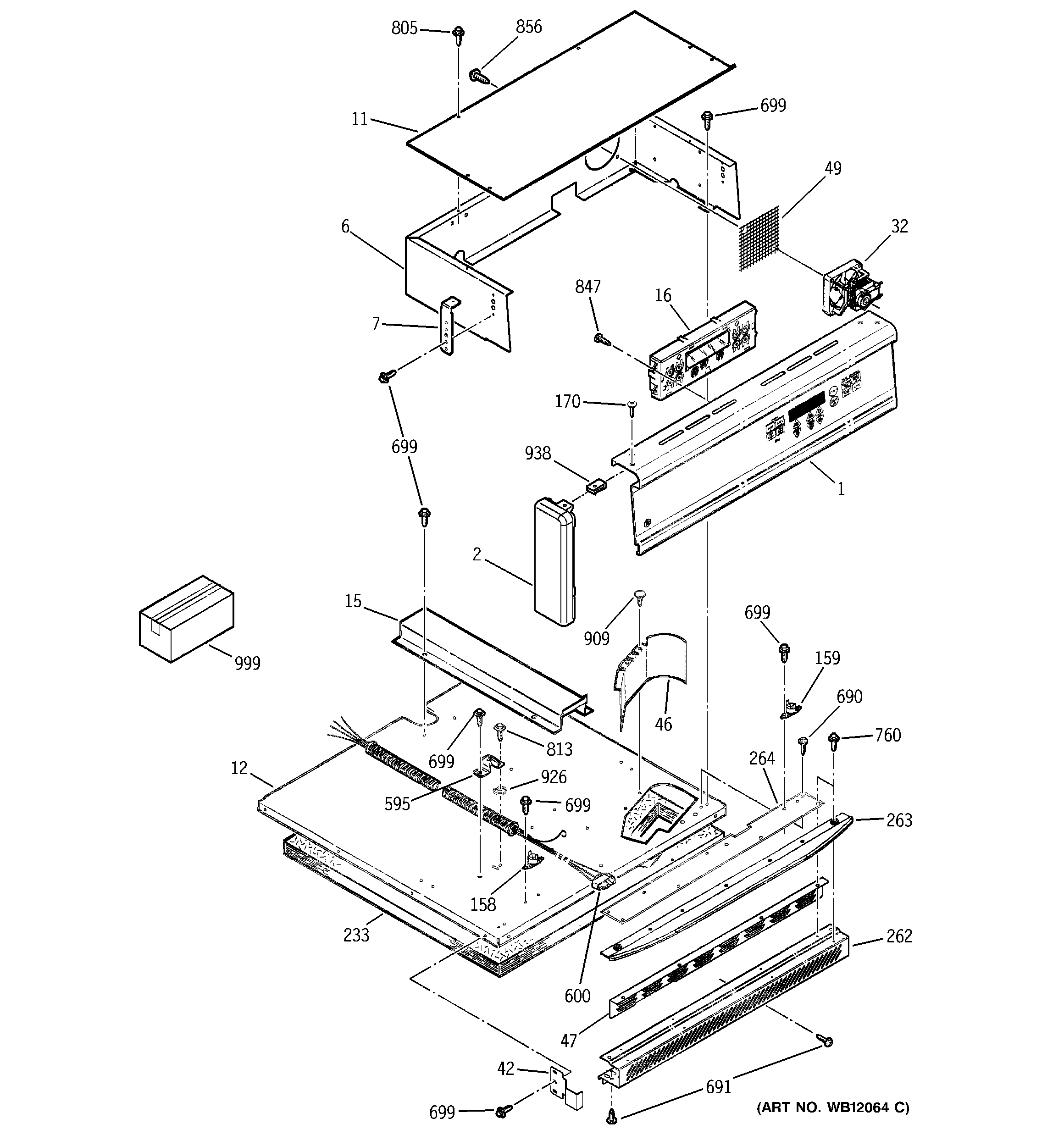

JRP15WW6WW CONTROL PANEL

Products

PositionProduct
1GEN WB36T10543
2GEN WB36T10067
2GEN WB36T10068
6WB37K5041 GE Control Housing
7WB2K5406 GE Bracket
11WB37K5040 GE Top Control Housing
12GEN WB63K5120
15WB2X9665 GE Wire Cover
16GEN WB27T10477
32WB26K5072 GE Oven Fan Assembly
42GEN WB34K5249
46GEN WB34K5099
47WB38K5058 GE Vent Barrier
49GEN WB34T10066
158WB24K5046 GE Oven Limit Switch
159WB24T10096 GE Oven Limit Bimetal Switch
170WB1K58 GE Screw 8-18
233GEN WB35K5066
262WB7K5125 GE Oven Side Trim
262WB7K5495 GE Vent Trim Stainless Steel
263GEN WB07K5494
264GEN WB07K5121
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18K5364
690WB1K5167 GE Screw 8-18 X 3/8"
691WB1K5162 GE Oven Black Screw
691GEN WB01K5192
691GEN WB01K5163
691WB1K5177 GE Oven Trim Screw
699WB1M1 GE Oven Screw
760WB1X536 GE Oven Screw
805GEN WB01X1113
813WB1X1261 GE Oven Screw
847WB1X1118 GE Oven Screw 6-32T
856WB1X1293 GE Oven Screw
909WB1X1173 GE Rivet
926GROUND WASHER
938WB1K5209 GE Oven Clip
999DR SW WIRE HARNESS
999LOCK MOTOR WIRE HARNESS
999HARNESS WIRE MAIN
999GEN 49-80032
