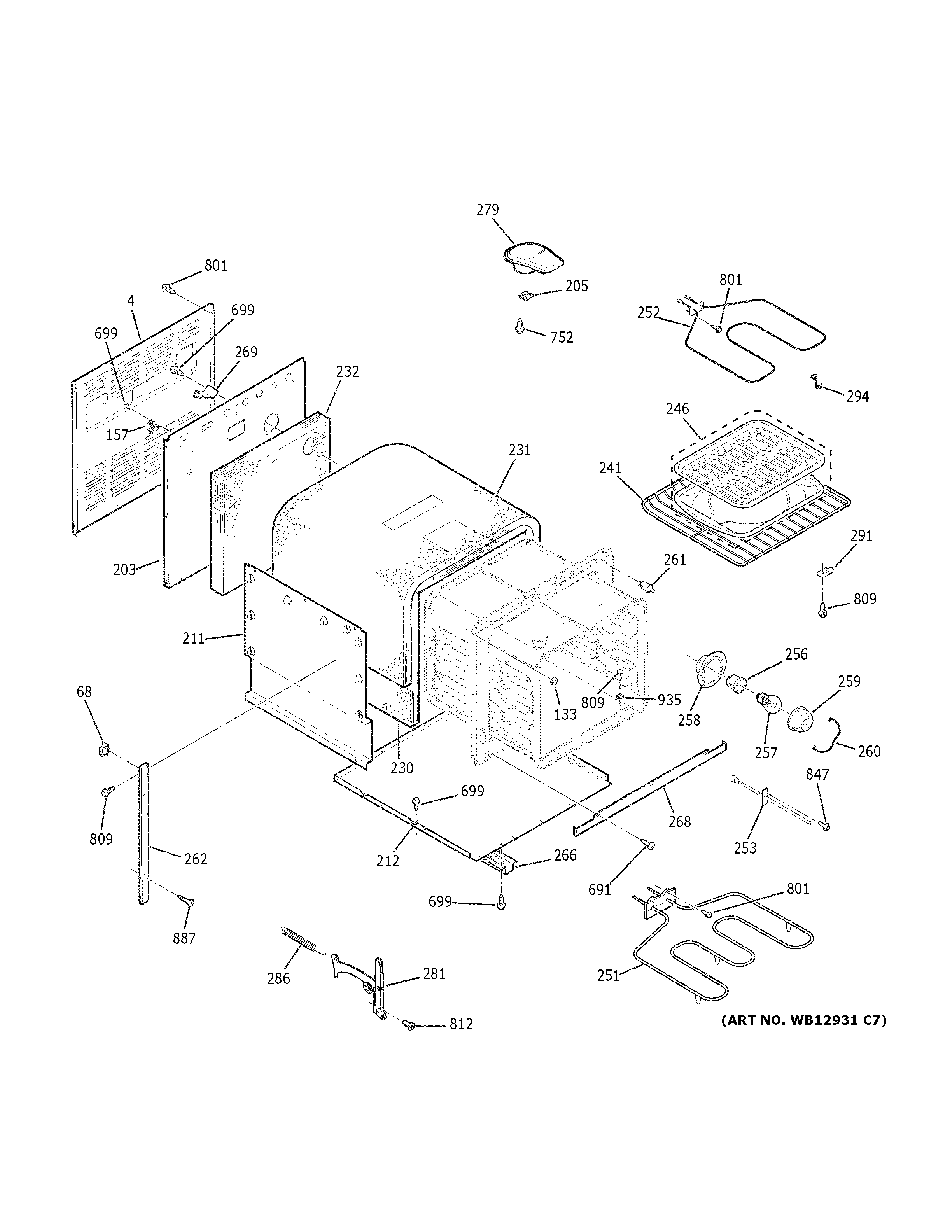

JRP20SK3SS BODY PARTS

JRP20SK3SS BODY PARTS

Written by

in

JRP20SK3SS BODY PARTS

Products

PositionProduct
4WB63M45 GE Cabinet Back
68SPACER FRT TRIM (BLK)
133WB01T10022 GE Oven Door Bumper
157WB24K5098 GE Oven Limit Switch
203BACK MAIN
205WB02X29256 GE Smoke Eliminator Screen
211RETAINER INSLN SDE
212GEN WB63K5116
230WB35K5048 GE Inner Wrapper Insulation
231WB35K5068 GE Insulation Wrapper
232WB35K5057 GE Upper Back/Bottom Insulation
241WB48T10094 GE Oven Rack
246WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44X26298 GE Oven Bake Element (2650W)
252BROIL ELEMENT 3400W
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256WB8X303 GE Oven Lamp Holder
257RANGE ONLY 40W 120V APPL BULB
258WB02T10037 GE Oven Light Cup
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261WB24T10160 GE Oven High AMP SPDT Switch
262WB07T10370 GE Microwave Trim
266GEN WB02X9634
268WB07T10415 GE Oven Trim Lower Front
269WB2K5164 GE Light Cup Support
279VENT BOX ASM-BLACK
281WB10T10061 GE Oven Left Door Hinge
281WB10T10060 GE Oven Right Door Hinge
286WB09T10009 GE Oven Door Spring
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
691WH2X930 GE Screw
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
801WB01M10002 GE Oven Screw
809WB1X1137 GE Oven Screw
812WB1K5191 GE Oven Zinc FL Screw
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
887WB1K5173 GE Oven Screw ST 8-18 X 3/4" Black
935WB1K5174 GE Oven Washer
