JRP20WJ1WW BODY PARTS

JRP20WJ1WW BODY PARTS

Written by

in

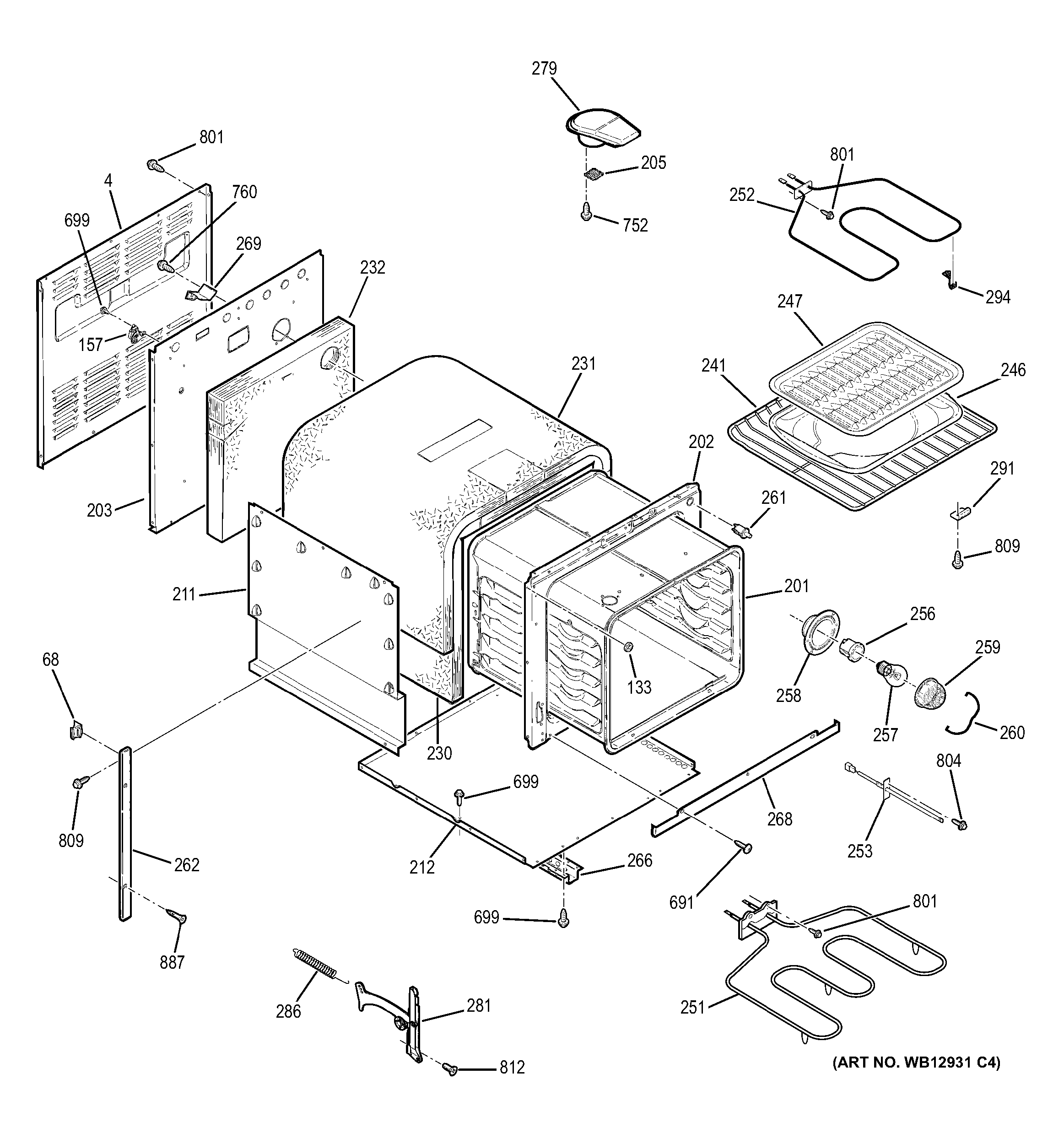

JRP20WJ1WW BODY PARTS

Products

PositionProduct
4WB63M45 GE Cabinet Back
68WB02T10163 GE White Front Trim Spacer
133WB01T10022 GE Oven Door Bumper
157WB24K5098 GE Oven Limit Switch
201WB63T10012 GE Oven Body
202GEN WB63T10013
203BACK MAIN
205WB6K5026 GE Oven Smoke El Screw
211RETAINER INSLN SDE
212GEN WB63K5116
230WB35K5048 GE Inner Wrapper Insulation
231WB35K5068 GE Insulation Wrapper
232WB35K5057 GE Upper Back/Bottom Insulation
241WB48T10094 GE Oven Rack
246WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44T10007 GE Oven Bake Element
252WB44K5009 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256WB8X303 GE Oven Lamp Holder
257GEN BUY-LOCAL
258WB02T10037 GE Oven Light Cup
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261GEN WB24T10111
262WB7K5495 GE Vent Trim Stainless Steel
262WB7K5125 GE Oven Side Trim
266GEN WB02X9634
268TRIM FRT FRM LWR
269WB2K5164 GE Light Cup Support
279VENT BOX ASM-BLACK
281WB10T10060 GE Oven Right Door Hinge
281WB10T10061 GE Oven Left Door Hinge
286SPRING OVEN DR UPPER
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
691WB1X1149 GE Oven Screw
691GEN WB01K5163
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
760WB1X536 GE Oven Screw
804WB1X681 GE Oven Screw
809WB1X1137 GE Oven Screw
812WB1K5191 GE Oven Zinc FL Screw
887WB1K5172 GE Oven Screw
