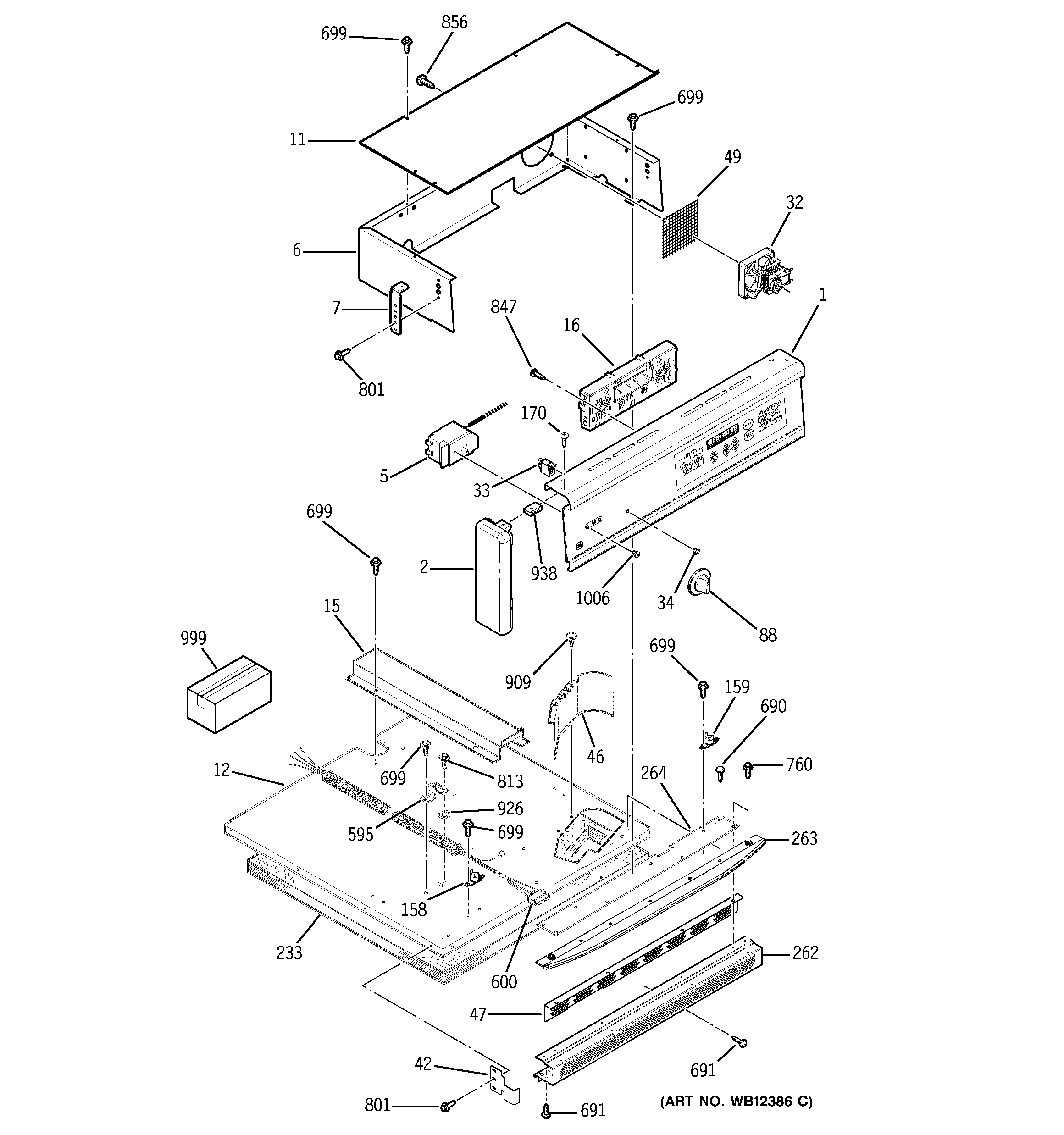

JRP24BD1BB CONTROL PANEL

JRP24BD1BB CONTROL PANEL

Written by

in

JRP24BD1BB CONTROL PANEL

Products

PositionProduct
1GEN WB36T10574
2GEN WB36T10065
2GEN WB36T10064
5GEN WB20T10004
6WB37K5041 GE Control Housing
7WB2K5406 GE Bracket
11WB37K5040 GE Top Control Housing
12GEN WB63K5120
15WB2X9665 GE Wire Cover
16GEN WB27T10270
32WB26K5072 GE Oven Fan Assembly
33WB25T10039 GE Oven Light Indicator
42GEN WB34K5249
46GEN WB34K5099
47WB38K5058 GE Vent Barrier
49GEN WB07X5016
88GEN WB03T10178
158LIMIT SWITCH-TO CAB TOP
159WB24K5085 GE Oven Limit Switch
170WB1K60 GE Screw 8-18
233GEN WB35K5066
262WB7K5491 GE Trim Vent Black
262WB7K5263 GE Vertical Side Trim
263I-BROW TRIM-BLK
263TRIM CENTER I-BROW (BLK)
264GEN WB07K5121
595WB2K5126 GE Oven Condenser Clamp
600WB18X32567 GE Conduit Wire Assembly
690WB1K5167 GE Screw 8-18 X 3/8"
691WB1K5177 GE Oven Trim Screw
691WB1K5162 GE Oven Black Screw
699WB1M1 GE Oven Screw
760WB1X536 GE Oven Screw
813WB1X1261 GE Oven Screw
847WB1X1118 GE Oven Screw 6-32T
856WB1X1293 GE Oven Screw
909WB1X1173 GE Rivet
926GROUND WASHER
938WB1K5209 GE Oven Clip
999GEN 31-10118
999GEN 31-13942
999GEN 49-80105
1006SCR 8/32 TF FLR 5/16 S
