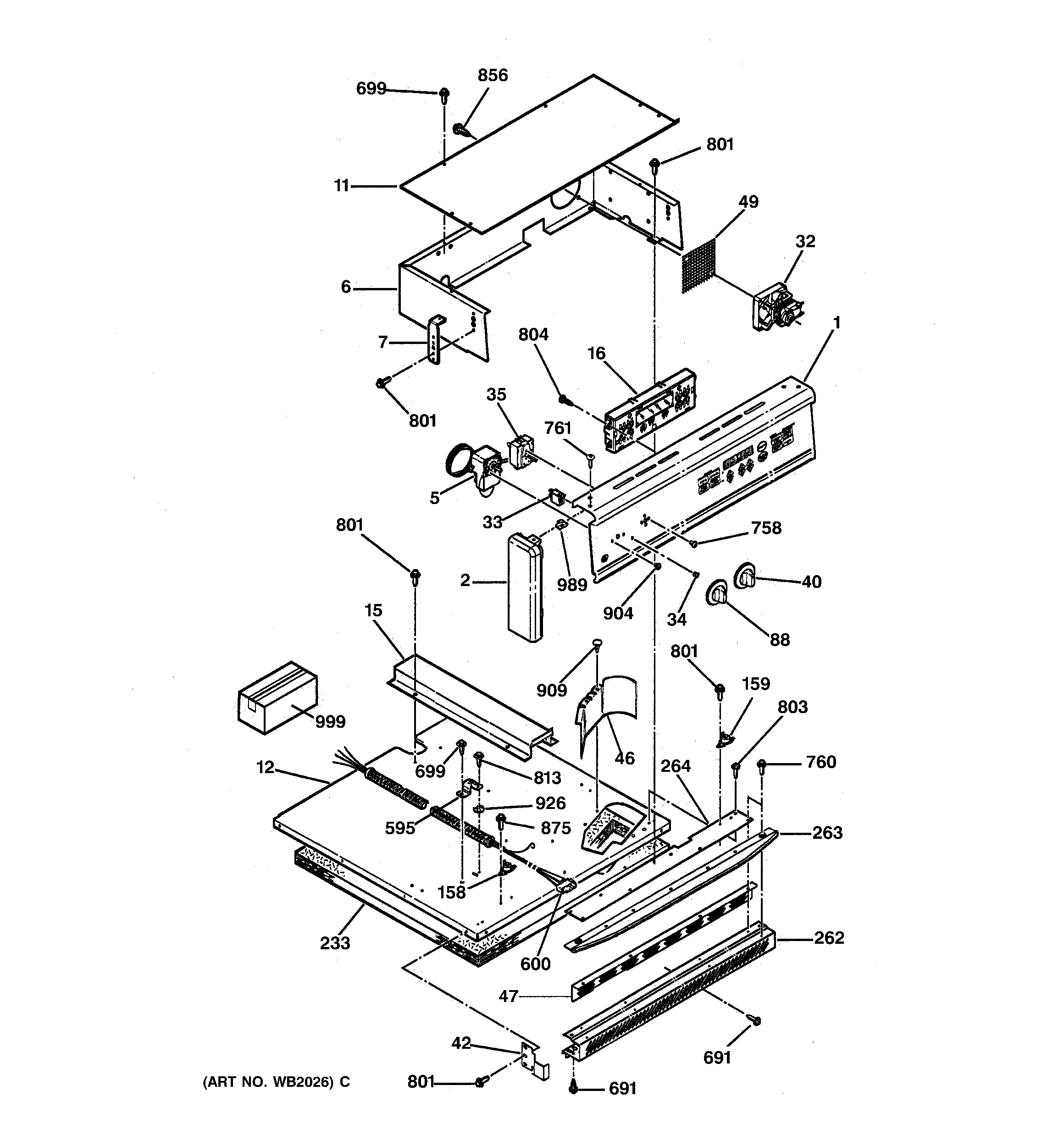

JRP24BW1BB CONTROL PANEL

Products

Position	Product
1	GEN WB36K5704
2	GEN WB36K5682
2	GEN WB36K5681
5	THERMOSTAT
6	WB37K5041 GE Control Housing
7	WB2K5406 GE Bracket
11	WB37K5040 GE Top Control Housing
12	GEN WB63K5120
15	WB2X9665 GE Wire Cover
16	GEN WB27K5299
32	WB26K5072 GE Oven Fan Assembly
33	WB25T10039 GE Oven Light Indicator
35	GEN WB24K5040
40	GEN WB03K5254
42	GEN WB34K5249
46	GEN WB34K5099
47	WB38K5058 GE Vent Barrier
49	GEN WB07X5016
88	GEN WB03K5253
158	LIMIT SWITCH-TO CAB TOP
159	WB24K5085 GE Oven Limit Switch
233	GEN WB35K5066
253	WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
262	WB7K5263 GE Vertical Side Trim
262	WB7K5491 GE Trim Vent Black
263	I-BROW TRIM-BLK
263	TRIM CENTER I-BROW (BLK)
264	GEN WB07K5121
530	WB48X10056 GE Broil Pan Set, Large Porcelain
595	WB2K5126 GE Oven Condenser Clamp
600	WB18X32567 GE Conduit Wire Assembly
691	WB1K5177 GE Oven Trim Screw
699	WB1M1 GE Oven Screw
752	WB1K5200 GE Oven Screw 340531
758	WD2X323D GE Dishwasher Screw Package
760	WB1X536 GE Oven Screw
761	WB1K5029 GE Oven Screw
803	WB1K5162 GE Oven Black Screw
804	WB1X681 GE Oven Screw
813	WB1X1261 GE Oven Screw
821	GEN WB01M0005
856	WB1X1293 GE Oven Screw
875	WH2X930 GE Screw
890	WB1X1118 GE Oven Screw 6-32T
904	SCR 8/32 TF FLR 5/16 S
909	WB1X1173 GE Rivet
911	GEN WB01K5124
926	GROUND WASHER
935	WB1K5174 GE Oven Washer
941	GEN WB01X1399
989	WB1K5209 GE Oven Clip
999	LOCK MOTOR WIRE HARNESS
999	GEN 31-13335
999	GEN 49-8706
999	GEN WB18K5646
999	GEN WB18K5344
999	GEN 31-10118

No products found
