JRP24GP1 3

Products

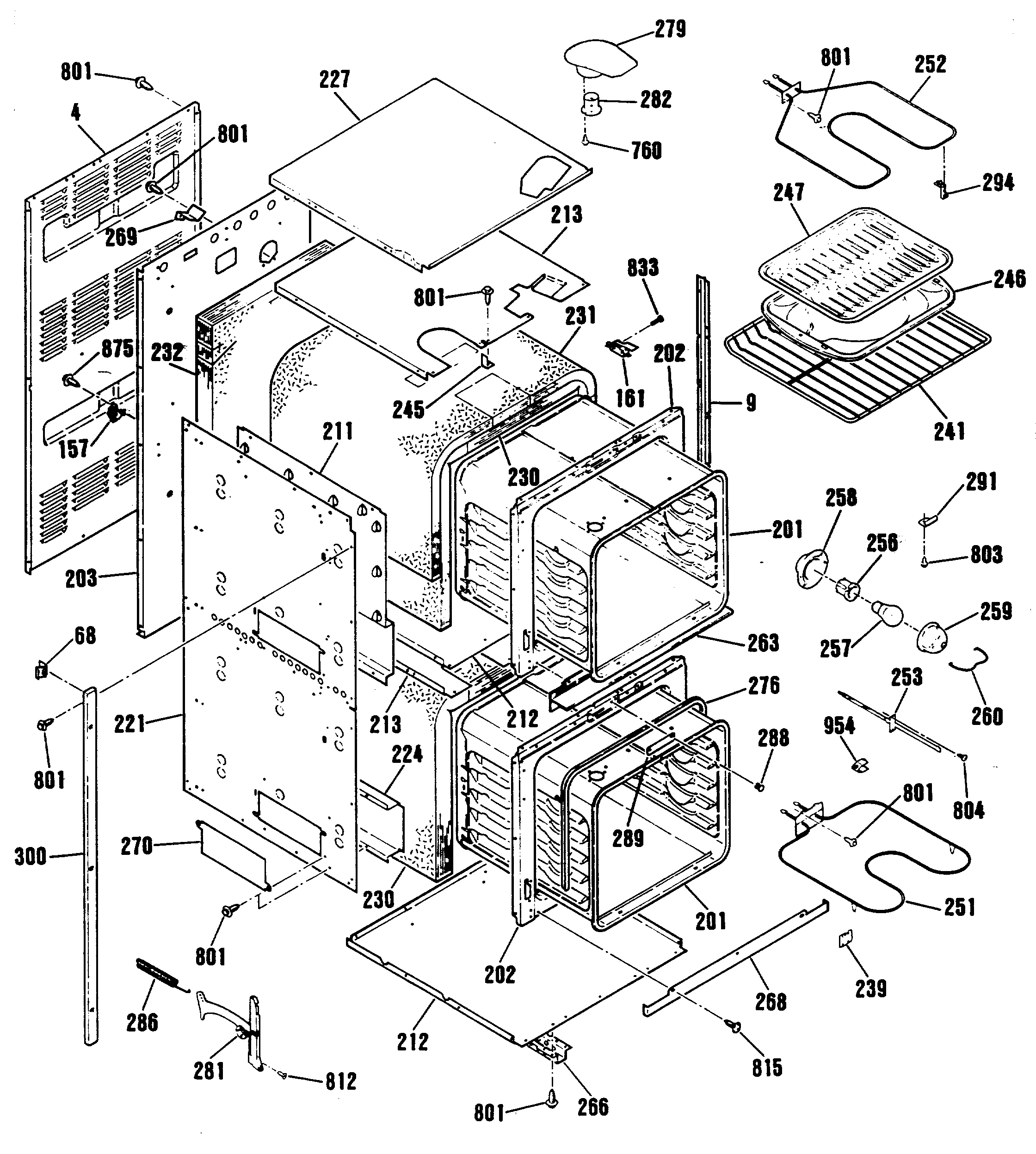

PositionProduct
9RACEWAY-UPPER
68GEN WB02M0040
157WB24K5046 GE Oven Limit Switch
161GEN WB24X0452
201GEN WB63K5115
202UNKNOWN
203GEN WB63K5113
212GEN WB63K5111
212RETAINER OV BTM INS
213GEN WB02K5174
213UNKNOWN
221WB63K5112 GE Oven Side Cabinet
224WB2K5172 GE Door Spring Retainer
227GEN WB02K5173
230WB35K5041 GE Inner Wrap Insulation
230WB35K5048 GE Inner Wrapper Insulation
231WB35K5068 GE Insulation Wrapper
232INSULATION-BACK/BTM-LO
232WB35K5057 GE Upper Back/Bottom Insulation
241WB48T10094 GE Oven Rack
245GEN WB02M0030
246WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5013 GE Oven Bake Element Range
252WB44K5009 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
257GEN BUY-LOCAL
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
263GEN WB07K5109
263GEN WB02X9634
263TRIM CENTER I-BROW (BLK)
268LOWER FRONT FRAME TRIM
269WB2K5164 GE Light Cup Support
270GEN WB02X9642
276GEN WB32K5019
279VENT BOX ASM-BLACK
281GEN WB14K5006
281GEN WB14K5007
282GEN WB28K5010
286UNKNOWN
286GEN WB09K5011
288GEN WB03K5043
289WB34K5068 GE Latch Opening Cover
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
300GEN WB07K5120
760WB1X536 GE Oven Screw
801WB1M1 GE Oven Screw
803WB1X1149 GE Oven Screw
804WB1X681 GE Oven Screw
812WB1K5191 GE Oven Zinc FL Screw
815SCREW
875GEN WB01K5057
954THERMOSTAT BULB RET CLIP
