JRP24GP3BG 0

JRP24GP3BG 0

Written by

in

JRP24GP3BG 0

Products

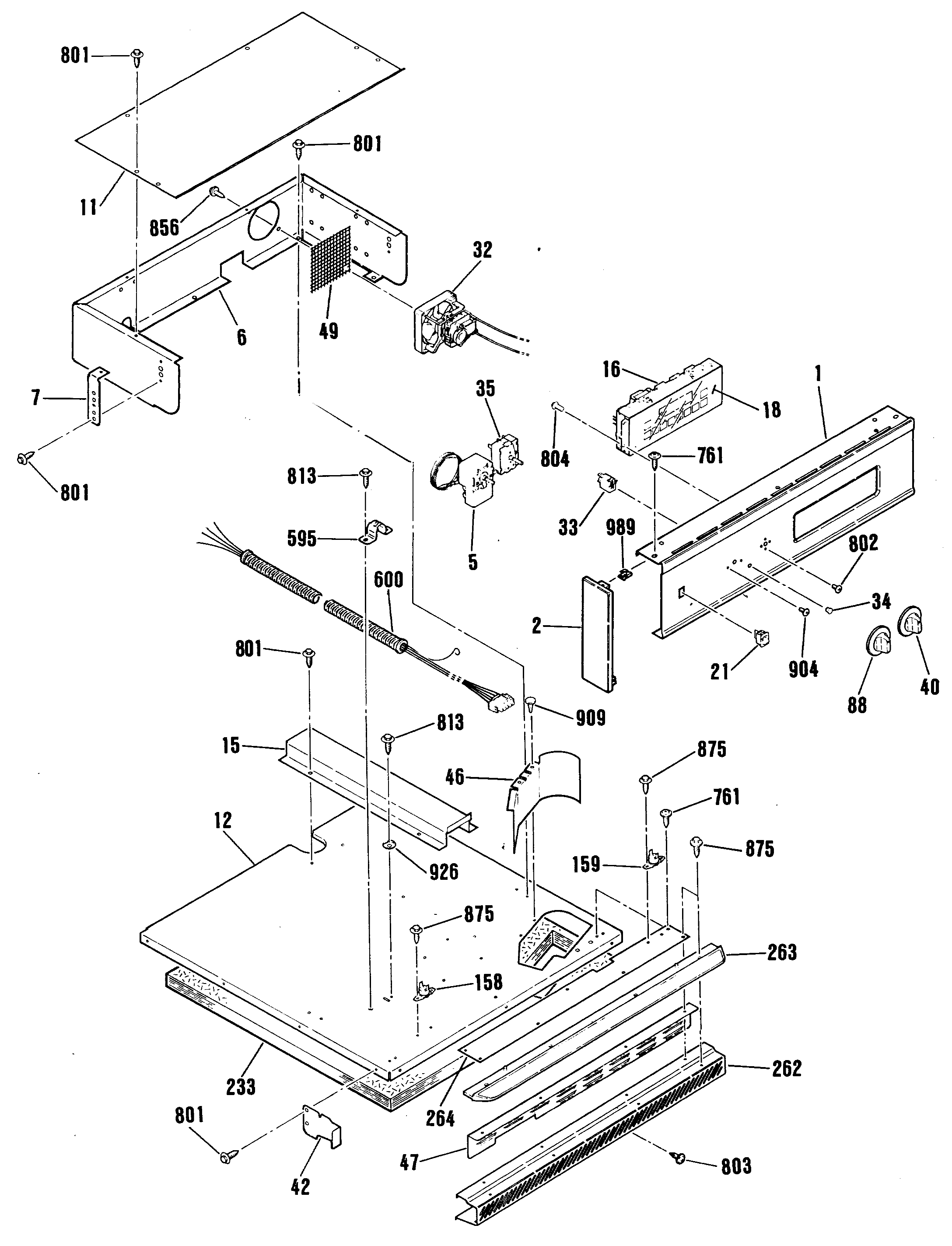

Position	Product
1	GEN WB36K5146
2	GEN WB36K5129
2	GEN WB36K5128
4	GEN WB37K5017
5	THERMOSTAT
6	GEN WB37K5013
7	GEN WB02X9658
11	GEN WB37K5014
12	GEN WB63K5120
15	WB2X9665 GE Wire Cover
16	ERC II
18	GEN WB27K5030
21	WB24K5035 GE Oven Rocker Switch
32	FAN ASM-LOWER
33	WB25T10039 GE Oven Light Indicator
34	LENS
35	GEN WB24K5040
40	GEN WB03K5052
42	GEN WB34K5102
42	GEN WB34K5101
46	GEN WB34K5099
47	WB38K5029 GE Oven Vent Barrier
49	GEN WB07X5016
88	GEN WB03K5045
158	LIMIT SWITCH-TO CAB TOP
159	WB24K5085 GE Oven Limit Switch
233	GEN WB35K5066
262	GEN WB07K5122
262	GEN WB07K5120
263	TRIM CENTER I-BROW (BLK)
263	GEN WB07K5109
264	GEN WB07K5121
595	WB2K5126 GE Oven Condenser Clamp
600	WB18X32567 GE Conduit Wire Assembly
761	WB1K5029 GE Oven Screw
801	WB1M1 GE Oven Screw
802	GEN WB01K5123
803	SCREW
804	WB1X681 GE Oven Screw
813	WB1X1261 GE Oven Screw
856	WB1X1293 GE Oven Screw
875	WB1X536 GE Oven Screw
904	GEN WB01X5550
909	WB1X1173 GE Rivet
926	GROUND WASHER
989	WB1K5209 GE Oven Clip
999	MINI MANUAL/WIRE DIAGRAM
999	GEN 31-0974
999	GEN WB18K5210
999	GEN 49-8358
999	GEN WB18K5344
999	GEN WB18K5454
