JRP24GP3BG 1

JRP24GP3BG 1

Written by

in

JRP24GP3BG 1

Products

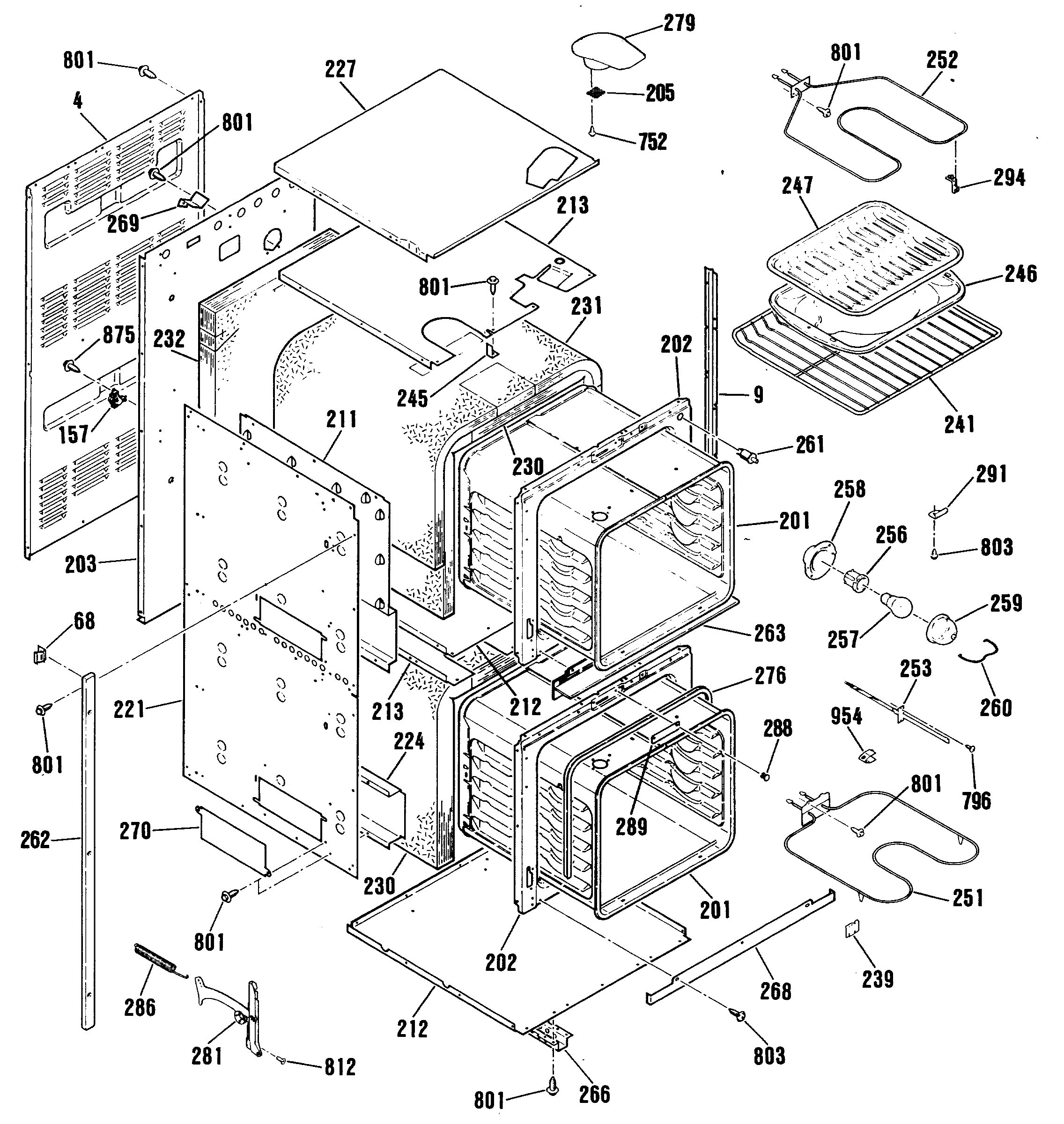

PositionProduct
9RACEWAY-UPPER
68GEN WB02M0040
157WB24K5046 GE Oven Limit Switch
201GEN WB63K5115
202GEN WB63K5157
202UNKNOWN
203GEN WB63K5113
205WB6K5026 GE Oven Smoke El Screw
211GEN WB02K5180
212RETAINER OV BTM INS
212GEN WB63K5111
213GEN WB02K5174
213GEN WB02K5256
221WB63K5112 GE Oven Side Cabinet
224WB2K5172 GE Door Spring Retainer
227GEN WB02K5173
230WB35K5041 GE Inner Wrap Insulation
230WB35K5048 GE Inner Wrapper Insulation
231WB35K5068 GE Insulation Wrapper
232INSULATION-BACK/BTM-LO
232WB35K5057 GE Upper Back/Bottom Insulation
239WB2X9189 GE Oven Plug – REC
241WB48T10094 GE Oven Rack
245GEN WB02M0030
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5013 GE Oven Bake Element Range
252WB44K5009 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256WB8X303 GE Oven Lamp Holder
257GEN BUY-LOCAL
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261GEN WB24K5061
262GEN WB07K5120
262GEN WB07K5122
263TRIM CENTER I-BROW (BLK)
263GEN WB07K5109
266GEN WB02X9634
268LOWER FRONT FRAME TRIM
269WB2K5164 GE Light Cup Support
270GEN WB02X9642
276GEN WB32K5019
279VENT BOX ASM-BLACK
281GEN WB14K5006
281GEN WB14K5007
286GEN WB09K5018
286UNKNOWN
288GEN WB03K5043
289WB34K5068 GE Latch Opening Cover
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
752GEN WB00X6542
796WB1K5116 GE Oven Screw
801WB1M1 GE Oven Screw
803SCREW
812WB1K5191 GE Oven Zinc FL Screw
875WB1X536 GE Oven Screw
954GEN WB01K5133
