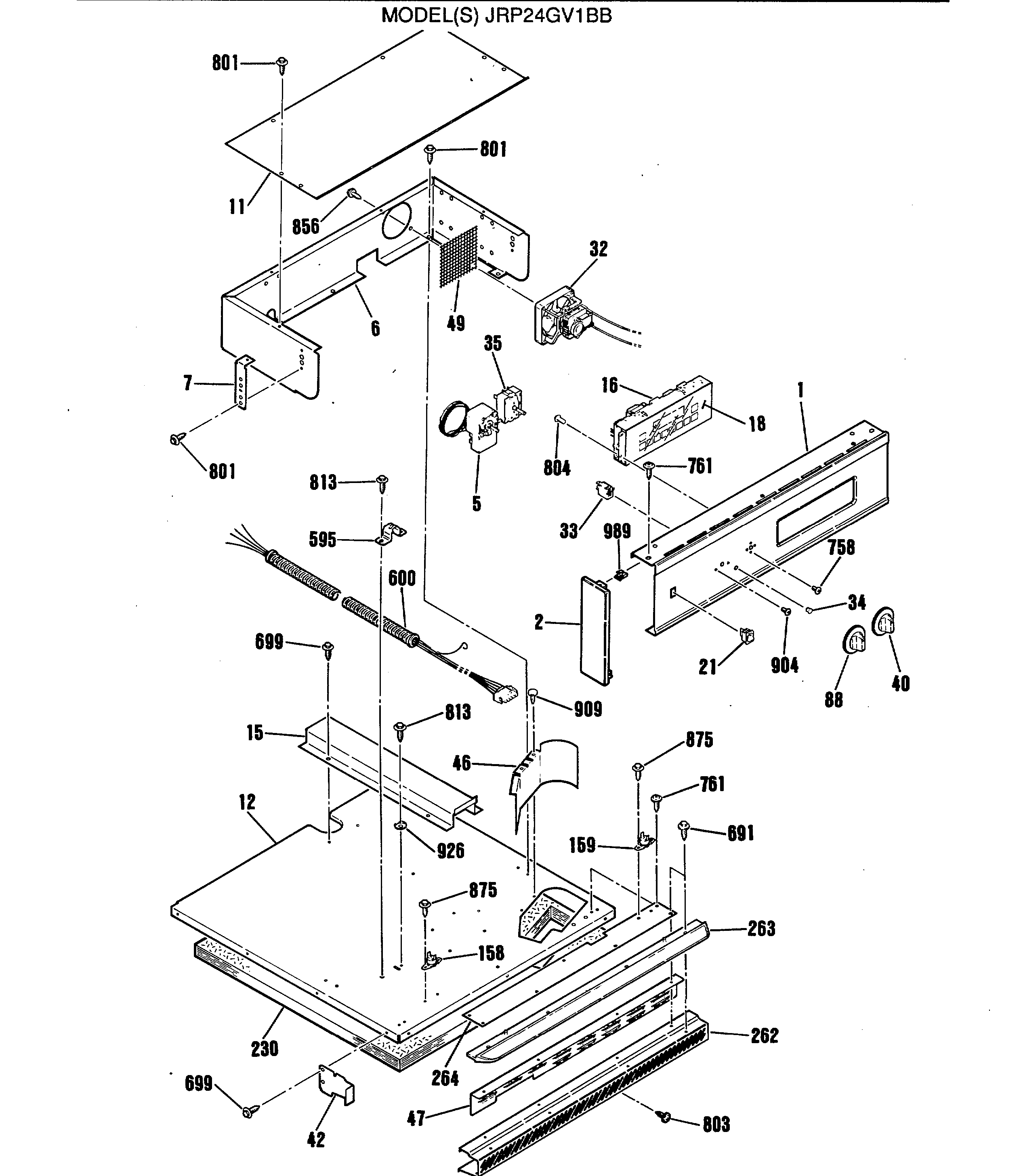

JRP24GV1BB 2

Written by

JRP24GV1BB 2

Products

Position	Product
1	GEN WB36K5571
2	GEN WB36K5129
2	GEN WB36K5128
5	THERMOSTAT
6	GEN WB37K5013
7	GEN WB02X9658
11	GEN WB37K5014
12	GEN WB63K5120
15	WB2X9665 GE Wire Cover
16	GEN WB27K5140
18	GEN WB27K5218
21	WB24K5035 GE Oven Rocker Switch
32	FAN ASM-LOWER
33	WB25T10039 GE Oven Light Indicator
34	LENS
35	GEN WB24K5040
40	GEN WB03K5254
42	GEN WB34K5101
42	GEN WB34K5102
46	GEN WB34K5099
47	WB38K5029 GE Oven Vent Barrier
49	GEN WB07X5016
88	GEN WB03K5253
158	LIMIT SWITCH-TO CAB TOP
159	WB24K5085 GE Oven Limit Switch
230	WB35K5048 GE Inner Wrapper Insulation
230	WB35K5041 GE Inner Wrap Insulation
233	GEN WB35K5066
262	GEN WB06K5028
262	WB7K5263 GE Vertical Side Trim
263	GEN WB07K5109
263	TRIM CENTER I-BROW (BLK)
264	GEN WB07K5121
595	WB2K5126 GE Oven Condenser Clamp
600	WB18X32567 GE Conduit Wire Assembly
691	WB1K5177 GE Oven Trim Screw
699	WB1M1 GE Oven Screw
758	WD2X323D GE Dishwasher Screw Package
760	WB1X536 GE Oven Screw
761	WB1K5029 GE Oven Screw
803	SCREW
804	WB1X681 GE Oven Screw
810	WB1X1130 GE Oven Screw 10-32
813	WB1X1261 GE Oven Screw
856	WB1X1293 GE Oven Screw
875	WH2X930 GE Screw
904	SCR 8/32 TF FLR 5/16 S
909	WB1X1173 GE Rivet
926	GROUND WASHER
989	WB1K5209 GE Oven Clip
999	MINI MANUAL/WIRE DIAGRAM
999	GEN 31-10118
999	GEN WB18K5210
999	GEN 49-8601
999	GEN WB18K5344
999	GEN WB18K5454
