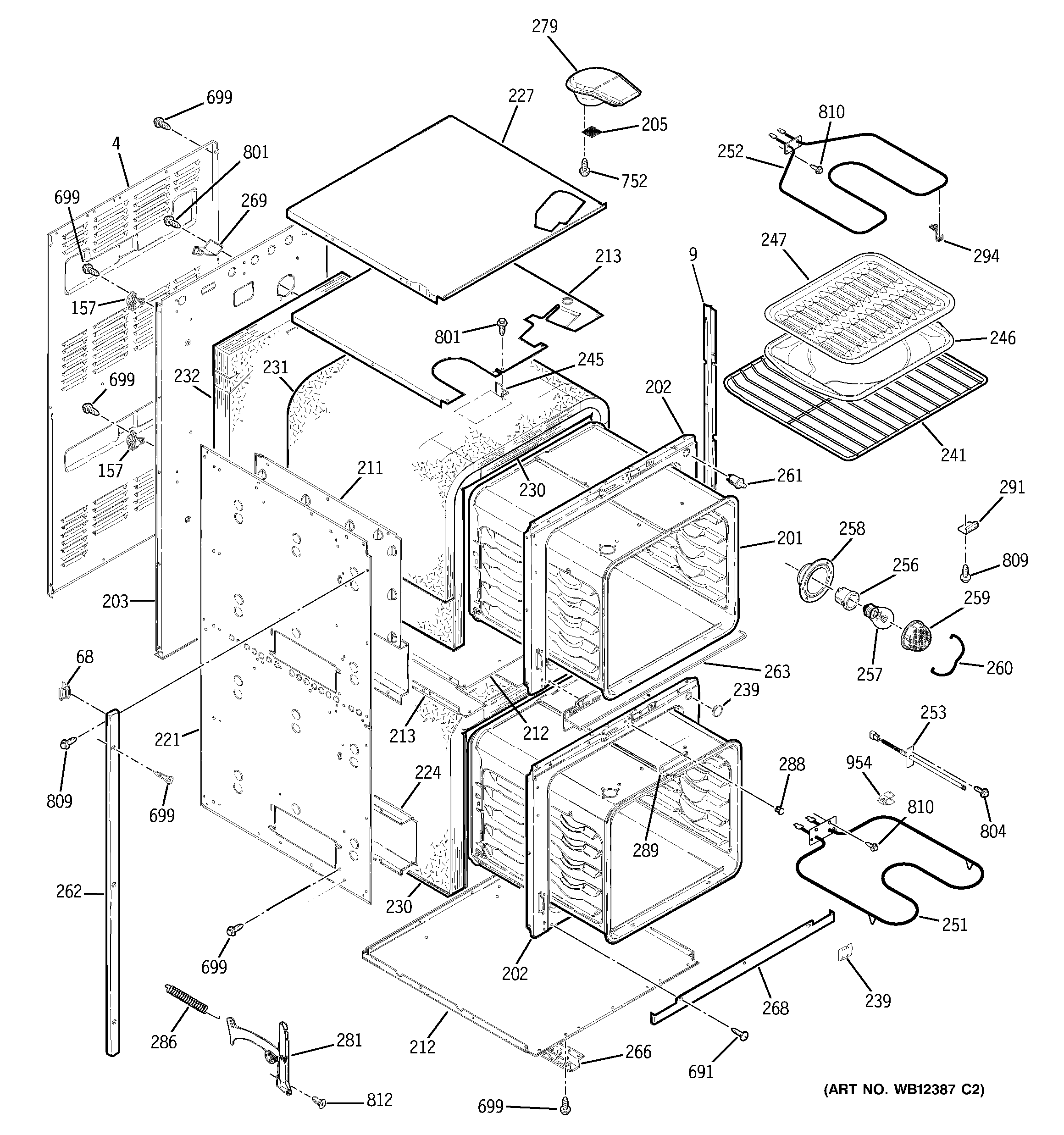

JRP28BJ1BB BODY PARTS

JRP28BJ1BB BODY PARTS

Written by

in

JRP28BJ1BB BODY PARTS

Products

PositionProduct
4GEN WB37K5017
9RACEWAY-UPPER
68SPACER FRT TRIM (BLK)
157WB24K5098 GE Oven Limit Switch
157WB24K5046 GE Oven Limit Switch
201WB63T10012 GE Oven Body
202GEN WB63T10013
203GEN WB63K5113
205WB6K5026 GE Oven Smoke El Screw
211GEN WB02K5180
212RETAINER OV BTM INS
212GEN WB63K5116
213GEN WB02K5256
213GEN WB02K5174
221WB63K5112 GE Oven Side Cabinet
224WB2K5172 GE Door Spring Retainer
227GEN WB02K5173
230WB35K5048 GE Inner Wrapper Insulation
230WB35K5041 GE Inner Wrap Insulation
231WB35K5068 GE Insulation Wrapper
232WB35K5057 GE Upper Back/Bottom Insulation
232INSULATION-BACK/BTM-LO
239PLUG ROUND
239WB2X9189 GE Oven Plug – REC
241WB48T10094 GE Oven Rack
245GEN WB02M0030
246WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5013 GE Oven Bake Element Range
251WB44T10007 GE Oven Bake Element
252WB44K5009 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256WB8X303 GE Oven Lamp Holder
257GEN BUY-LOCAL
258WB02T10037 GE Oven Light Cup
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261GEN WB24T10065
262WB7K5263 GE Vertical Side Trim
262WB7K5491 GE Trim Vent Black
263TRIM CENTER I-BROW (BLK)
266GEN WB02X9634
268WB07T10415 GE Oven Trim Lower Front
269WB2K5164 GE Light Cup Support
279VENT BOX ASM-BLACK
281WB10T10060 GE Oven Right Door Hinge
281WB10T10061 GE Oven Left Door Hinge
286SPRING OVEN DR UPPER
286WB09T10008 GE Oven Lower Door Spring
288GEN WB03K5043
289WB34K5068 GE Latch Opening Cover
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
691WB1K5162 GE Oven Black Screw
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
804WB1X681 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
812WB1K5191 GE Oven Zinc FL Screw
954WB02K10073 GE Oven Clip Capillary
