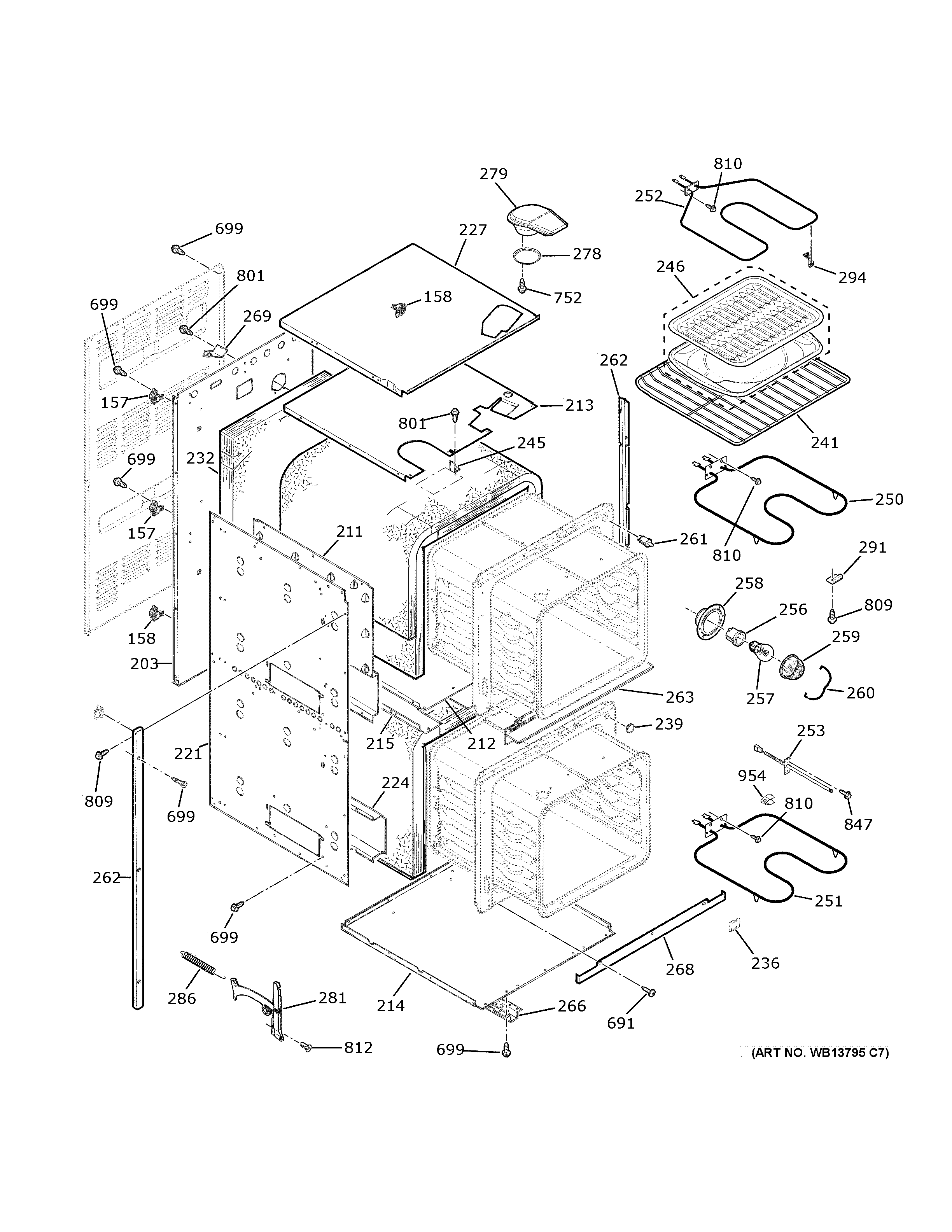

JRP28BJ5BB BODY PARTS

JRP28BJ5BB BODY PARTS

Written by

in

JRP28BJ5BB BODY PARTS

Products

PositionProduct
157WB24K5098 GE Oven Limit Switch
158WB24K5085 GE Oven Limit Switch
203GEN WB63K5113
211GEN WB02K5180
212RETAINER OV BTM INS
213GEN WB02K5256
214GEN WB63K5116
215GEN WB02K5174
221WB63K5112 GE Oven Side Cabinet
224WB2K5172 GE Door Spring Retainer
227GEN WB02K5173
232WB35K5057 GE Upper Back/Bottom Insulation
232INSULATION-BACK/BTM-LO
236WB2X9189 GE Oven Plug – REC
239PLUG ROUND
241WB48T10094 GE Oven Rack
245GEN WB02M0030
246WB48X10056 GE Broil Pan Set, Large Porcelain
250UPPER BAKE ELEMENT 2650W
251BAKE ELEMENT 2000W
252BROIL ELEMENT 3400W
253SENSOR
256WB8X303 GE Oven Lamp Holder
257RANGE ONLY 40W 120V APPL BULB
258WB02T10037 GE Oven Light Cup
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
261WB24T10160 GE Oven High AMP SPDT Switch
262WB7K5263 GE Vertical Side Trim
263TRIM CENTER I-BROW (BLK)
266GEN WB02X9634
268WB07T10415 GE Oven Trim Lower Front
269WB2K5164 GE Light Cup Support
278WB02X29256 GE Smoke Eliminator Screen
279VENT BOX ASM-BLACK
281WB10T10060 GE Oven Right Door Hinge
281WB10T10061 GE Oven Left Door Hinge
286WB09T10008 GE Oven Lower Door Spring
286SPRING OVEN DR UPPER
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
691WB1K5162 GE Oven Black Screw
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
801WB01M10002 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
812SCREW FLAT ZINC TC 10-32X.625
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
954WB02K10073 GE Oven Clip Capillary
