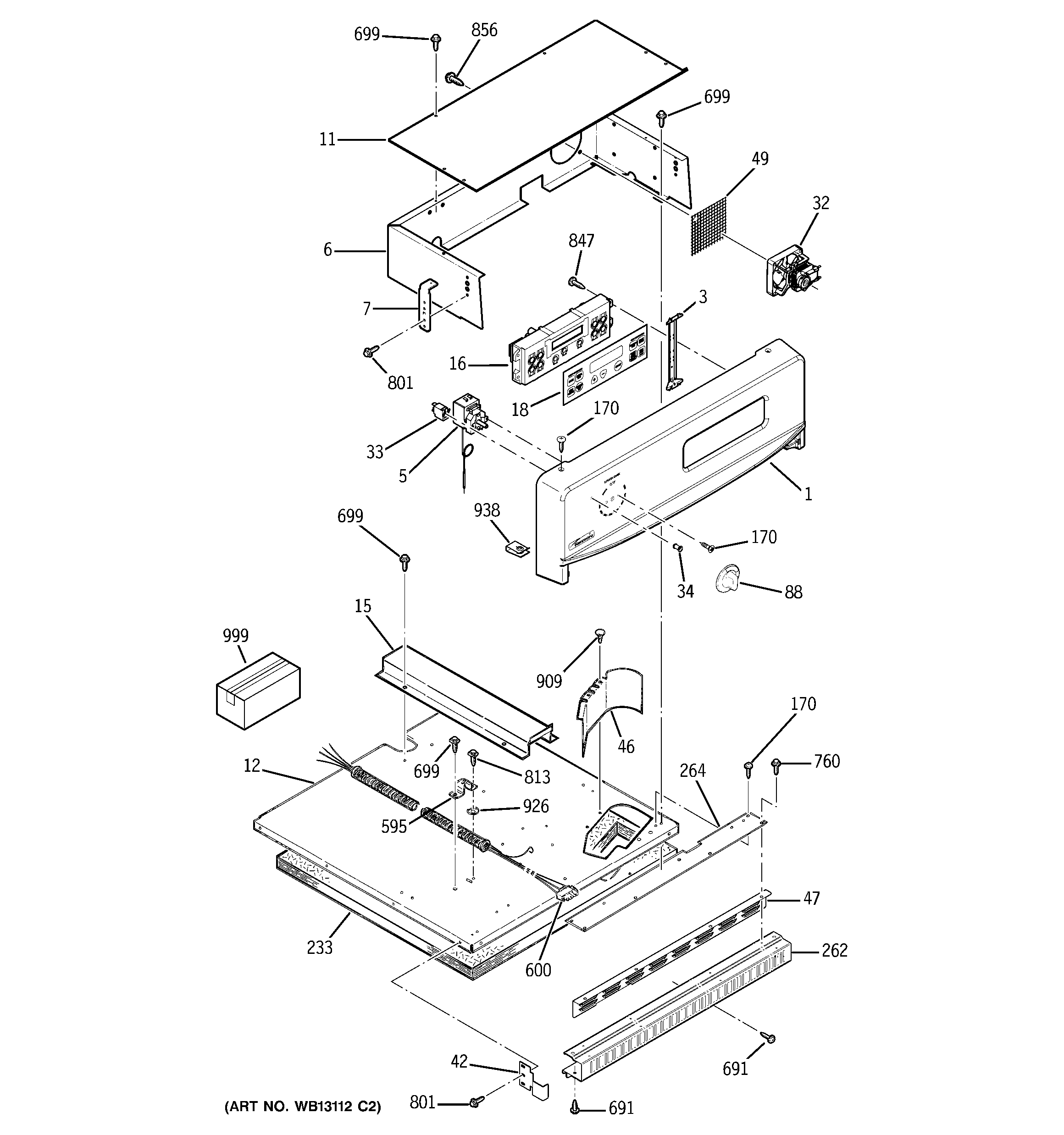

JRP28SK1SS CONTROL PANEL

Products

Position	Product
1	WB36T10758 GE Oven Control Panel DWO (SCR-BLK)
3	WB02T10250 GE Oven Control Mounting Bracket
5	WB20T10013 GE Oven Thermostat
6	WB37K5041 GE Control Housing
7	WB2K5406 GE Bracket
11	WB37K5040 GE Top Control Housing
12	GEN WB63K5120
15	WB2X9665 GE Wire Cover
16	ERC3B2K5 OVEN CONTROL
18	WB27T10587 GE Oven Graphics Faceplate Assembly
32	WB26K5072 GE Oven Fan Assembly
33	WB25T10039 GE Oven Light Indicator
34	WB25T10043 GE Oven Lens
42	GEN WB34K5249
46	GEN WB34K5099
47	WB38K5058 GE Vent Barrier
49	GEN WB34T10066
88	GEN WB03T10057
170	WB1K60 GE Screw 8-18
233	GEN WB35K5066
262	WB7K5491 GE Trim Vent Black
262	WB7K5263 GE Vertical Side Trim
264	GEN WB07K5121
595	WB2K5126 GE Oven Condenser Clamp
600	WB18X32567 GE Conduit Wire Assembly
691	WB1K5162 GE Oven Black Screw
699	WB1M1 GE Oven Screw
760	WB1X536 GE Oven Screw
813	WB1X1261 GE Oven Screw
847	WB1X1118 GE Oven Screw 6-32T
856	WB1X1293 GE Oven Screw
909	WB1X1173 GE Rivet
926	GROUND WASHER
938	WB1K5209 GE Oven Clip
999	WB18T10305 GE Door Switch Wire Harness
999	WB18T10334 GE Oven Harness Wire SNS/Lock
999	GEN 31-14204
999	GEN 49-80346
