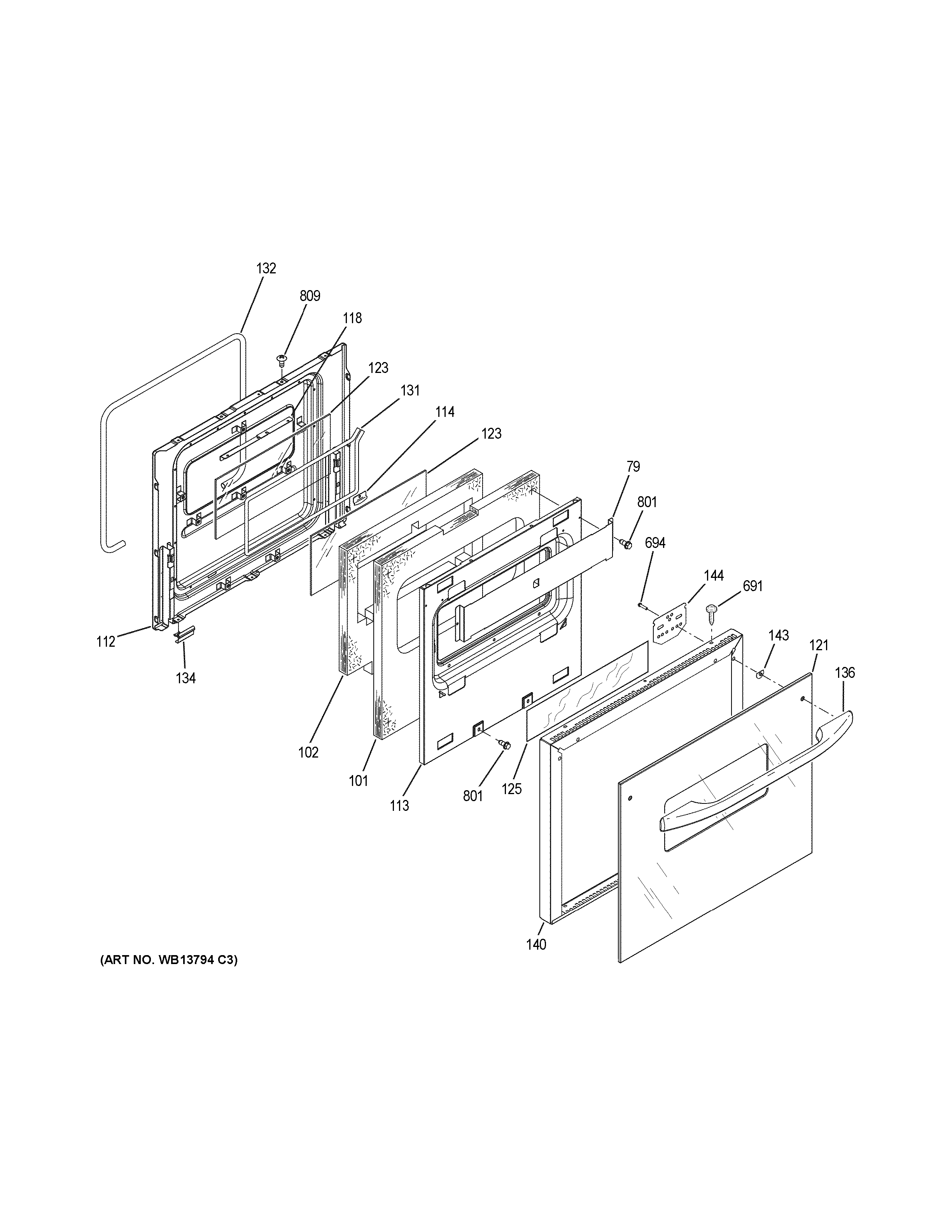

JRP28SK5SS UPPER DOOR

Products

Position	Product
79	WB34K5077 GE Oven Door Baffle
101	WB35K5054 GE Oven Door Insulation
102	WB35T10101 GE Insulation Assembly
112	WB63X26288 GE Oven Door Liner
113	WB2K5159 GE Oven Door Insulation
114	GEN WB02M0001
118	OV DR LINING STIFFENER
121	WB56T10232 GE Oven Panel Glass & Tape Assembly
123	WB57T10315 GE Oven Inner Door Glass
125	WB34X26884 GE Oven Heat Reflector
131	WB2X9168 GE Oven Seal
132	WB35X26289 GE Oven Door Gasket
134	WB02T10117 GE Range Bottom Trim Clip
136	WB15T10145 GE Oven Handle 24
140	WB56T10162 GE Oven Black Door Frame
143	WB2K5147 GE Oven Spacer
144	WB2K5395 GE Oven Reinforcement Plate
691	WB1K5162 GE Oven Black Screw
694	WB1K5072 GE Oven Screw
801	WB01M10002 GE Oven Screw
809	WB1X1137 GE Oven Screw
