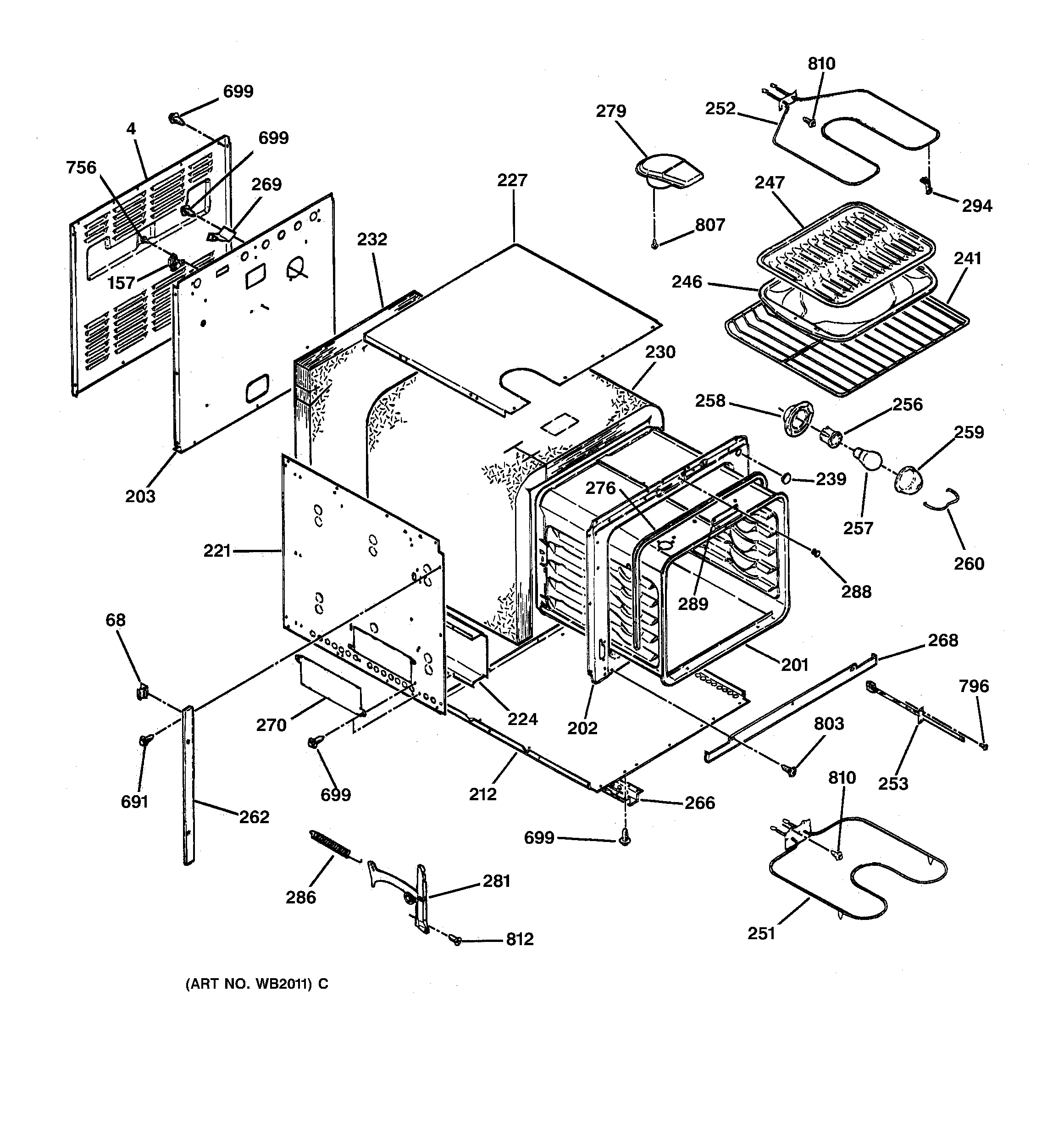

JRS04BW1BB BODY PARTS

JRS04BW1BB BODY PARTS

Written by

in

JRS04BW1BB BODY PARTS

Products

PositionProduct
4WB63M45 GE Cabinet Back
68GEN WB02M0040
157WB24K5046 GE Oven Limit Switch
201GEN WB63K5115
202GEN WB63K5157
203GEN WB63K5118
212GEN WB63K5116
221GEN WB63K5117
224WB2K5172 GE Door Spring Retainer
227GEN WB02K5176
230WB35K5041 GE Inner Wrap Insulation
232INSULATION-BACK/BTM-LO
239PLUG ROUND
241WB48T10094 GE Oven Rack
247WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5013 GE Oven Bake Element Range
252WB44K5009 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256WB8X303 GE Oven Lamp Holder
257GEN BUY-LOCAL
258GEN WB02X7693
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
262WB7K5491 GE Trim Vent Black
262VERTICAL SIDE TRIM-BLK
266GEN WB02X9634
268LOWER FRONT FRAME TRIM
269WB2K5164 GE Light Cup Support
270GEN WB02X9642
276GEN WB32K5050
279VENT BOX ASM-BLACK
281GEN WB14K5006
281GEN WB14K5007
286GEN WB09K5018
288GEN WB03K5043
289WB34K5068 GE Latch Opening Cover
294WB2X9719 GE Oven Support Bracket Clip
691WB1K5177 GE Oven Trim Screw
699WB1M1 GE Oven Screw
756WB1X536 GE Oven Screw
796WB1K5116 GE Oven Screw
803WB1K5162 GE Oven Black Screw
807WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
810WB1X1130 GE Oven Screw 10-32
812WB1K5191 GE Oven Zinc FL Screw
