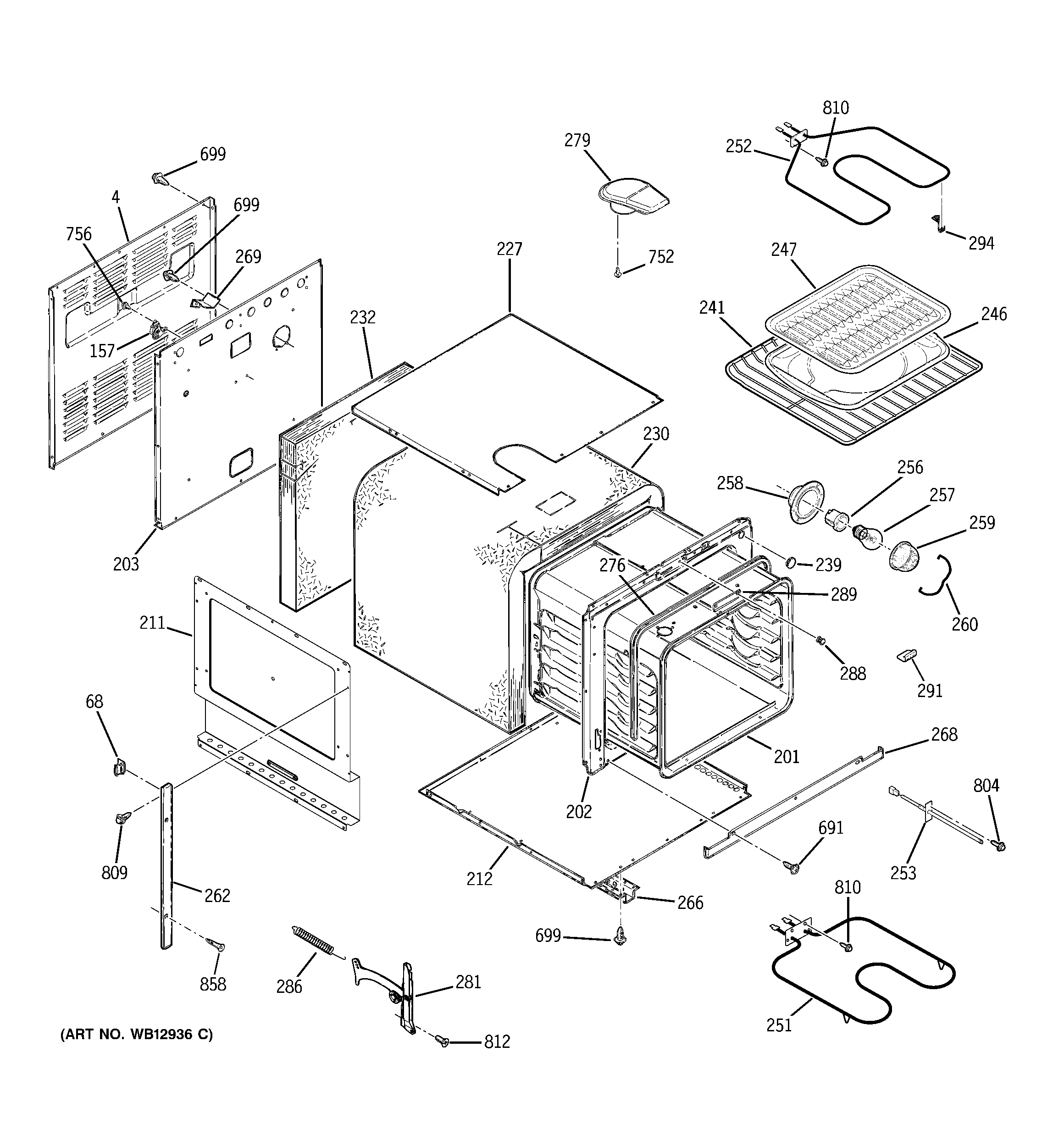

JRS04BW6BB BODY PARTS

JRS04BW6BB BODY PARTS

Written by

in

JRS04BW6BB BODY PARTS

Products

PositionProduct
4WB63M45 GE Cabinet Back
68SPACER FRT TRIM (BLK)
157WB24K5046 GE Oven Limit Switch
201WB63T10012 GE Oven Body
202GEN WB63T10013
203BACK MAIN
211RETAINER INSLN SDE
212GEN WB63K5116
227GEN WB02K5176
230WB35K5041 GE Inner Wrap Insulation
232INSULATION-BACK/BTM-LO
239PLUG ROUND
241WB48T10094 GE Oven Rack
246WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5013 GE Oven Bake Element Range
252WB44K5009 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
256WB8X303 GE Oven Lamp Holder
257GEN BUY-LOCAL
258WB02T10037 GE Oven Light Cup
259WB36X192 GE Oven Light Cover
260GEN WB02X7694
262WB7K5491 GE Trim Vent Black
262WB07T10370 GE Microwave Trim
266GEN WB02X9634
268WB07T10415 GE Oven Trim Lower Front
269WB2K5164 GE Light Cup Support
276GEN WB32K5050
279VENT BOX ASM-BLACK
281GEN WB14K5007
281GEN WB14K5006
286GEN WB09K5018
288GEN WB03K5043
289WB34K5068 GE Latch Opening Cover
291GEN WB02X9152
294WB2X9719 GE Oven Support Bracket Clip
691WB1K5177 GE Oven Trim Screw
691WB1K5162 GE Oven Black Screw
699WB1M1 GE Oven Screw
752WB1K5200 GE Oven Screw 340531
756WB1X536 GE Oven Screw
804WB1X681 GE Oven Screw
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
812WB1K5191 GE Oven Zinc FL Screw
