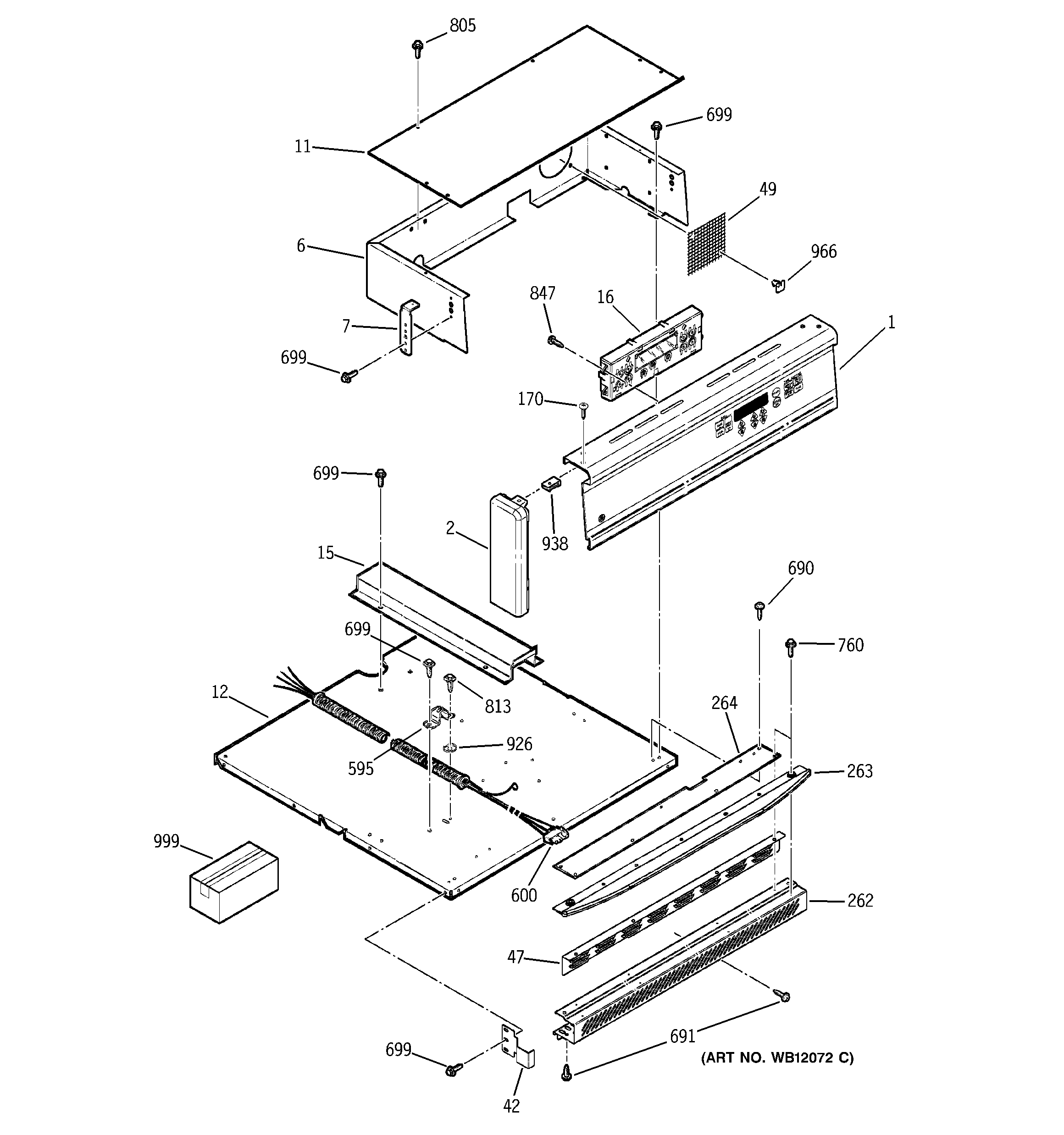

JRS04BW6BB CONTROL PANEL

JRS04BW6BB CONTROL PANEL

Written by

in

JRS04BW6BB CONTROL PANEL

Products

PositionProduct
1GEN WB36T10544
2GEN WB36T10065
2GEN WB36T10064
6WB37K5041 GE Control Housing
7WB2K5406 GE Bracket
11WB37K5040 GE Top Control Housing
12GEN WB63K5120
15WB2X9665 GE Wire Cover
16GEN WB27T10478
42GEN WB34K5249
47WB38K5058 GE Vent Barrier
49GEN WB34T10066
170WB1K60 GE Screw 8-18
262WB07T10370 GE Microwave Trim
262WB7K5491 GE Trim Vent Black
263I-BROW TRIM-BLK
264GEN WB07K5121
595WB2K5126 GE Oven Condenser Clamp
600GEN WB18K5364
690WB1K5167 GE Screw 8-18 X 3/8"
691WB1K5177 GE Oven Trim Screw
691WB1K5162 GE Oven Black Screw
699WB1M1 GE Oven Screw
760WB1X536 GE Oven Screw
805GEN WB01X1113
813WB1X1261 GE Oven Screw
847WB1X1118 GE Oven Screw 6-32T
926GROUND WASHER
938WB1K5209 GE Oven Clip
966WB2X9573 GE Oven Clip
999GEN 49-8910
999GEN WB18T10287
