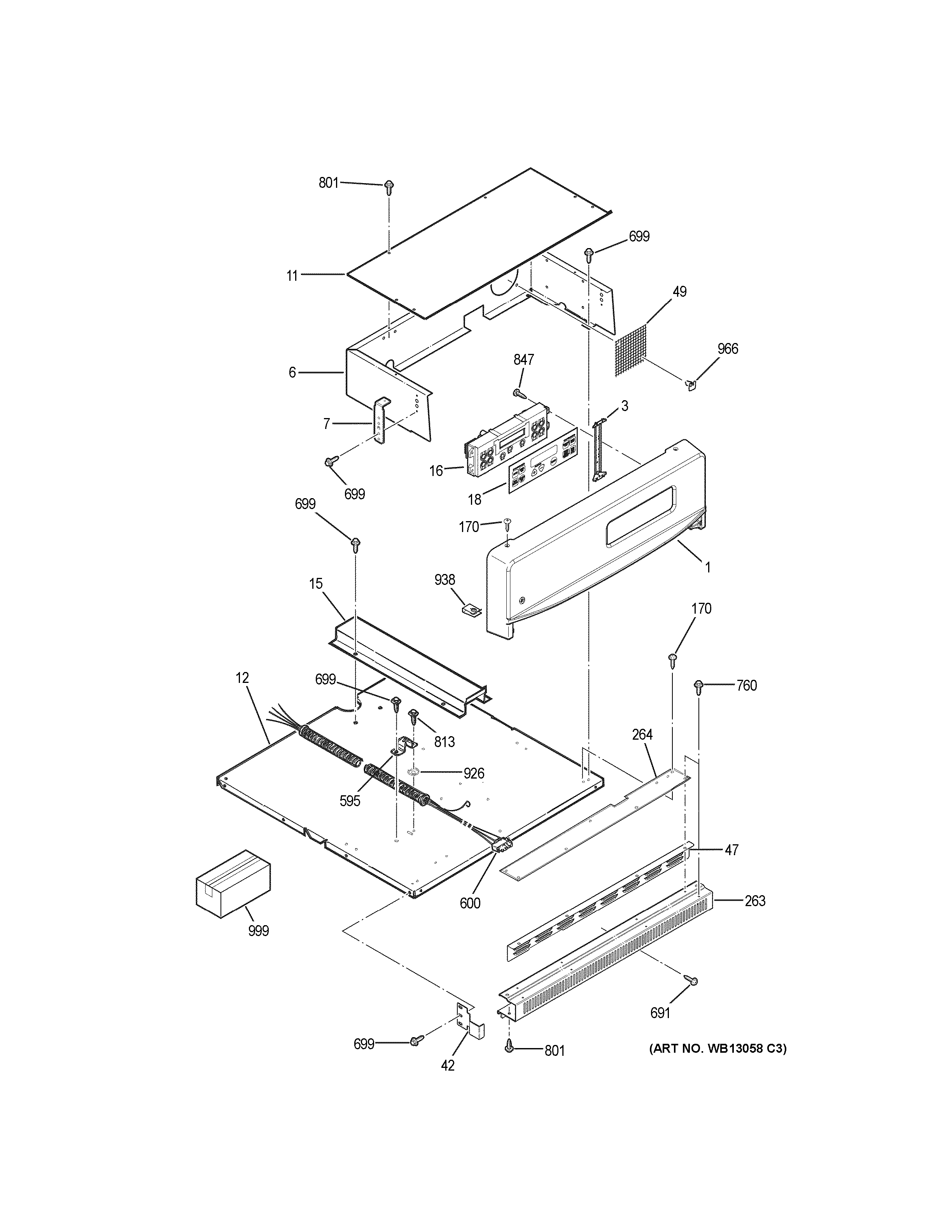

| 1 | LABEL WIRE DIAGRAM |
| 1 | WB36T10756 GE Oven Control Panel SWO (SCR-BLK) |
| 3 | WB02T10250 GE Oven Control Mounting Bracket |
| 6 | WB37K5041 GE Control Housing |
| 7 | WB2K5406 GE Bracket |
| 11 | WB37K5040 GE Top Control Housing |
| 12 | GEN WB63K5120 |
| 15 | WB2X9665 GE Wire Cover |
| 16 | WB27X27463 GE Oven ERC3B2K5 Control |
| 18 | WB27T10589 GE Oven Faceplate Graph D03 |
| 42 | GEN WB34K5249 |
| 47 | WB38K5058 GE Vent Barrier |
| 49 | WB02X34847 GE Oven Fan Screen Protector |
| 170 | WB1K60 GE Screw 8-18 |
| 263 | WB7K5491 GE Trim Vent Black |
| 264 | GEN WB07K5121 |
| 595 | WB2K5126 GE Oven Condenser Clamp |
| 600 | CONDUIT WIRE ASM |
| 691 | WB1K5162 GE Oven Black Screw |
| 699 | WB1M1 GE Oven Screw |
| 760 | WB1X536 GE Oven Screw |
| 801 | WB01M10002 GE Oven Screw |
| 813 | WB1X1261 GE Oven Screw |
| 847 | WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI |
| 926 | GROUND WASHER |
| 938 | WB1K5209 GE Oven Clip |
| 966 | WB2X9573 GE Oven Clip |
| 999 | PM OWNERS MANUAL |
| 999 | PM INSTALL INSTRUCTIONS |
| 999 | PM MANUAL MINI & WD ASM |
