JRSD209W 04 – FRESH FOOD COMPARTMENT
Written by
in

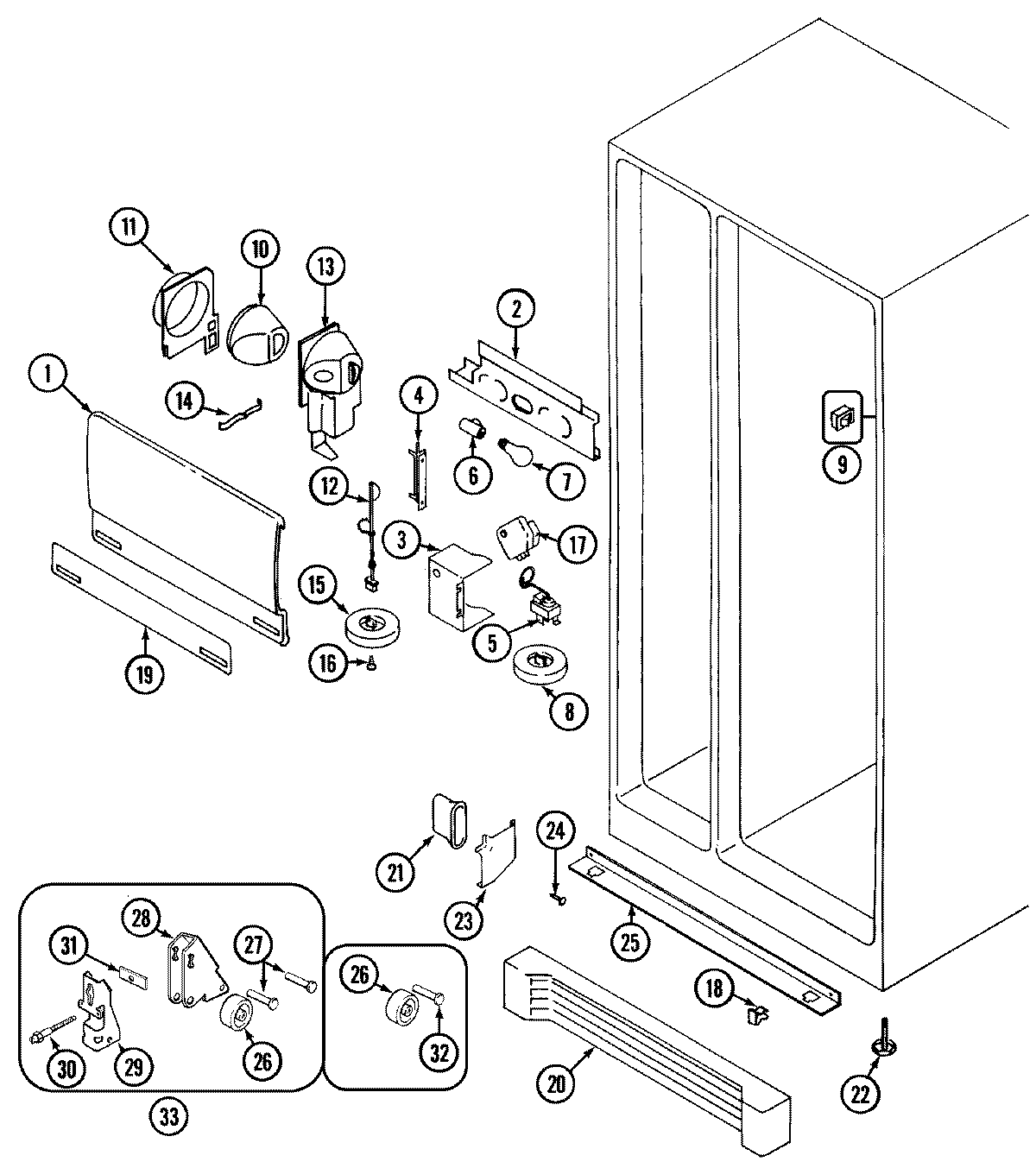

JRSD209W 04 – FRESH FOOD COMPARTMENT
Products
Position
Product
1
MAY 61001384
2
MAY 67751-2
3
WP489478 Whirlpool Refrigerator Screw
3
MAY 70178-1
4
MAY 67125-1
5
MAY 401024-1
5
MAY 69694-3
6
MAY 29813-1
7
MAY 31956-1
8
MAY 67145-3
9
W11384469 Whirlpool Door Switch
10
MAY 58767-1
11
MAY 61001230
12
MAY 67355-1
13
MAY 400053-1
13
MAY 67354-1
14
MAY 52648-1
15
MAY 67145-4
16
MAY 400001-1
17
MAY 405007-1
17
WP68233-3 Whirlpool Refrigerator Defrost Timer
18
MAY 70285-1
19
MAY 61001385
20
MAY 70288-9
21
MAY 67684-1
22
W11117769 Whirlpool Refrigerator Leveler
23
MAY 69982-1
24
MAY 28013-2
25
MAY 65275-42
25
MAY 61001032
26
MAY 69812-1
27
MAY 64965-1
28
MAY 65275-1
28
MAY 67806-2
29
MAY 70230-1
30
MAY 61001126
31
MAY 59101-1
32
MAY 64965-3
33
MAY 61001108
←
