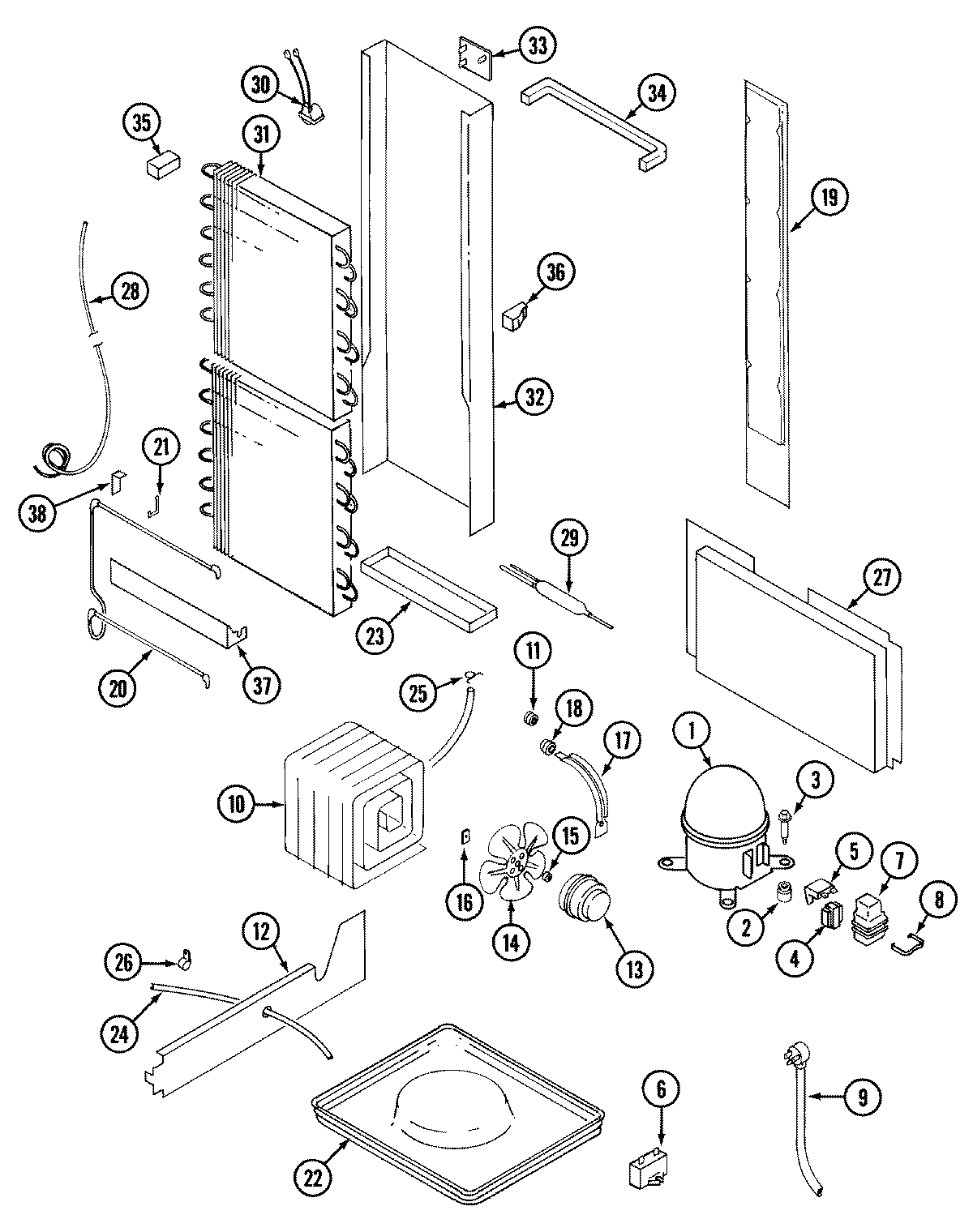

JRSD2250W 11 – UNIT COMPARTMENT & SYSTEM

JRSD2250W 11 – UNIT COMPARTMENT & SYSTEM

Products

PositionProduct
1MAY 12000058
1W10309995 Whirlpool Refrigerator Compressor
1MAY 69062-1
1MAY 61001017
2MAY 17245-4
3MAY 65275-9
4MAY 66588-5
4WP10097204 Whirlpool Start Relay
5MAY 61001785
5MAY 69105-8
6WP65889-4 Whirlpool Refrigerator Capacitor
6WPW10662129 Whirlpool Refrigerator Run Capacitor
7MAY 66589-2
8MAY 65886-1
9MAY 52890-3
10MAY 60408-2
10MAY 414001-1
10MAY 64998-1
11MAY 53351-1
12WP488729 Whirlpool Refrigerator Door Screw
12MAY 70362-1
13MAY 65275-33
13MAY 61001018
13833697 Whirlpool Condenser Fan Motor
14WP12587601 Whirlpool Refrigerator Condenser Blade
15MAY 69063-1
16WP486692 Whirlpool Refrigerator Nut
17MAY 69181-1
18MAY 56933-1
19MAY 66381-1
19MAY 70263-1
20MAY 61001139
21MAY 52067-1
23MAY 53523-1
24MAY 26911-18
25WP596669 Whirlpool Hose Clamp
26MAY 53516-5
27MAY 61001228
27MAY 65275-5
28MAY 26088-22
28MAY 65013-25
29MAY 13900
30MAY 52085-29
31MAY 52551-21
32MAY 68834-1
33MAY 55878-1
34MAY 66325-17
35MAY 65063-1
36MAY 65064-1
37MAY 29915-12
37WP489478 Whirlpool Refrigerator Screw
38MAY 52561-1
39MAY 61001229
40MAY 16000326
