JRSDE227B 08 – UNIT COMPARTMENT & SYSTEM
Written by
in

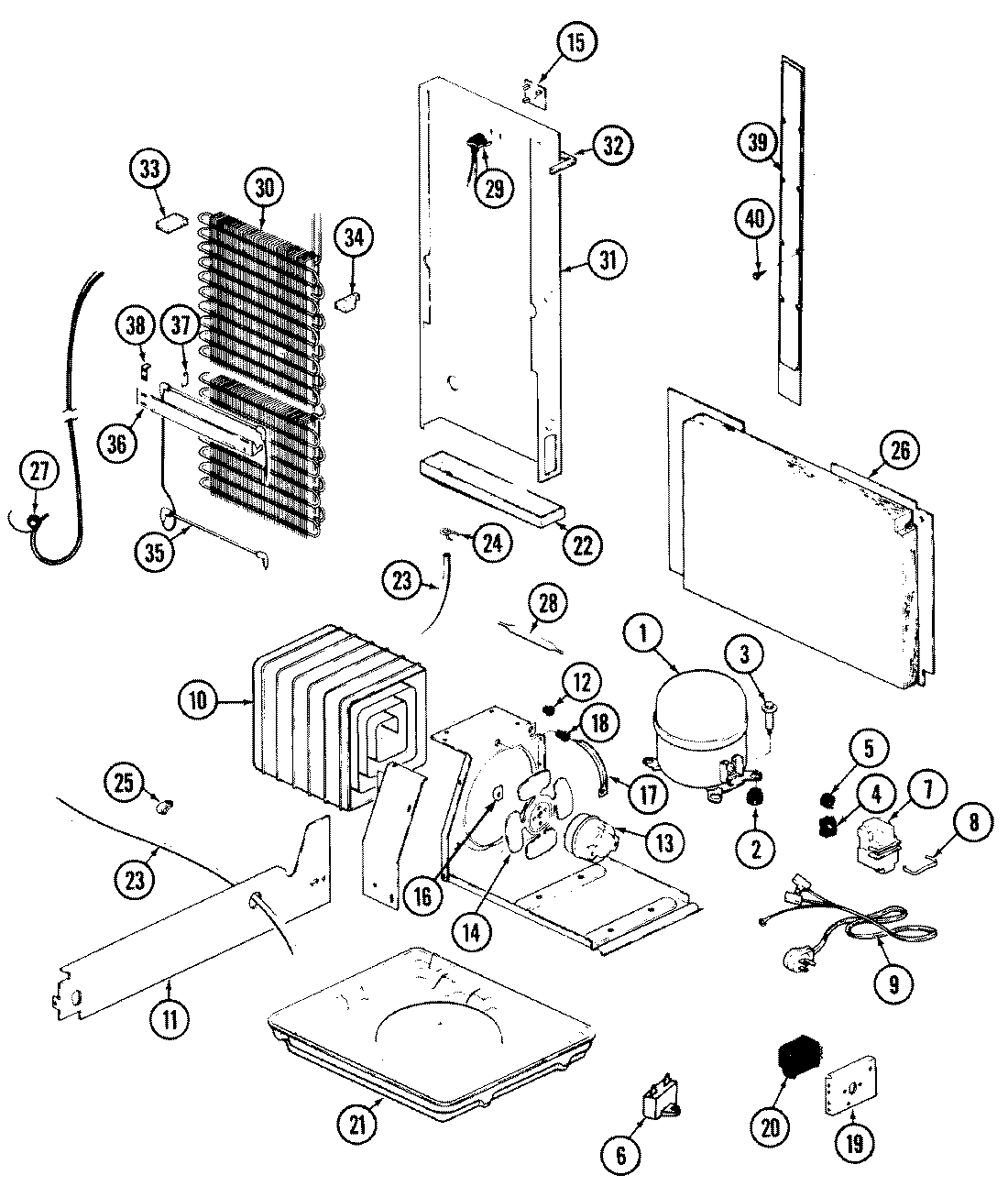

JRSDE227B 08 – UNIT COMPARTMENT & SYSTEM
Products
Position
Product
1
MAY 69062-1
1
MAY 12000058
2
MAY 17245-4
3
MAY 65275-9
4
MAY 66588-5
5
MAY 69105-8
6
WPW10662129 Whirlpool Refrigerator Run Capacitor
7
MAY 66589-2
8
MAY 65886-1
9
MAY 52890-3
10
MAY 414001-1
10
MAY 64998-1
10
MAY 60408-2
11
MAY 66494-1
12
MAY 53351-1
13
833697 Whirlpool Condenser Fan Motor
13
MAY 65275-33
14
WP12587601 Whirlpool Refrigerator Condenser Blade
15
MAY 55878-1
16
MAY 19914-0
17
MAY 69181-1
18
MAY 56933-1
19
MAY 29282-2
20
MAY 69543-6
20
MAY 405007-1
22
MAY 53523-1
23
MAY 26911-18
24
WP596669 Whirlpool Hose Clamp
25
MAY 53516-5
26
MAY 66339-3
26
WP488729 Whirlpool Refrigerator Door Screw
27
MAY 65013-16
27
MAY 26088-22
28
MAY 13900
29
MAY 52085-29
30
MAY 52551-21
31
MAY 68834-1
32
MAY 66325-17
33
MAY 65063-1
34
MAY 65064-1
35
MAY 69848-1
36
MAY 29915-12
37
MAY 52067-1
38
MAY 52561-1
39
MAY 69864-1
39
MAY 66381-1
40
WP489478 Whirlpool Refrigerator Screw
41
MAY 16000326
41
MAY 108324-2
←
