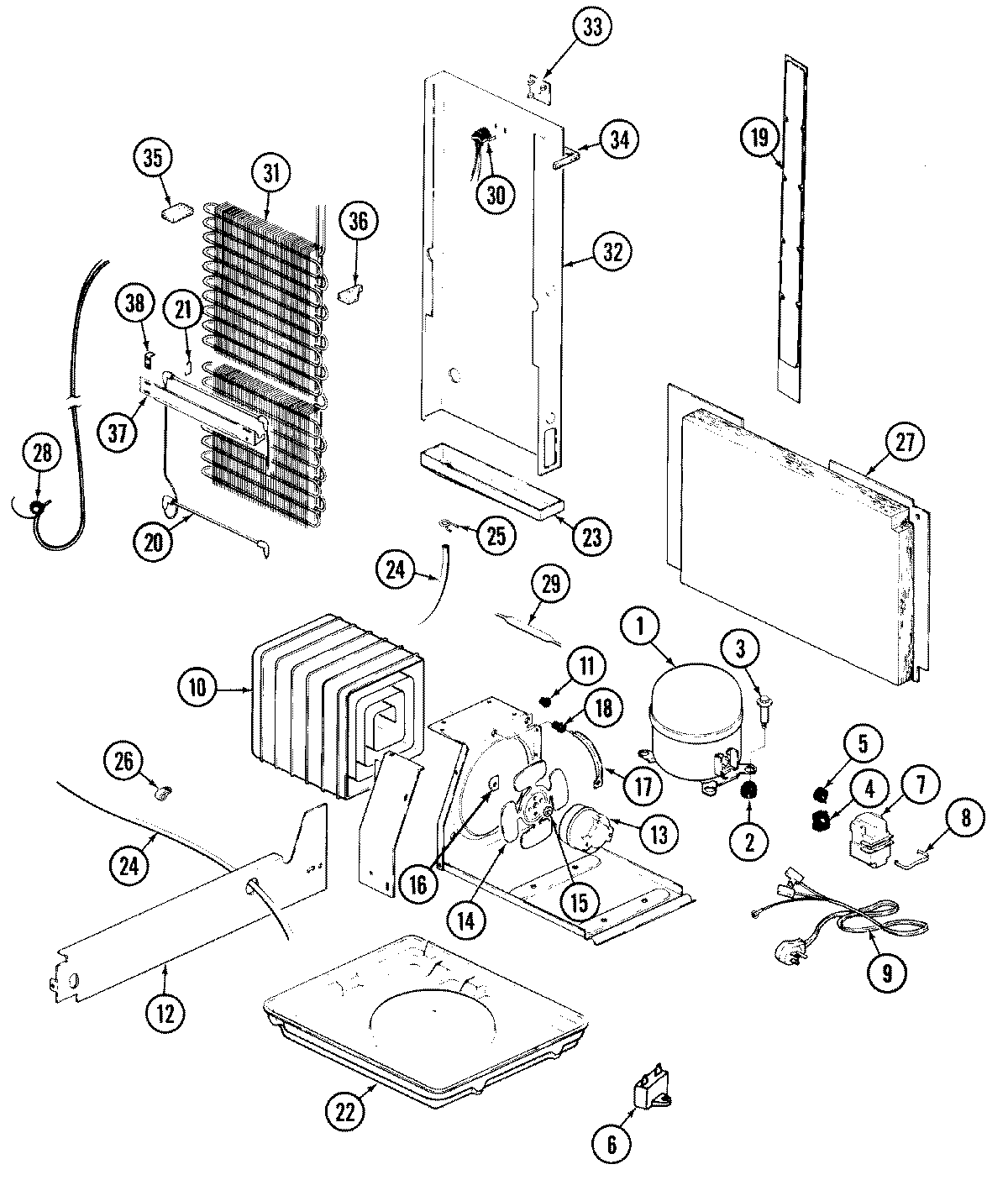

JRSDE248TW 09 – UNIT COMPARTMENT & SYSTEM

Products

Position	Product
1	MAY 12000058
1	MAY 69062-1
2	MAY 17245-4
3	MAY 65275-9
4	MAY 66588-5
5	MAY 69105-8
6	WPW10662129 Whirlpool Refrigerator Run Capacitor
7	MAY 66589-2
8	MAY 65886-1
9	MAY 52890-3
10	MAY 60408-2
10	MAY 414001-1
10	MAY 64998-1
11	MAY 53351-1
12	MAY 66494-1
13	MAY 65275-33
13	833697 Whirlpool Condenser Fan Motor
14	WP12587601 Whirlpool Refrigerator Condenser Blade
15	MAY 69063-1
16	WP486692 Whirlpool Refrigerator Nut
17	MAY 69181-1
18	MAY 56933-1
19	MAY 70263-1
19	MAY 66381-1
20	MAY 69848-2
21	MAY 52067-1
23	MAY 53523-2
24	MAY 26911-25
25	WP596669 Whirlpool Hose Clamp
26	MAY 53516-5
27	WP488729 Whirlpool Refrigerator Door Screw
27	MAY 66339-3
28	MAY 65013-24
28	MAY 26088-23
29	MAY 13900
30	MAY 52085-29
31	MAY 52551-22
32	MAY 68834-2
33	MAY 55878-1
34	MAY 66325-18
35	MAY 65063-1
36	MAY 65064-1
37	MAY 29915-13
37	WP489478 Whirlpool Refrigerator Screw
38	MAY 52561-1
39	MAY 16000326
39	MAY 109362-1
