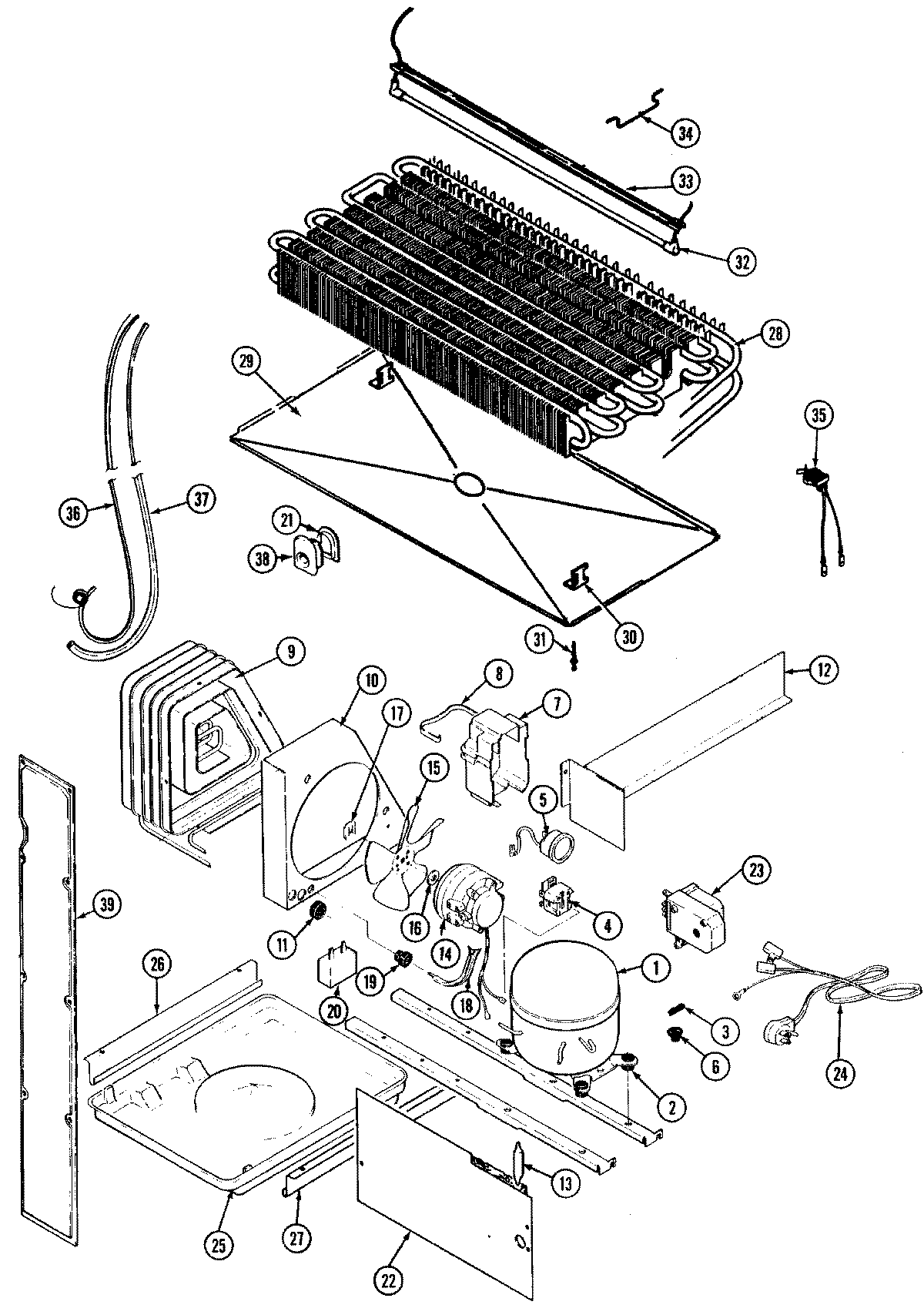

JRTE198A 07 – UNIT COMPARTMENT & SYSTEM
Written by
in
JRTE198A 07 – UNIT COMPARTMENT & SYSTEM
Products
Position
Product
1
MAY 12000056
2
MAY 17245-4
3
MAY 52778-2
4
WP10097202 Whirlpool Refrigerator Start Device
5
4388953 Whirlpool Overload Relay
6
MAY 52656-2
7
MAY 69754-1
8
MAY 59596-1
9
MAY 60434-3
9
MAY 60408-2
10
MAY 414001-1
10
MAY 66228-1
11
MAY 53351-1
12
MAY 66493-1
13
MAY 13900
14
MAY 65275-33
14
MAY 68445-3
15
WP12587601 Whirlpool Refrigerator Condenser Blade
16
MAY 69063-1
17
WP486692 Whirlpool Refrigerator Nut
18
MAY 69181-1
19
MAY 56933-1
20
WP65889-4 Whirlpool Refrigerator Capacitor
21
MAY 60069-1
22
MAY 66338-4
22
WP488729 Whirlpool Refrigerator Door Screw
23
WP68233-2 Whirlpool Refrigerator Defrost Timer
23
MAY 405007-1
24
MAY 52890-3
26
MAY 60555-1
27
WP489478 Whirlpool Refrigerator Screw
27
MAY 60555-2
28
MAY 69822-7
29
MAY 69118-2
30
MAY 60108-2
31
MAY 26397-9
32
WP60106-35 Whirlpool Defrost Heater Assembly
33
MAY 60109-5
34
MAY 68935-1
35
MAY 52085-33
36
MAY 65013-22
37
MAY 68186-1
37
MAY 66223-1
38
MAY 60068-1
39
MAY 70169-1
39
MAY 60110-2
39
MAY 60177-4
39
MAY 65275-50
40
MAY 109269-1
41
MAY 16000326
←
