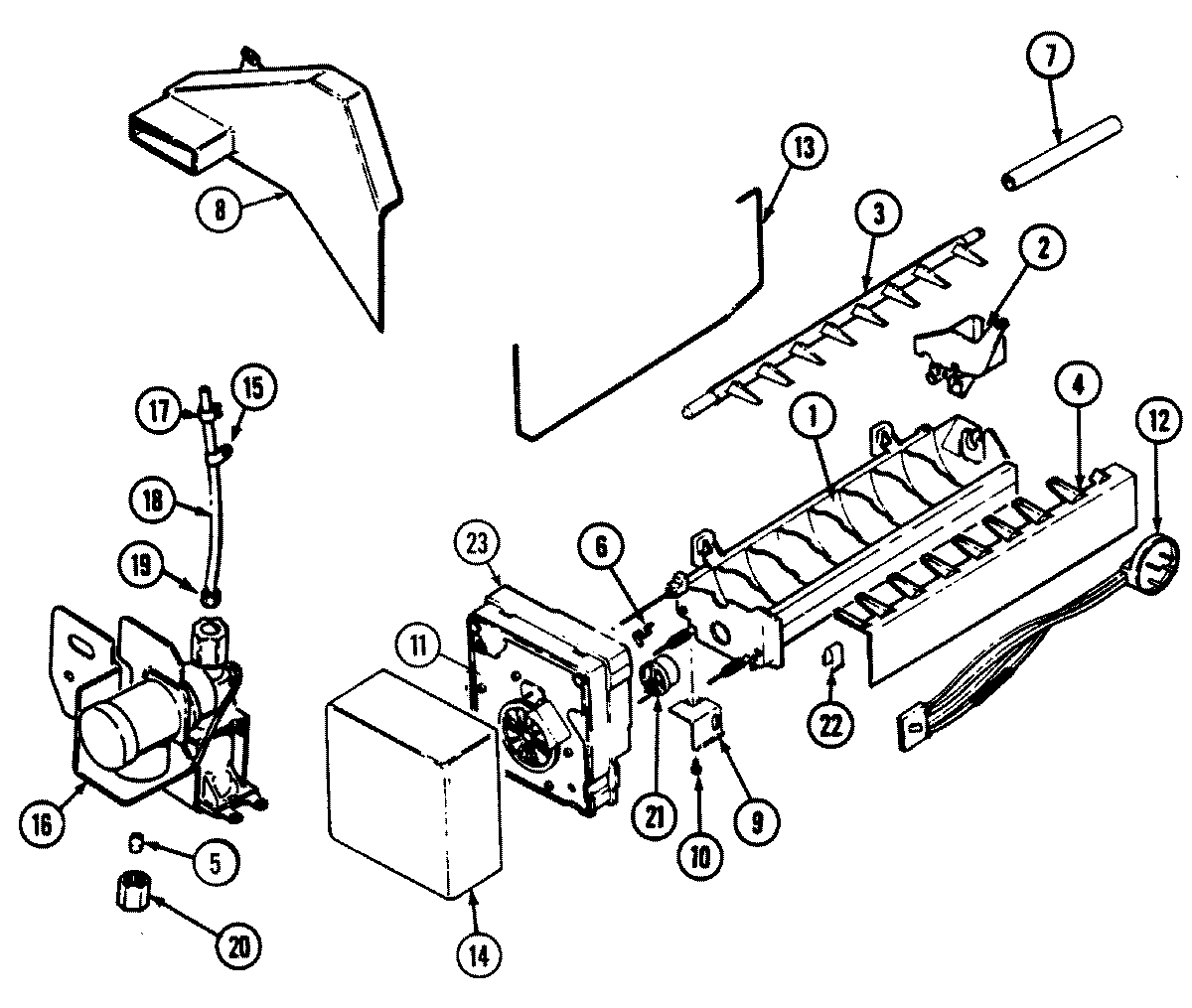

JRTE218W 05 – OPTIONAL ICE MAKER KIT (IM107)

JRTE218W 05 – OPTIONAL ICE MAKER KIT (IM107)

Products

PositionProduct
1D7824706Q Whirlpool Refrigerator Ice Maker Assembly
1WP99003172 Whirlpool Silicone L
2WP628356 Whirlpool Refrigerator Fill Cup
3WP627843 Whirlpool Refrigerator Ejector Arm
4WP2182124 Whirlpool Refrigerator Stripper Arm
5WP487627 Whirlpool Refrigerator Sleeve
6WP2315522 Whirlpool Refrigerator Clip
7MAY 67666-8
8MAY 70198-2
8MAY 70198-1
8MAY 70198-3
9BRACKET, MODULE & HEATER
10MAY 95108-1
11MAY 400021-1
11MAY 95109-1
12MAY 70076-1
13MAY 68112-1
14MAY 68328-2
15SCREW
15W10833902 Whirlpool Refrigerator Clamp
16MAY 69364-1
16MAY 401017-1
17WPM0114003 Whirlpool Microwave Speed Clip Clamp
18MAY 67579-6
19WP627018 Whirlpool Refrigerator Nut
20WP245183 Whirlpool Nut
21MAY 95093-1
21WP627985 Whirlpool Icemaker Cycling Thermostat
22MAY 68118-1
23WP2195914 Whirlpool Refrigerator Ice Maker Housing
23SCREW
