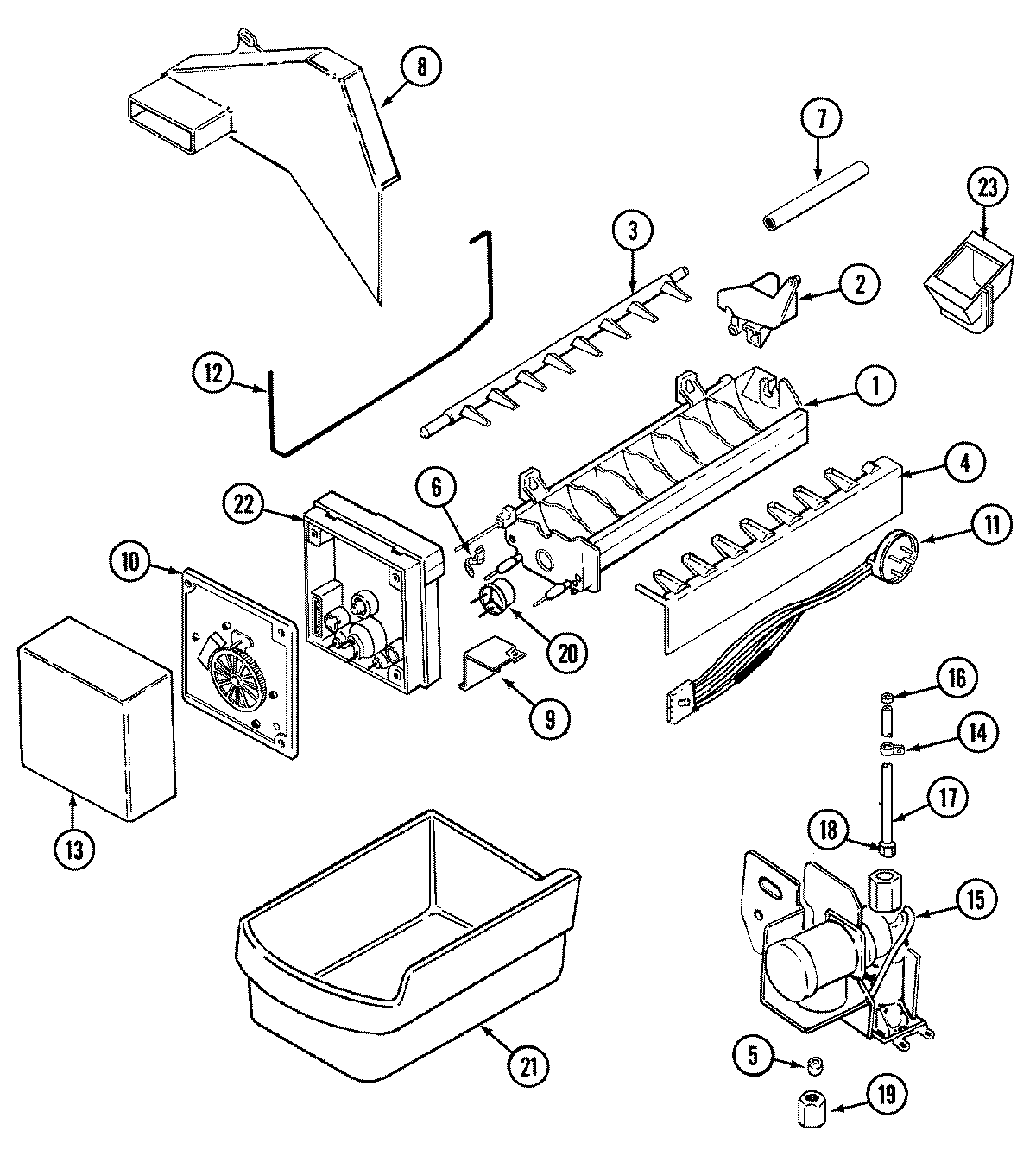

| 1 | D7824706Q Whirlpool Refrigerator Ice Maker Assembly |
| 1 | WP99003172 Whirlpool Silicone L |
| 2 | WP628356 Whirlpool Refrigerator Fill Cup |
| 3 | WP627843 Whirlpool Refrigerator Ejector Arm |
| 4 | WP2182124 Whirlpool Refrigerator Stripper Arm |
| 5 | WP487627 Whirlpool Refrigerator Sleeve |
| 6 | WP2315522 Whirlpool Refrigerator Clip |
| 7 | MAY 67666-8 |
| 7 | MAY 61001169 |
| 7 | MAY 67877-1 |
| 8 | MAY 400026-36 |
| 8 | MAY 70198-2 |
| 9 | BRACKET, MODULE & HEATER |
| 9 | MAY 95108-1 |
| 10 | MAY 95109-1 |
| 10 | MAY 400021-1 |
| 11 | MAY 70076-1 |
| 12 | MAY 68112-1 |
| 13 | MAY 61001239 |
| 14 | MAY 65275-50 |
| 14 | W10833902 Whirlpool Refrigerator Clamp |
| 15 | MAY 401018-1 |
| 15 | MAY 61001019 |
| 16 | WPM0114003 Whirlpool Microwave Speed Clip Clamp |
| 17 | MAY 67579-7 |
| 18 | WP627018 Whirlpool Refrigerator Nut |
| 19 | WP245183 Whirlpool Nut |
| 20 | MAY 95093-1 |
| 20 | WP627985 Whirlpool Icemaker Cycling Thermostat |
| 21 | WP67001255 Whirlpool Ice Bucket |
| 22 | SCREW |
| 22 | WP2195914 Whirlpool Refrigerator Ice Maker Housing |
| 23 | MAY 61001305 |
