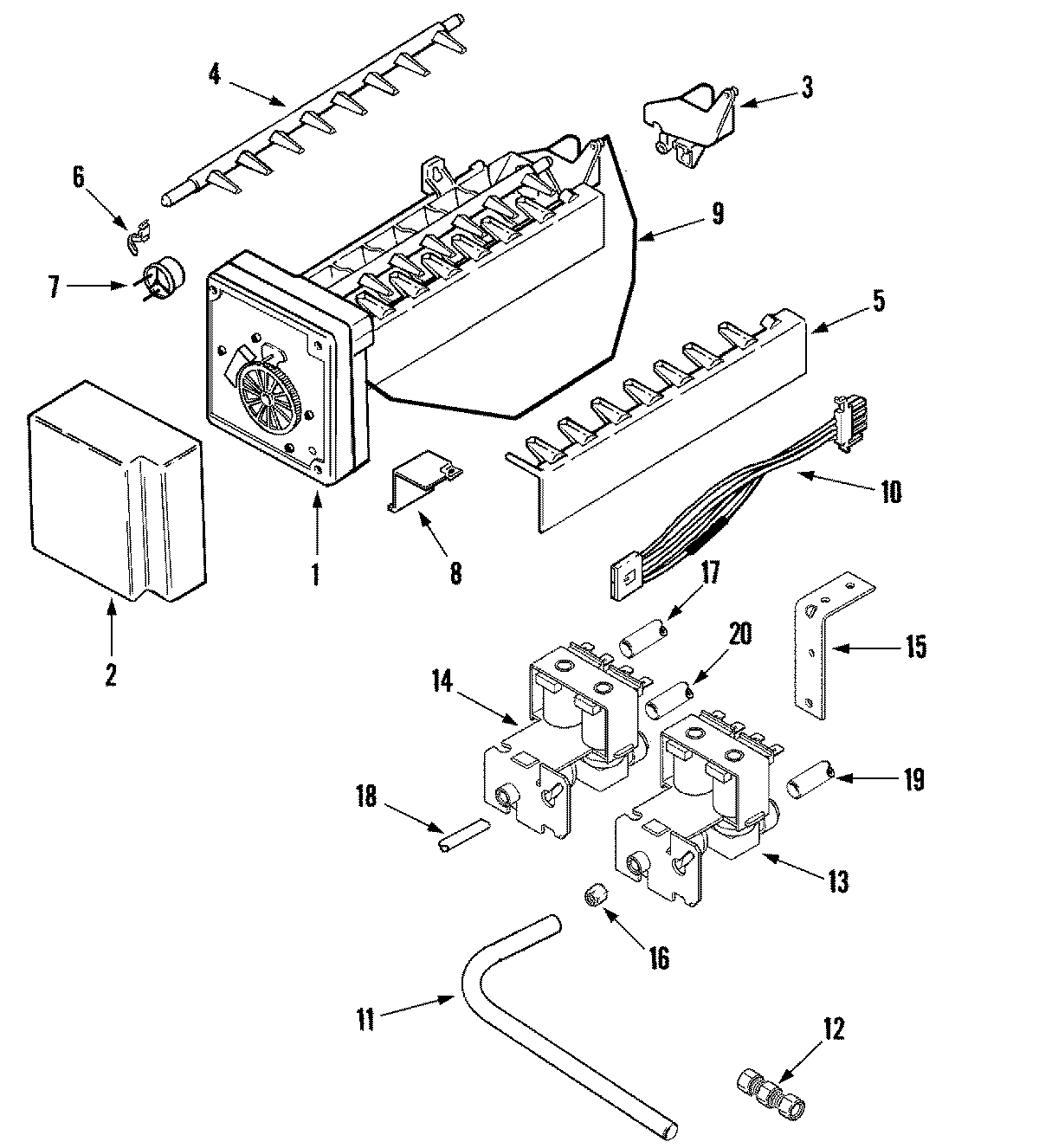

JS229SEBGB 09 – ICE MAKER

Products

Position	Product
1	MAY 67002578
1	415013-35 Whirlpool Refrigerator Screw
2	MAY 67001486
3	WP628356 Whirlpool Refrigerator Fill Cup
4	WP627843 Whirlpool Refrigerator Ejector Arm
5	WP2182124 Whirlpool Refrigerator Stripper Arm
6	WP2315522 Whirlpool Refrigerator Clip
7	WP627985 Whirlpool Icemaker Cycling Thermostat
7	MAY 95093-1
8	BRACKET, MODULE & HEATER
8	MAY 95108-1
9	MAY 67001538
10	MAY 67002801
11	MAY 67001484
12	WPW10296793A Whirlpool Refrigerator Connector
13	MAY 67002575
14	MAY 67002576
15	MAY 61002819
15	MAY 67001480
16	MAY 67001485
17	MAY 67001493
17	WPM0114003 Whirlpool Microwave Speed Clip Clamp
18	MAY 67001482
19	MAY 67001483
20	MAY 67187-25
