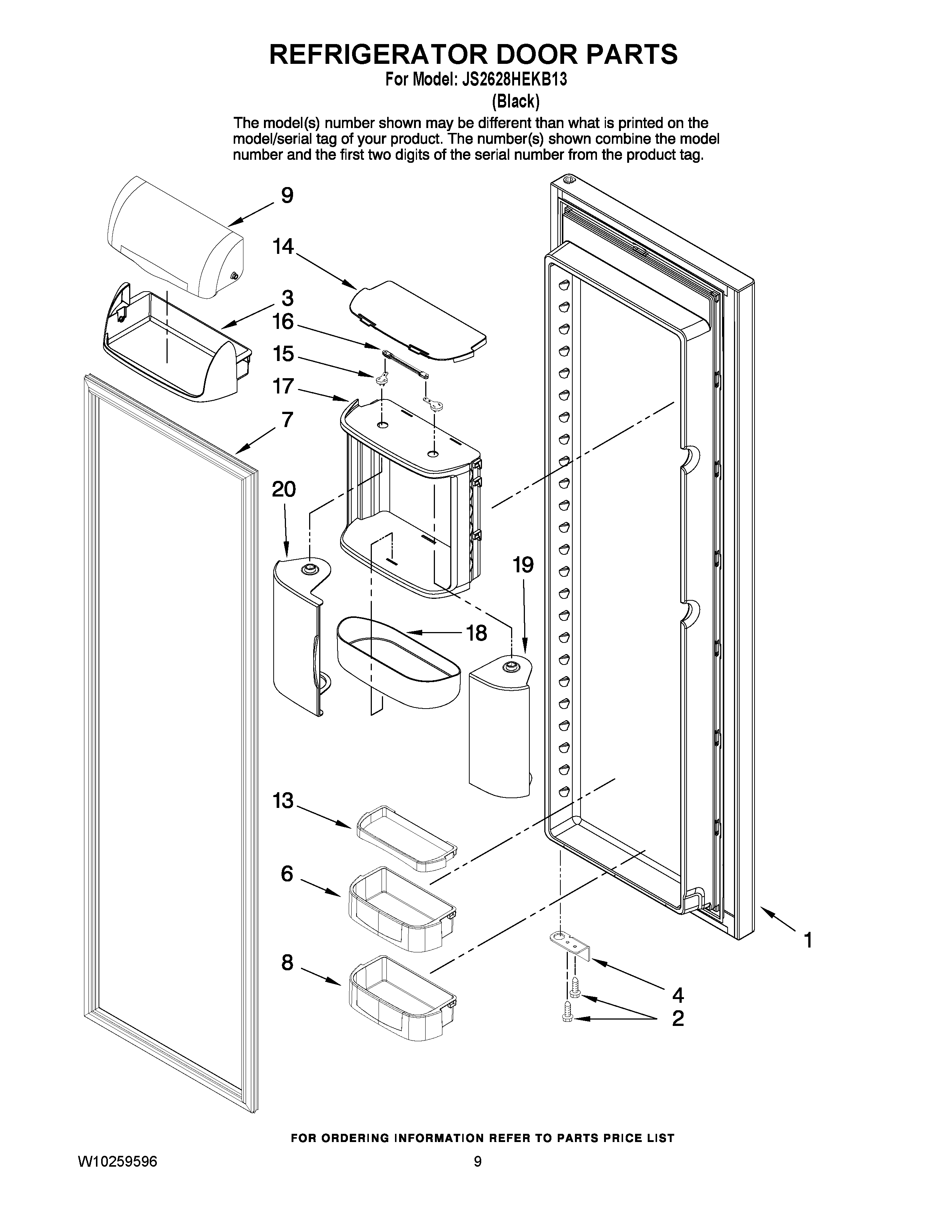

JS2628HEKB13 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY 12818236BQ
2Screw (2)
3MAY 67002304
4MAY 67007017
6MAY 67004540
7MAY W10133482
8MAY 67005630
9MAY 67002957
13MAY 67004458
14Cover, Chiller (2)
15Linkage, Chiller (4)
16Linkage, Center Chiller (2)
17Frame, Chiller (Large)
18Tray, Chiller (2)
19Door Chiller (RT) (Large)
20Door Chiller (LT) (Large)
