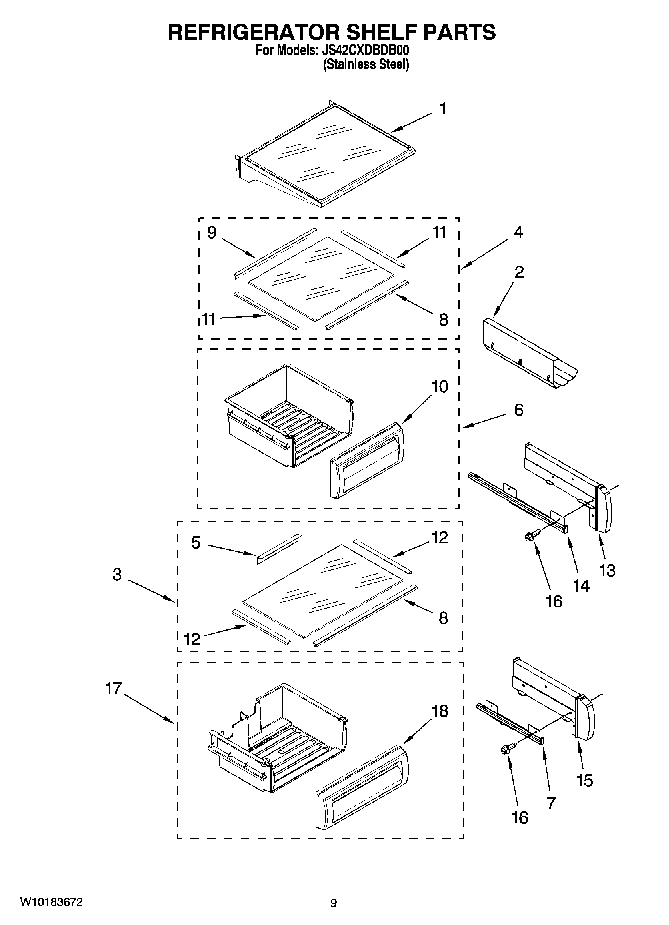

JS42CXDBDB00 07 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1MAY W10141494
2Rack, Wine
3MAY W10151215
4MAY W10151213
5MAY 2257582
6MAY 2252412
7Slide, Meat Pan (Right Side)
7Slide, Meat Pan (Left Side)
8MAY 2302831
9MAY 2256254
10MAY 2256248
11Trim, Glass Side Crisper Pan
12MAY 2256250
13Spacer, Crisper (Right Side (2))
13Spacer, Crisper (Left Side (2))
14Slide, Crisper (Right Side)
14Slide, Crisper (Left Side)
15Spacer, Meat Pan (Left Side)
15Spacer, Meat Pan (Right Side)
16Screw (Right Side- (8-18 x 1.375))
16Screw
17Pan Assembly Meat
18MAY 2256366
