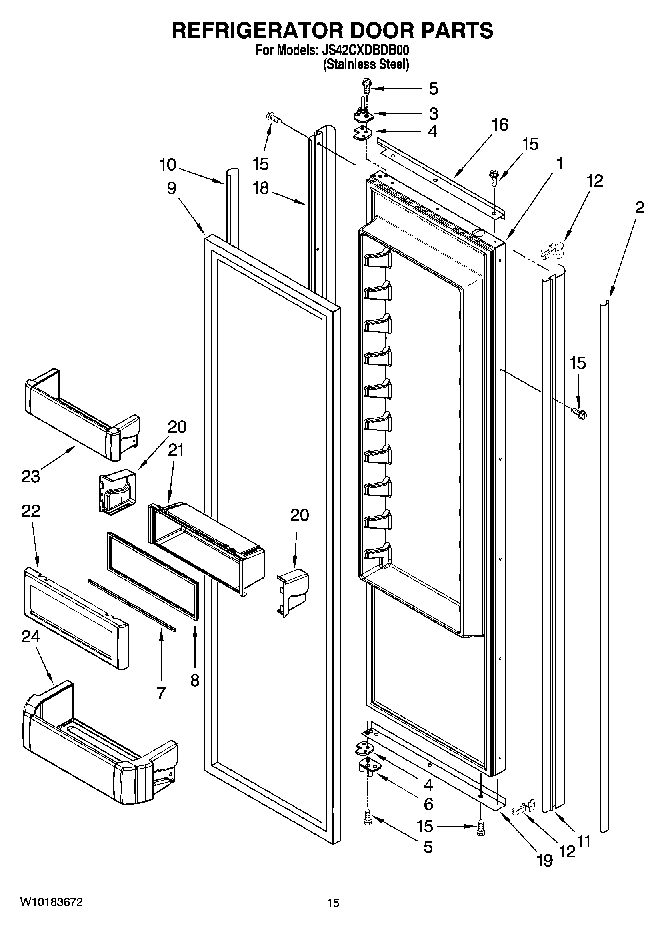

JS42CXDBDB00 10 – REFRIGERATOR DOOR PARTS

JS42CXDBDB00 10 – REFRIGERATOR DOOR PARTS

Written by

in

JS42CXDBDB00 10 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY 2252330
2	Cover, Trim (Handle Side) (Black)
3	MAY 2252295B
4	Spacer-Door, Top & Bottom
5	MAY 489282
6	MAY 2252293B
7	MAY 2222796
8	MAY 2222982
9	MAY 2222811
10	Cover, Trim (Hinge Side) (Black)
11	Handle, Door (Black)
12	MAY 2006273
15	Screw, 8-15 x .500 (Black)
16	MAY 2309486B
18	Trim-Door, Hinge Side (Black)
19	MAY 2309492B
20A	End Cap (Left Side)
20	End Cap (Right Side)
21	MAY 2222922
22	MAY 2257616
23	Bin, Door (3)
24	Bin, Door
