JS42CXDUDB02 04 – REFRIGERATOR LINER PARTS
Written by
in

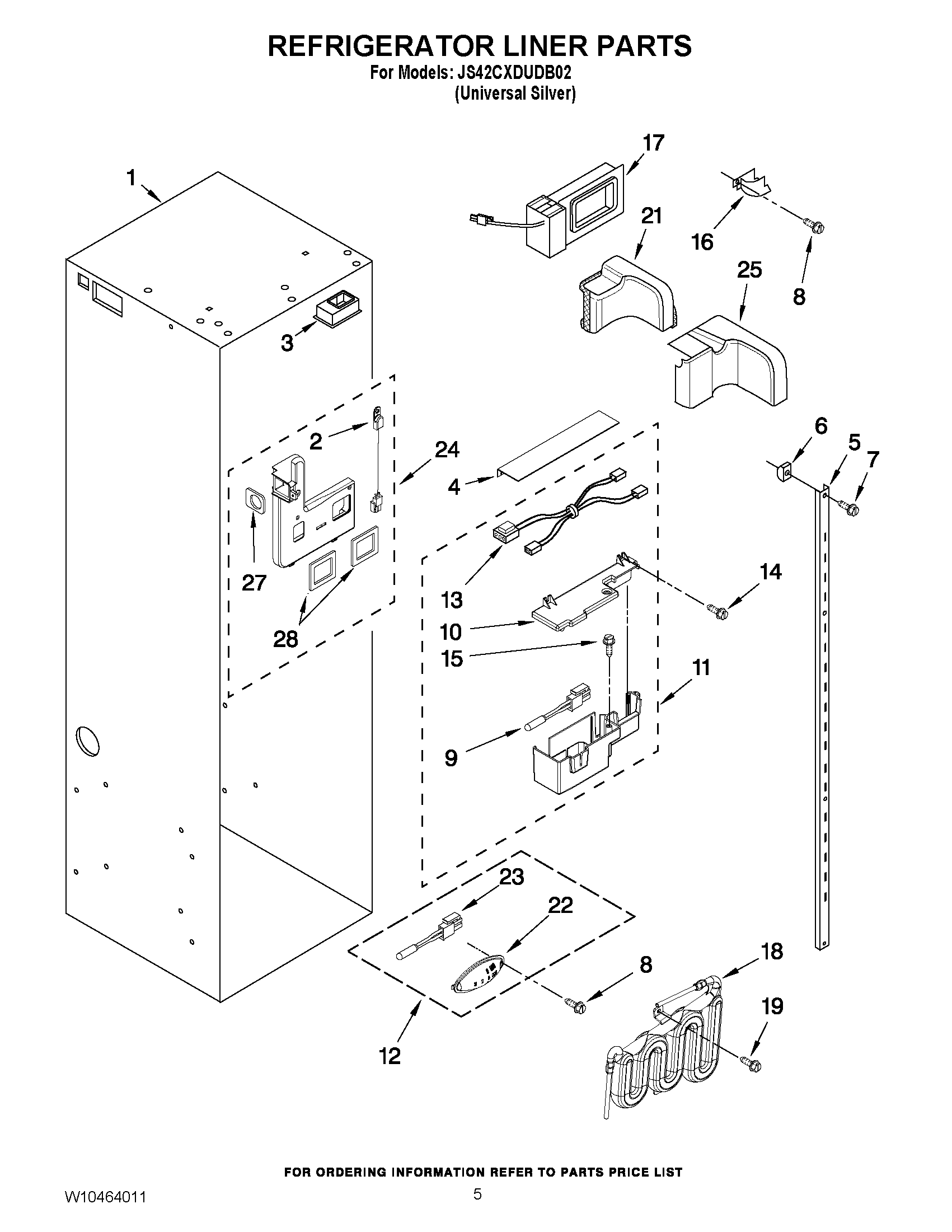

JS42CXDUDB02 04 – REFRIGERATOR LINER PARTS
Products
Position
Product
1
LINER (NOT A SERVICEABLE PART)
2
MAY 2306010
3
Air Duct
4
MAY W10159487
5
Ladder, Shelf (2)
6
Screw Support, Ladder (8)
7
SCREW
8
SCREW
9
MAY 2302937
10
Lid, Meat Pan Baffle
11
Baffle, Control Assembly
12
ASSEMBLY, THERMISTOR
13
Jumper, Air Baffle
14
Screw (Right Side- (8-18 x 1.375))
15
SCREW
16
MAY 2003577
17
Air Baffle Assembly
18
MAY 2327509
19
SCREW 8-15 X 3/4
21
Diffuser Assembly
22
MAY 2317105
23
MAY 2188820
24
MAY 2302992
25
Cover, Diffuser
27
MAY 2259412
28
Seal, Air Duct (Square Hole)
←
