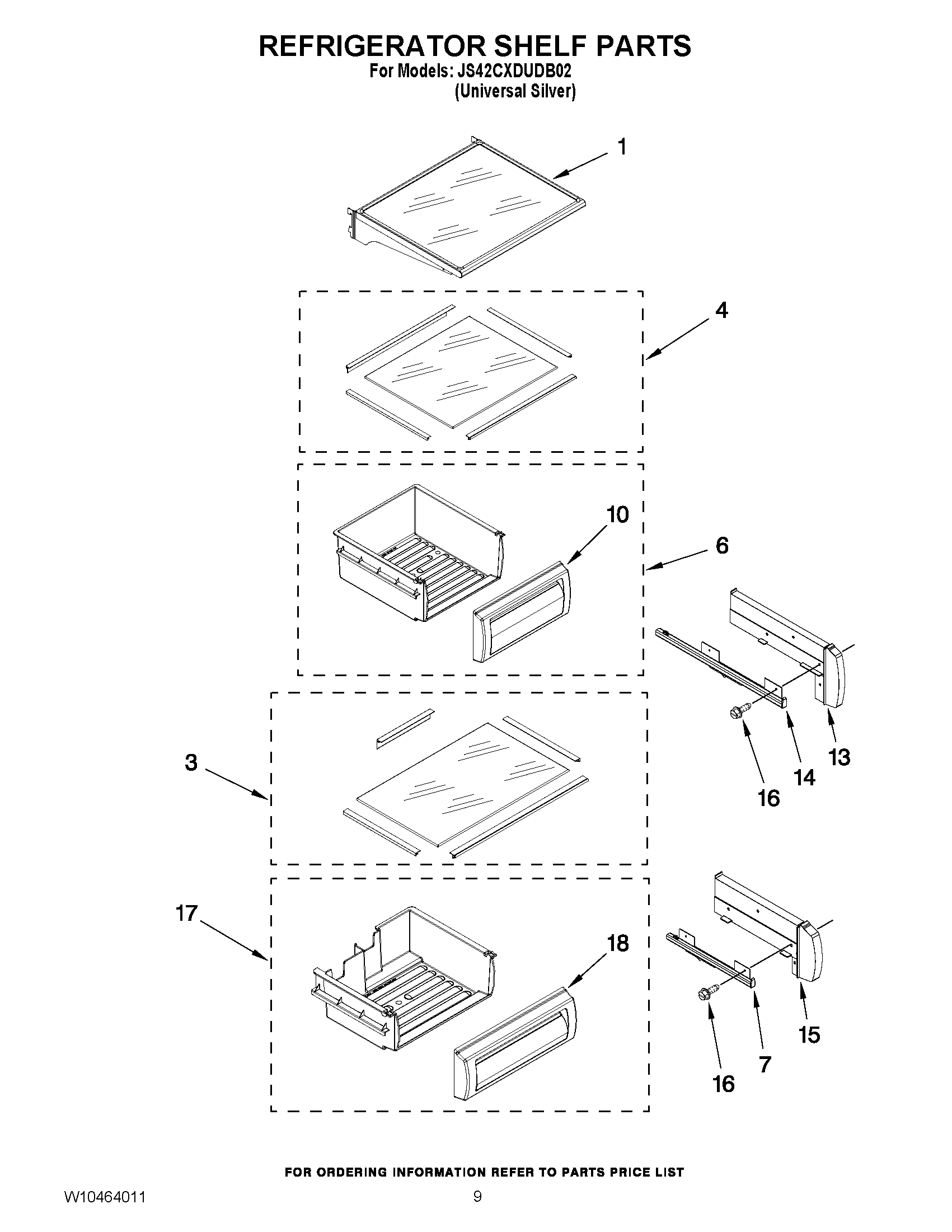

JS42CXDUDB02 07 – REFRIGERATOR SHELF PARTS

JS42CXDUDB02 07 – REFRIGERATOR SHELF PARTS

Written by

in

JS42CXDUDB02 07 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1MAY W10141494
3MAY W10151215
4MAY W10151213
6CRISPER PAN
7Slide, Meat Pan (Right Side)
7Slide, Meat Pan (Left Side)
10MAY 2256248
13Spacer, Crisper (Right Side (2))
13Spacer, Crisper (Left Side (2))
14Slide, Crisper (Right Side)
14Slide, Crisper (Left Side)
15Spacer, Meat Pan (Right Side)
15Spacer, Meat Pan (Left Side)
16Screw (Right Side- (8-18 x 1.375))
16Screw
17PAN ASSEMBLY MEAT
18MAY 2256366
