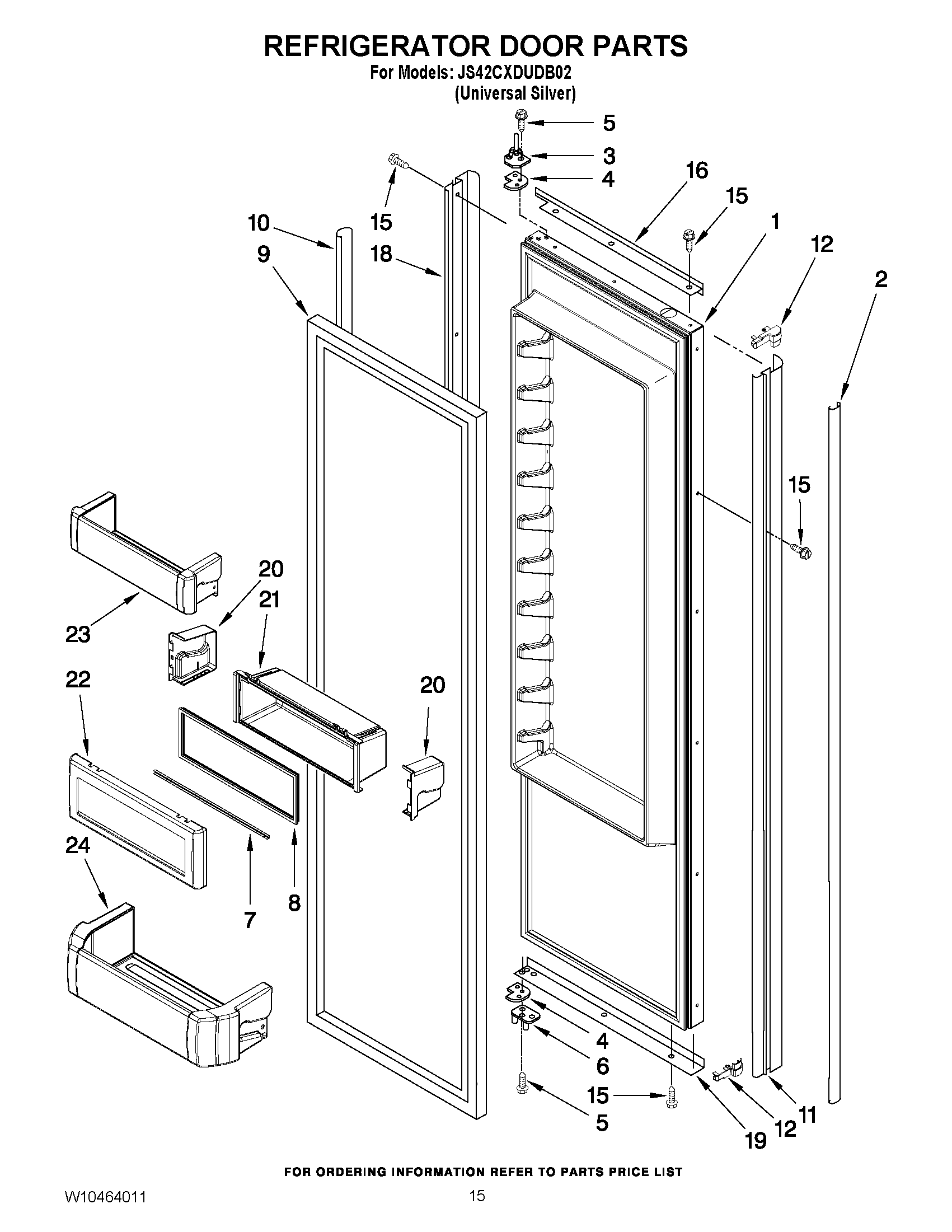

JS42CXDUDB02 10 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR ASSEMBLY, REFRIGERATOR
2	Trim, Screw Cover Handle Side (Stainless Steel)
3	Hinge Assy, Top (Chrome)
4	Spacer-Door, Top & Bottom
5	MAY W10162602
6	Hinge Assy, Btm (Chrome)
7	MAY 2222796
8	MAY 2222982
9	MAY 2222811
10	Trim, Screw Cover Hinge Side (Stainless Steel)
11	Trim-Door, Handle Side (Stainless Steel)
12	Trim, Corner (Chrome)
15	Screw, 8-15 x .500 (Stainless Steel)
15	Screw, 8-15 x .500 (Black)
16	Trim-Door, Top (Stainless Steel)
18	Trim-Door, Hinge Side (Stainless Steel)
19	Trim-Door, Btm (Stainless Steel)
20	END CAP (RIGHT HAND)
20	END CAP (LEFT HAND)
21	BIN, UTILITY CENTER
22	MAY 2257616
23	BIN, DOOR-SHALLOW
24	SHELF, DOOR (GALLON)
