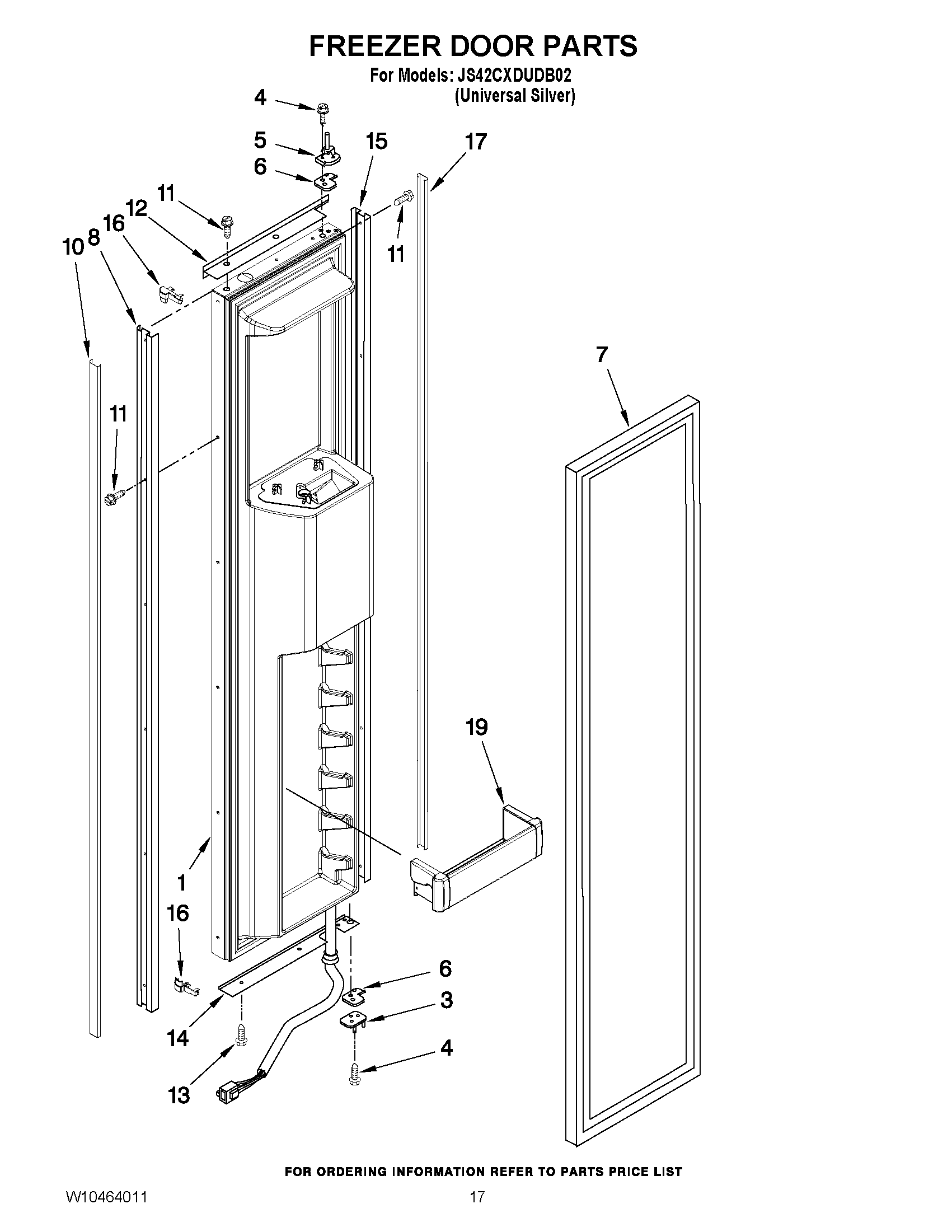

JS42CXDUDB02 11 – FREEZER DOOR PARTS

Products

Position	Product
1	FREEZER DOOR (INCLUDES No.7) (UNIVERSAL SILVER)
3	Hinge, Bottom (Chrome)
4	MAY W10162602
5	Hinge Assy, Top (Chrome)
6	Spacer-Door, Top & Bottom
7	MAY 2222814
8	Trim-Door, Handle Side (Stainless Steel)
10	Trim, Screw Cover Handle Side (Stainless Steel)
11	Screw, 8-15 x .500 (Black)
11	Screw, 8-15 x .500 (Stainless Steel)
12	Trim-Door, Top (Stainless Steel)
13	SCREW
14	Trim-Door, Btm (Stainless Steel)
15	Trim-Door, Hinge Side (Stainless Steel)
16	Trim, Corner (Chrome)
17	Trim, Screw Cover Hinge Side (Stainless Steel)
19	MAY W10323602
