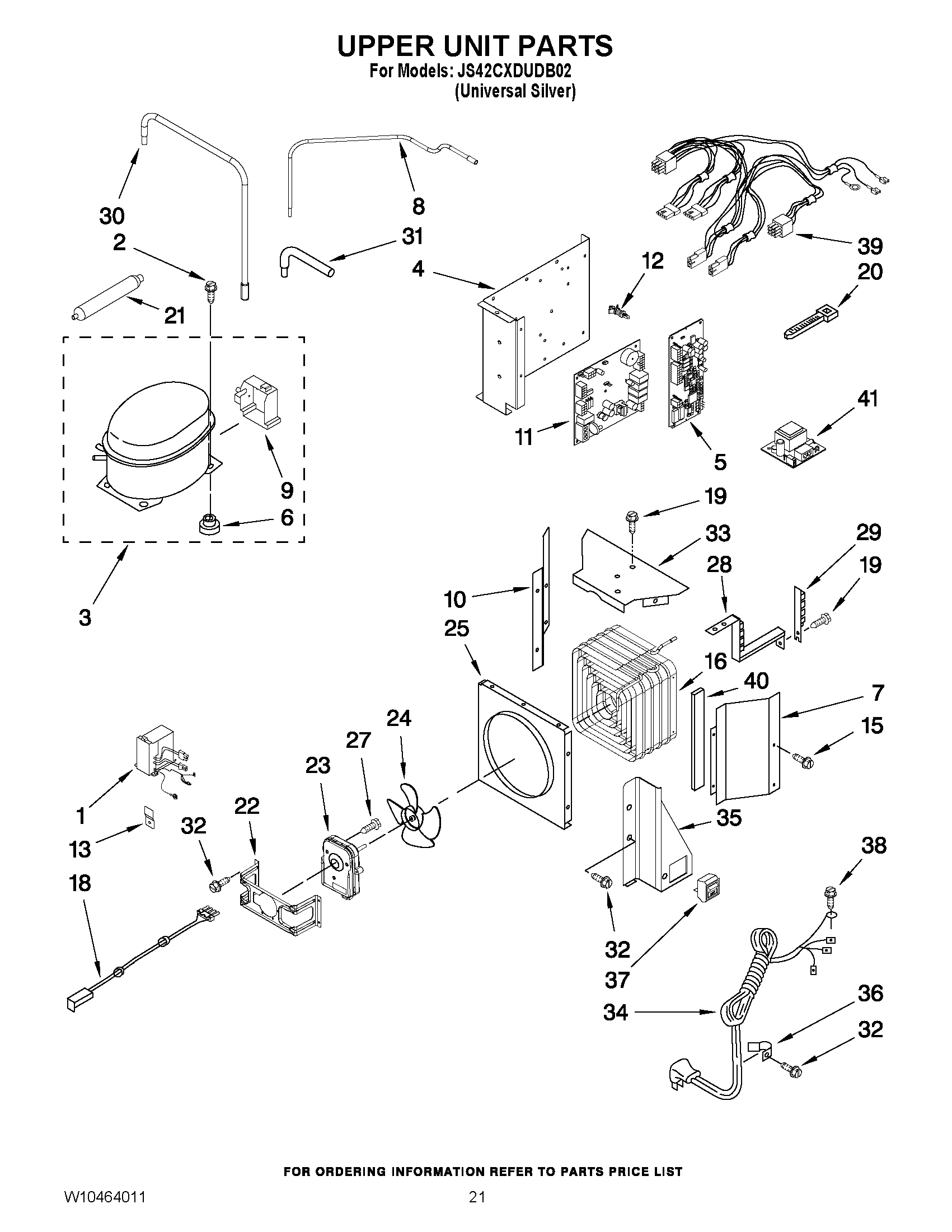

JS42CXDUDB02 13 – UPPER UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	MAY W10133449
2	MAY 489373
3	MAY W10173296
4	MAY 2318087
5	Control Board
6	Grommet (Production)
7	SUPPORT, CONDENSER (RIGHT HAND)
8	MAY W10234131
9	MAY 2215676
10	SUPPORT, CONDENSER (LEFT HAND)
11	Control Board
12	Spacer (5)
13	Bracket, Inverter Box
16	MAY 2307998
18	MAY 2310207
19	Screw 8-32 x 5/16
20	MAY 2155774
21	MAY W10175593
22	BRACKET, FAN MOTOR (CONDENSER FAN)
23	MAY 2188875
24	MAY W10139483
25	MAY W10415670
27	MAY 8533993
28	BRACKET, VIBRATION CONDENSER
29	ARM, VIBRATION CONDENSER
30	MAY 2307566
31	MAY 2194319
32	MAY 1157158
33	MAY 2309000
34	MAY 2310251
35	MAY W10185556
36	MAY 549193
37	Switch, Power Disconnect
38	Screw, Ground
39	Wiring Harness, Unit Compartment
40	MAY 2309432
41	Power Supply, Ingredient Care Center
