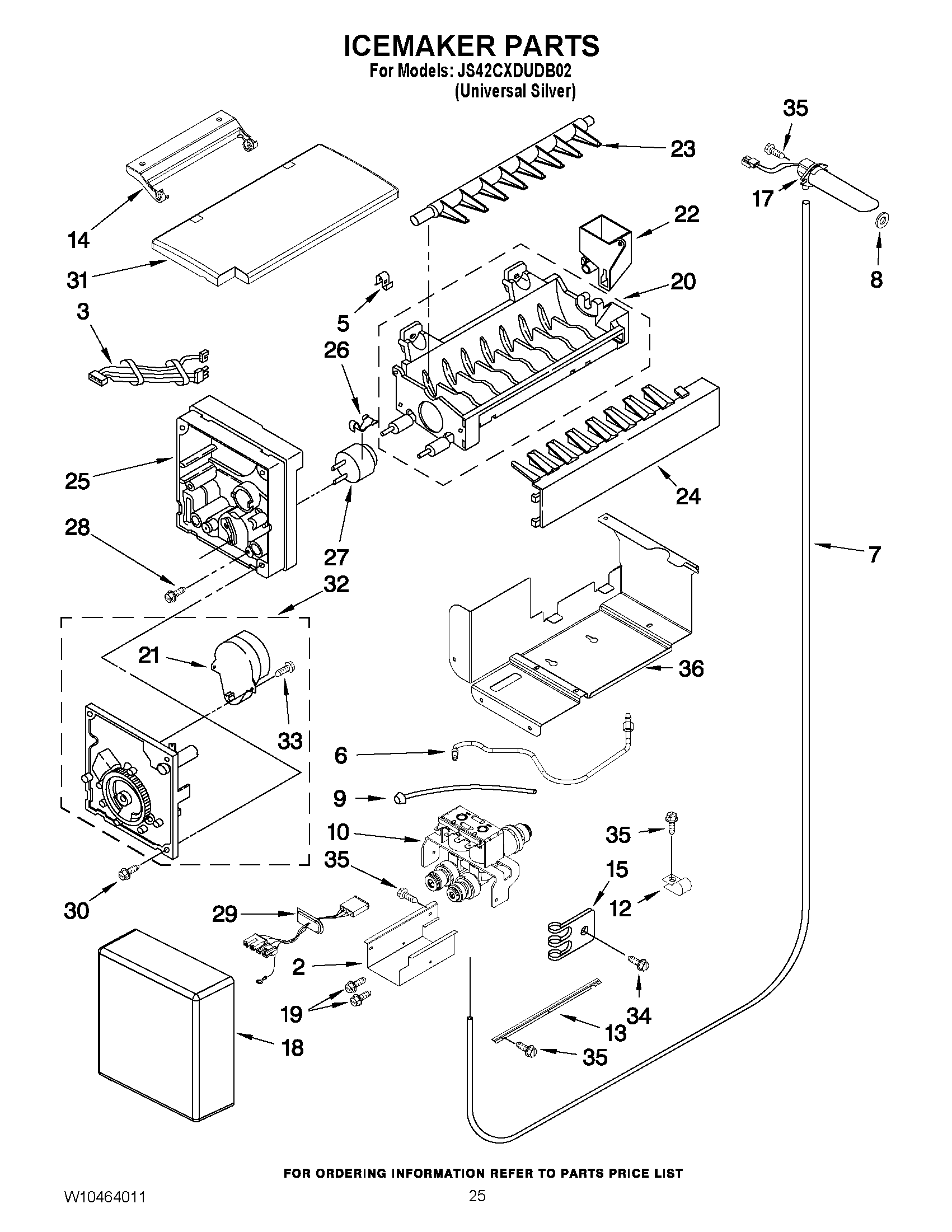

JS42CXDUDB02 15 – ICEMAKER PARTS

Products

Position	Product
NI	ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE
NI	ACCESSORY PARTS, CLEANER, STAINLESS STEEL
NI	MAY W10395653
NI	ACCESSORIES, WIPES, STAINLESS STEEL CLEANING
NI	MAY REFDEODOR
2	Shield, Valve
3	MAY 2310191
5	Clip
6	MAY W10296807
7	Water Tube
8	MAY 2302758
9	MAY 2317912
10	Valve, Solenoid
12	MAY 2221070
13	MAY 2320559
14	Bracket, Ice Maker Cover
15	Clip, Tube
17	MAY 2302756
18	COVER
20	MAY W10122527
21	MOTOR
22	MAY W10272168
23	MAY 627843
24	STRIPPER, ICE
25	MAY 2194712
26	MAY 2315522
27	MAY W10290336
28	MAY 8533917
29	WIRE ASSEMBLY, SMART VALVE
30	MAY 489276
31	MAY W10151255
32	MODULE ASSEMBLY (INCLUDES ITEM 24)
33	MAY 489136
34	MAY W10141645
35	SCREW
36	MAY 2252228
100	Complete Icemaker Assembly
