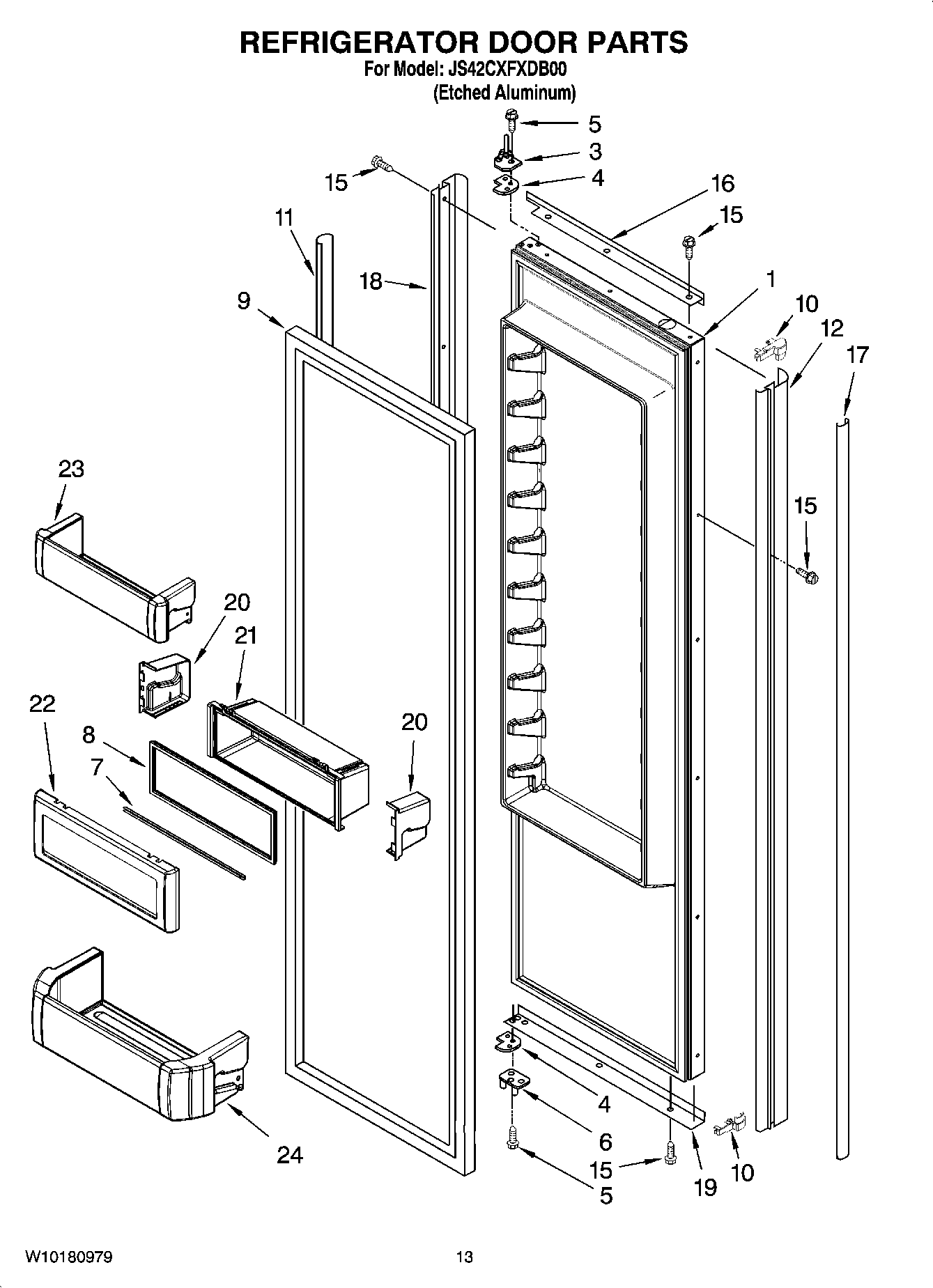

JS42CXFXDB00 09 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY 2252330
3Hinge Assy, Top (Chrome)
4Spacer-Door, Top & Bottom
5MAY 489282
6Hinge Assy, Btm (Chrome)
7MAY 2222796
8MAY 2222982
9MAY 2222811
10Trim, Corner (Chrome)
11Trim, Screw Cover Hinge Side (Stainless Steel)
12Trim-Door, Handle Side (Stainless Steel)
15Screw, 8-15 x .500 (Stainless Steel)
16Trim-Door, Top (Stainless Steel)
17Trim, Screw Cover Handle Side (Stainless Steel)
18Trim-Door, Hinge Side (Stainless Steel)
19Trim-Door, Btm (Stainless Steel)
20End Cap (Right Side)
20AEnd Cap (Left Side)
21MAY 2222922
22MAY 2257616
23Bin, Door (3)
24Bin, Door
