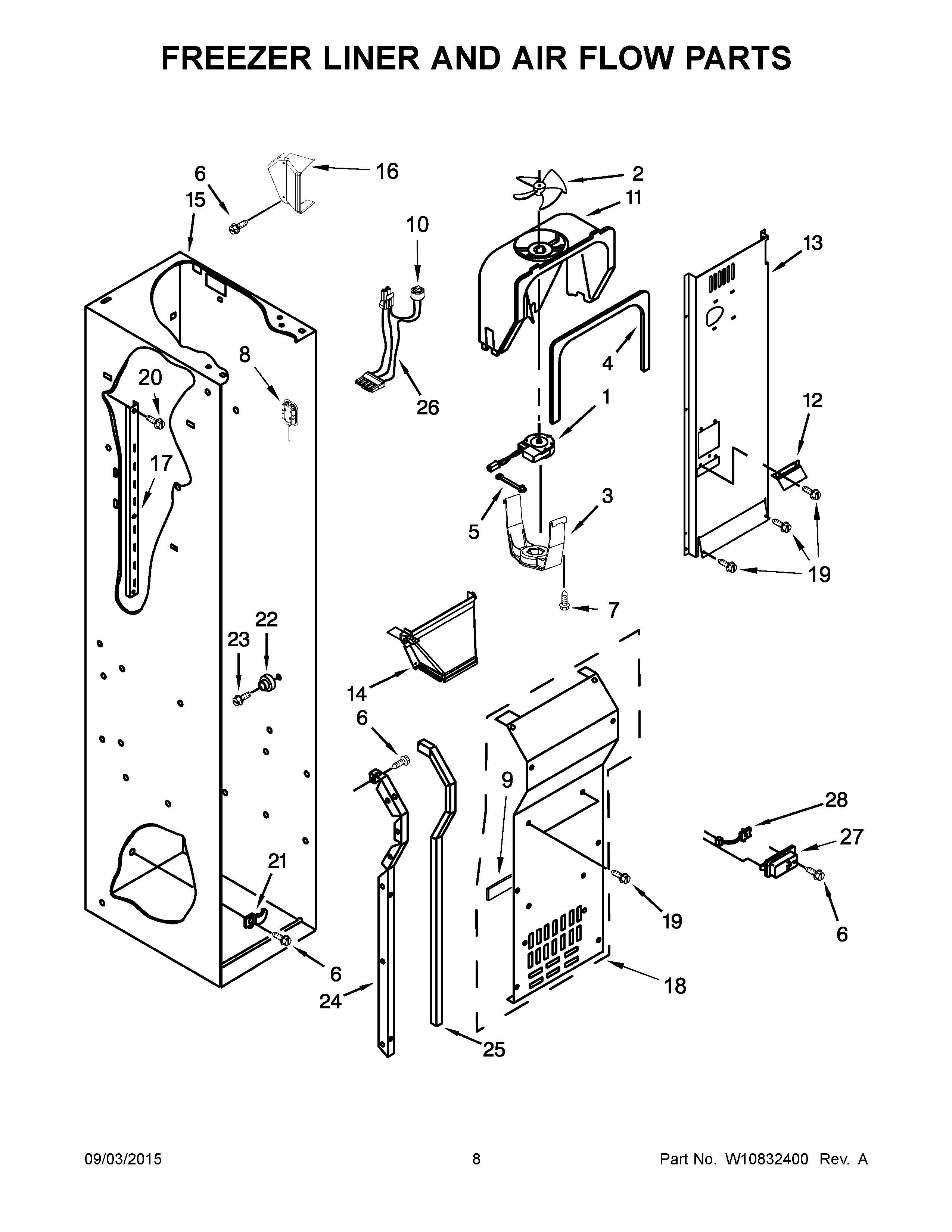

JS42NXFXDE00 05 – FREEZER LINER AND AIR FLOW PARTS

Products

PositionProduct
1MAY W10436861
2Blade, Fan (Evaporator)
3MAY W10260421
4Gasket, Cover
5MAY W10321090
6SCREW
7SCREW
8MAY W10607479
9MAY W10581988
10Defrost, Bi-Metal
11MAY W10170114
12DEFLECTOR, AIR
13DUCT, AIR
14MAY W10170112
15LINER (NOT A SERVICEABLE PART)
16COVER, AIR OUTLET
17LADDER, SHELF
18ASSEMBLY, EVAPORATOR COVER
19SCREW (BLACK)
20MAY 2001377
21MAY 1112260
22ASSEMBLY, SHELF STUD (INCLUDES SCREW)
23SCREW (BLACK)
24AEVAPORATOR, COVER RAIL (RH)
24EVAPORATOR, COVER RAIL (LH)
25GASKET, EVAPORATOR COVER
26MAY W10482187
27COVER, THERMISTOR
28MAY 2188820
