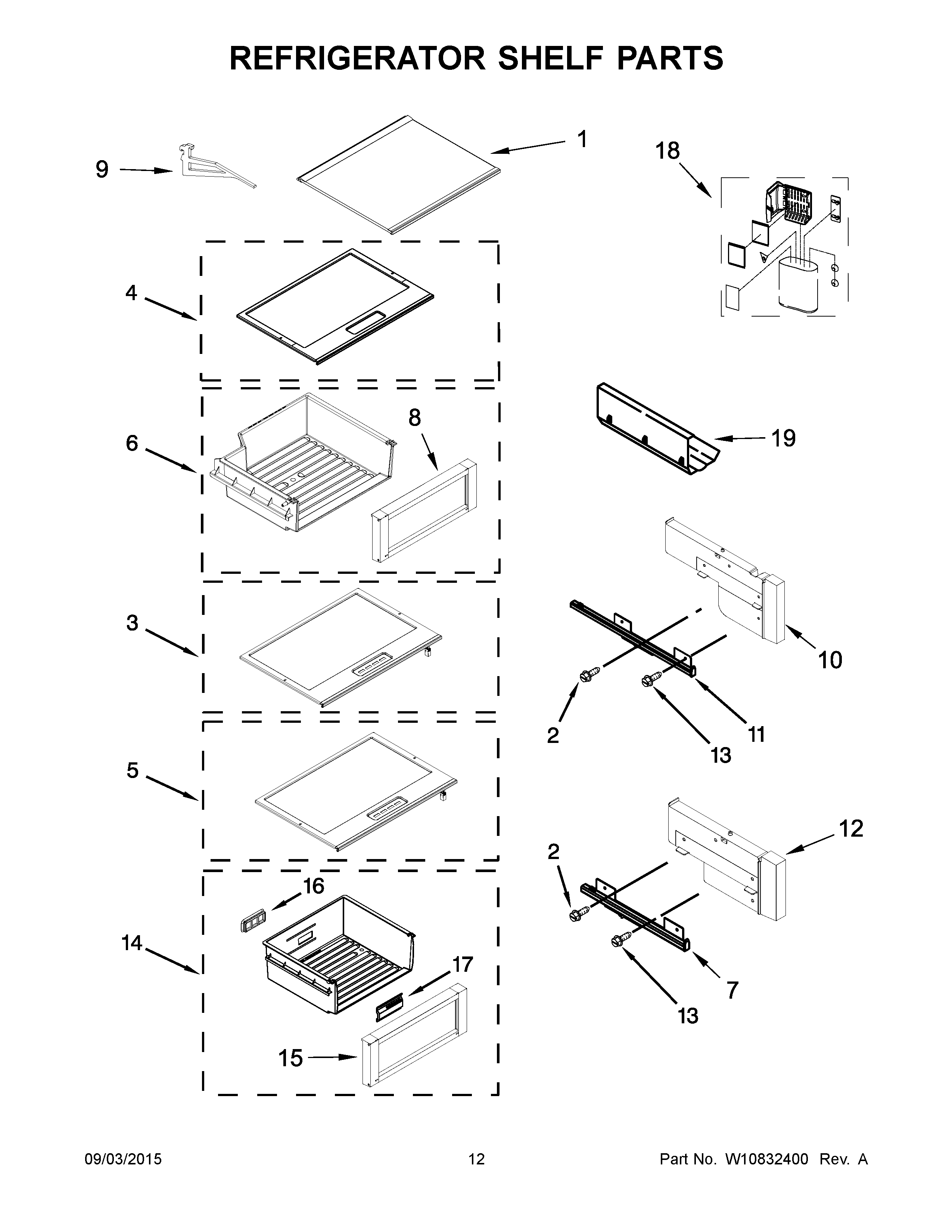

JS42NXFXDE00 07 – REFRIGERATOR SHELF PARTS

JS42NXFXDE00 07 – REFRIGERATOR SHELF PARTS

Written by

in

JS42NXFXDE00 07 – REFRIGERATOR SHELF PARTS

Products

PositionProduct
1SHELF ASSY
2MAY W10215666
3ASSEMBLY, CRISPER COVER
4ASSEMBLY, MEAT PAN COVER
5ASSEMBLY, CRISPER COVER
6MAY W10732459
7ASLIDE, MEAT PAN (RIGHT HAND)
7MAY W10794953
8MAY W10789220
9SIDEARM, SHELF
10SPACER, CRISPER
11ASLIDE, CRISPER (RIGHT HAND)
11MAY W10794952
12SPACER, MEAT
13Screw
14MAY W10732456
15MAY W10789215
16MAY W10787392
17DEFLECTOR, AIR
18MAY W10593207
19RACK, WINE
