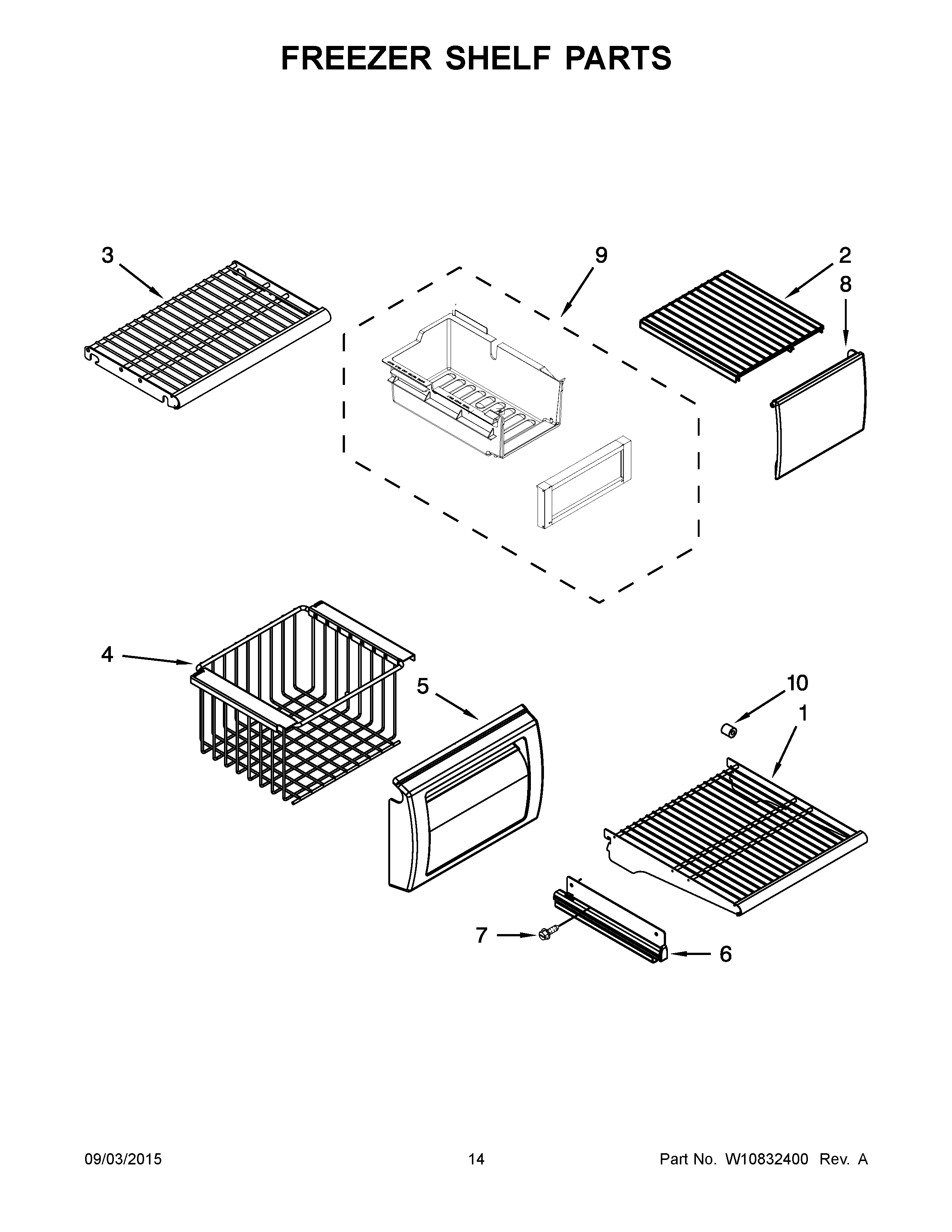

JS42NXFXDE00 08 – FREEZER SHELF PARTS

JS42NXFXDE00 08 – FREEZER SHELF PARTS

Written by

in

JS42NXFXDE00 08 – FREEZER SHELF PARTS

Products

Position	Product
1	SHELF, WIRE
2	COVER, SHELF
3	SHELF, FIXED
4	BASKET, FREEZER
5	ASSEMBLY, BASKET FRONT
6A	Slide, Basket (Right Side)
6	Slide, Basket (Left Side)
7	Screw
8	DOOR, ICE
9	BUCKET, ICE
10	SPACER, ICE DOOR
