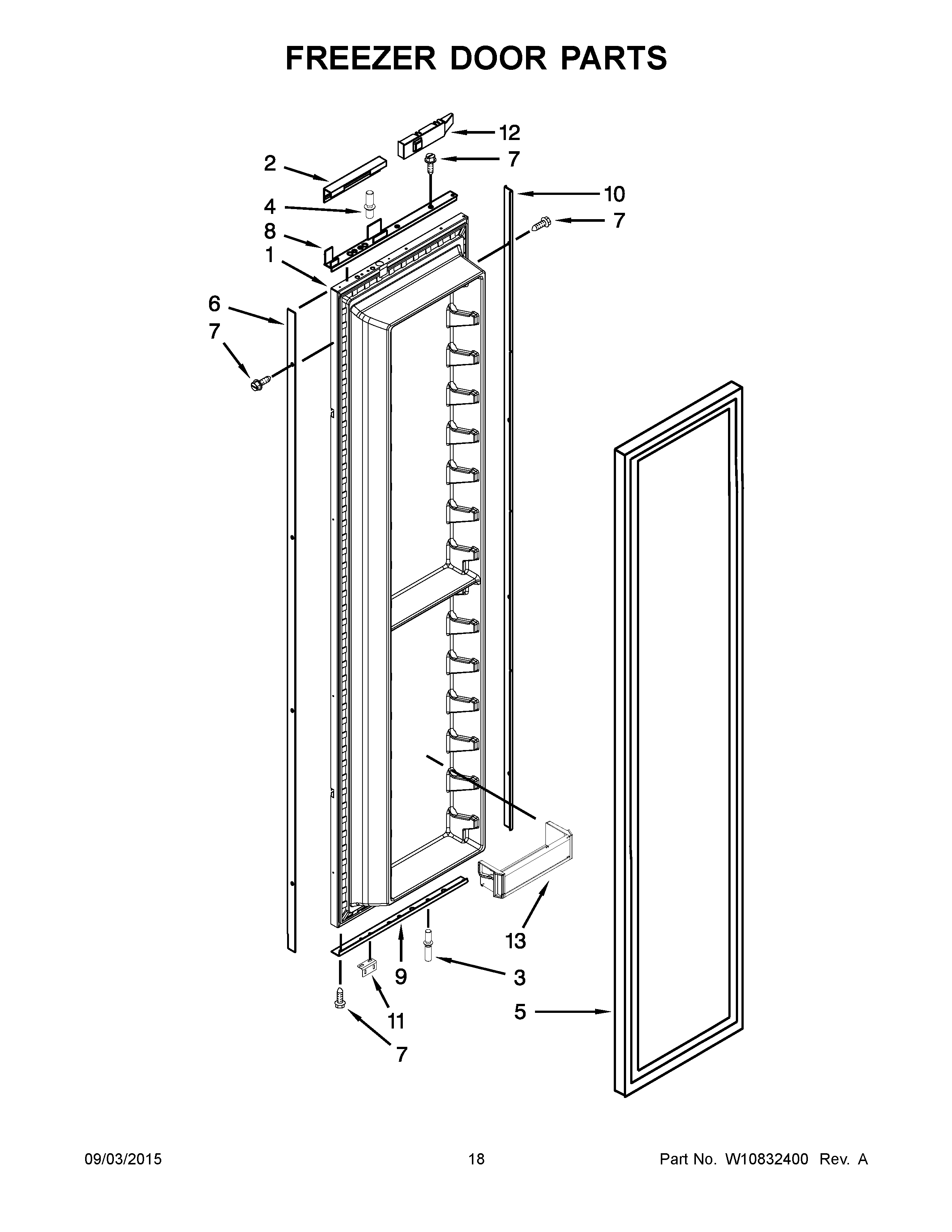

JS42NXFXDE00 10 – FREEZER DOOR PARTS

JS42NXFXDE00 10 – FREEZER DOOR PARTS

Written by

in

JS42NXFXDE00 10 – FREEZER DOOR PARTS

Products

PositionProduct
1DOOR, FREEZER
2COVER, DOOR (TOP) (CHARCOAL)
3Pin-Door, Bottom
4Pin-Door, Top
5GASKET, DOOR (GREY)
6TRIM, DOOR (HANDLE SIDE) (CHARCOAL)
7Screw, 8-15 x .500 (Black)
8TRIM, TOP DOOR (CHARCOAL)
9TRIM, BOTTOM DOOR (CHARCOAL)
10TRIM, DOOR (HINGE SIDE) (CHARCOAL)
11BRACKET, PANEL MOUNTING (GREY)
12AINSERT, DOOR ARM BOTTOM (GREY)
12INSERT, DOOR ARM TOP (GREY)
13BIN, SHALLOW
