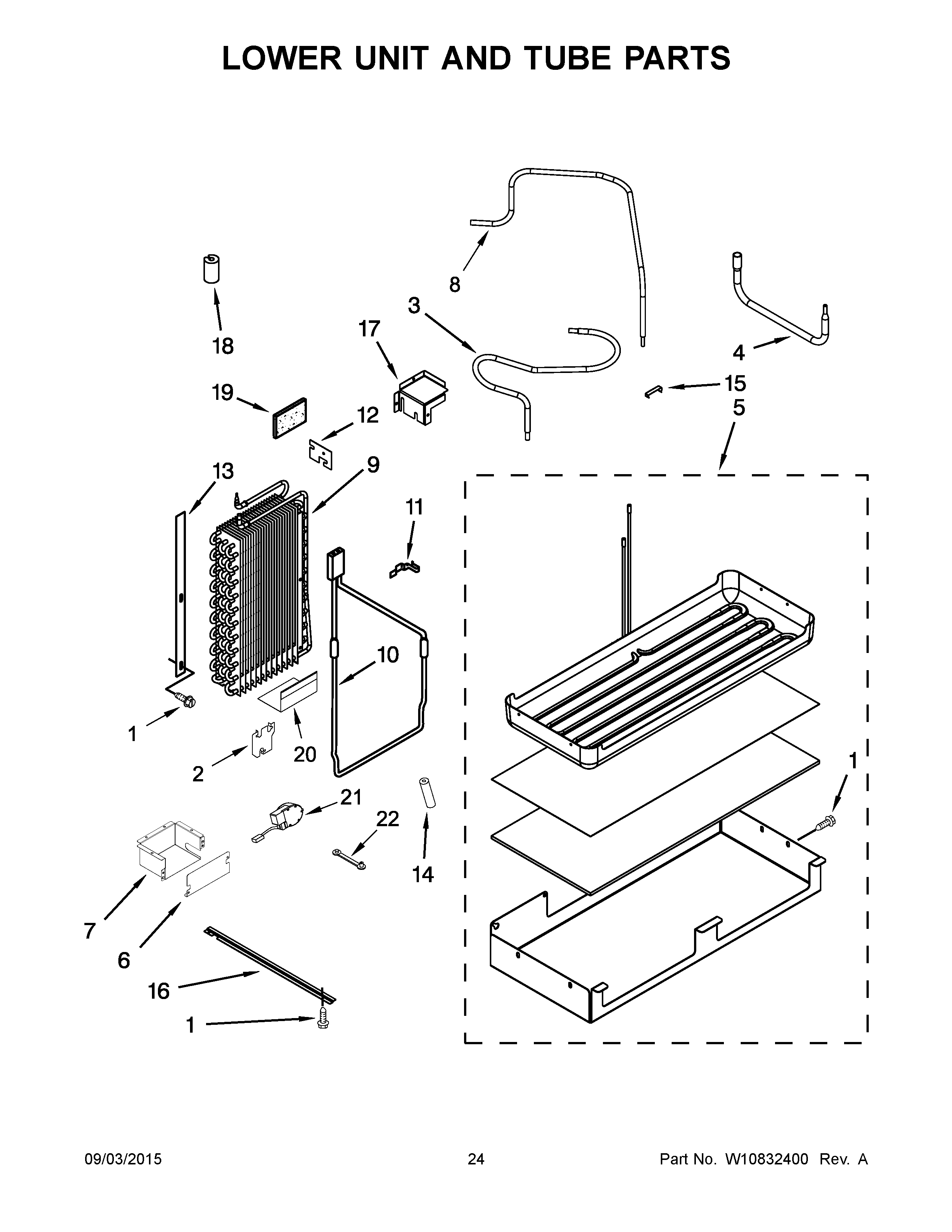

JS42NXFXDE00 13 – LOWER UNIT AND TUBE PARTS

Products

Position	Product
1	SCREW
2	Bracket
3	MAY W10648568
4	TUBE, CONNECT (DRIER/RESTRICTOR)
5	MAY W10281063
6	MAY W10321048
7	MAY W10309012
8	MAY W10499596
9	MAY W10427992
10	MAY W10140161
11	MAY 1113048
12	Cover Seal, Evaporator Tubes
13	MAY W10432308
14	Dampener
15	MAY W10169509
16	MAY 2320554
17	Bracket Assembly, Air Return
18	GROMMET, CONDENSER
19	SEALER, INSULATION
20	MAY W10321050
21	MAY W10436861
22	MAY W10321090
