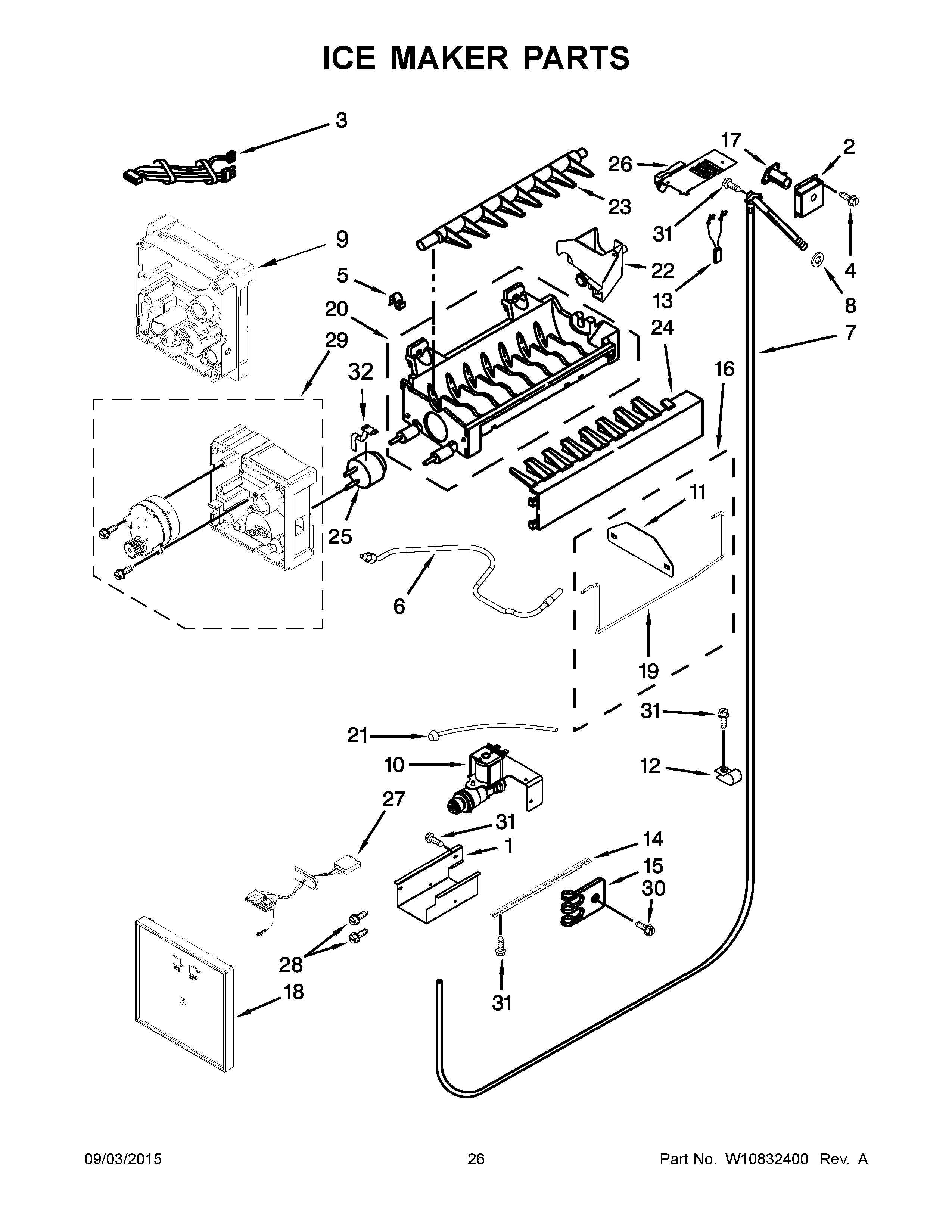

JS42NXFXDE00 14 – ICE MAKER PARTSadmin2025-04-26T09:14:26+00:00JS42NXFXDE00 14 – ICE MAKER PARTS
Products
| Position | Product |
|---|
| NI | ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE |
| NI | MAY W10488101 |
| NI | MAY W10489178 |
| NI | MAY W10553982 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | BLOCK, INSTALL TEMPLATE, WOOD PANELS |
| NI | ACCESSORIES, WIPES, STAINLESS STEEL CLEANING |
| NI | ACCESSORY PARTS, CLEANER, STAINLESS STEEL |
| NI | MAY REFDEODOR |
| 1 | MAY W10129653 |
| 2 | MAY W10176577 |
| 3 | WIRE ASSEMBLY, ICE MAKER |
| 4 | SCREW (BLACK) |
| 5 | Clip |
| 6 | MAY W10296807 |
| 7 | Water Inlet Tube Assembly |
| 8 | Seal |
| 9 | MAY W10790253 |
| 10 | MAY 2307650 |
| 11 | EXTENSION, SHUT OFF ARM |
| 12 | MAY 2221070 |
| 13 | WIRE ASSEMBLY, FILL TUBE HEATER |
| 14 | MAY 2320559 |
| 15 | Clip, Tube |
| 16 | MAY W10802377 |
| 17 | MAY 2221240 |
| 18 | COVER, ICEMAKER |
| 19 | MAY 2304352 |
| 20 | ASSEMBLY, MOLD AND HEATER (ALSO ORDER 542638) |
| 21 | MAY W10683737 |
| 22 | MAY W10788843 |
| 23 | MAY 627843 |
| 24 | MAY W10788834 |
| 25 | Thermostat (Also Order 542369 Cement Alumilastic) |
| 26 | MAY 2221231 |
| 27 | MAY W10279393 |
| 28 | SCREW |
| 29 | Module Assembly (Includes Items 23 and 24) |
| 30 | MAY W10001250 |
| 31 | SCREW |
| 32 | MAY 2315522 |
| 100 | COMPLETE ICEMAKER ASSEMBLY |
