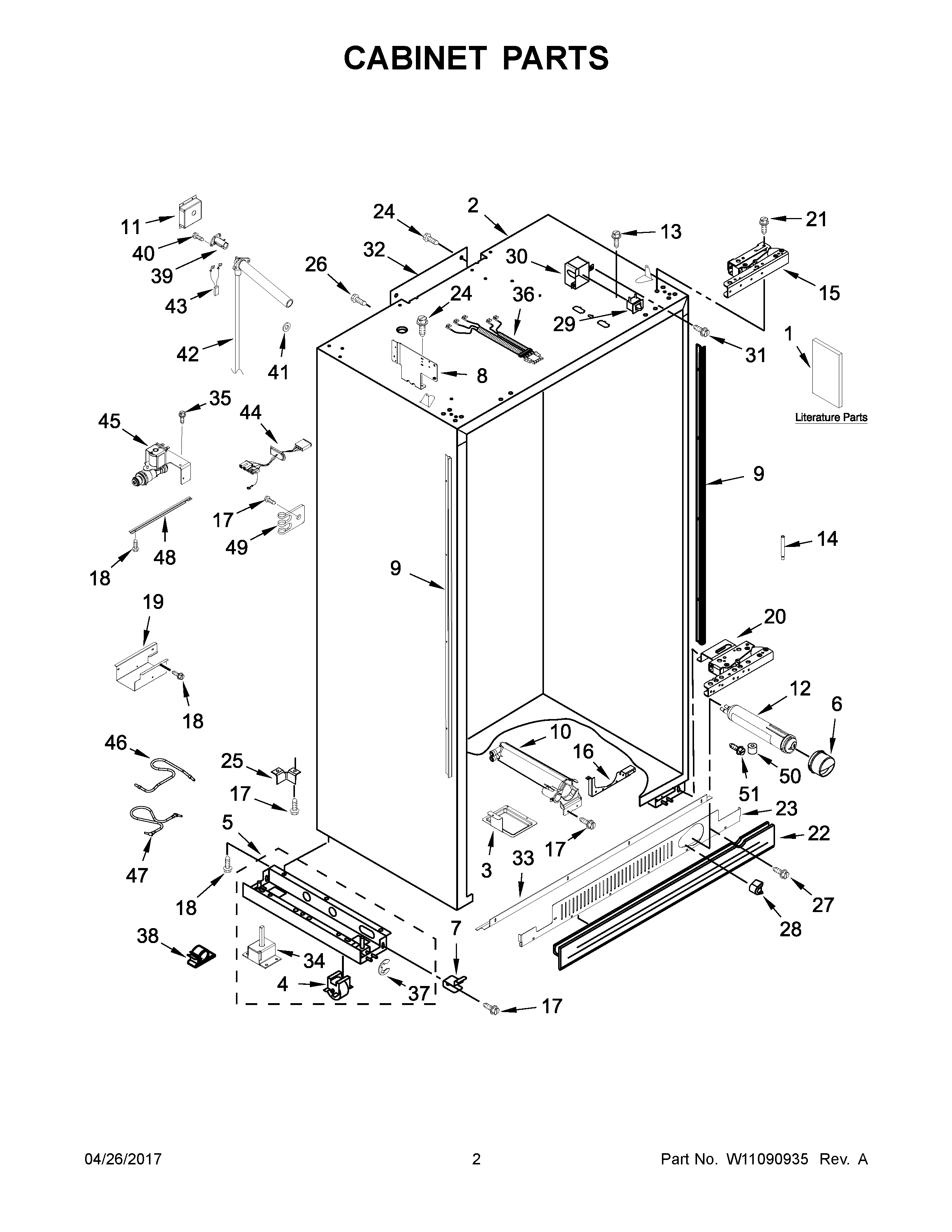

JS42NXFXDE01 02 – CABINET PARTS

JS42NXFXDE01 02 – CABINET PARTS

Written by

in

JS42NXFXDE01 02 – CABINET PARTS

Products

PositionProduct
NIMAY W10744761
NIMAY W10488101
NIBLOCK, INSTALL TEMPLATE, WOOD PANELS
NIMAY W10613135
NILINER (NOT A SERVICEABLE PART)
1BMAY W10910735
1DINSTALLATION INSTRUCTIONS
1AENERGY GUIDE
1CMAY W10910738
1USE AND CARE GUIDE
3Tray, Drip Filter
4MAY W10138054
5SUPPORT, LEVELER ASSEMBLY (LEFT HAND)
5ASUPPORT, LEVELER ASSEMBLY (RIGHT HAND)
6CAP, WATER FILTER (BLACK)
7Mounting Stud, Grille
8BRACKET, GRILLE LEFT HAND (GREY)
8ABRACKET, GRILLE RIGHT HAND (GREY)
9TRIM, CABINET SIDE LEFT HAND (GREY)
9ATRIM, CABINET SIDE (RIGHT HAND) (GREY)
10MAY W10121140
11MAY W10831026
12Filter, Water
13Screw 8-32 x 5/16
14Pin-Stop, Door
15AHINGE (TOP) RIGHT HAND (GREY)
15HINGE (TOP) LEFT HAND (GREY)
16MAY W10674648
17MAY W10001250
18SCREW
19MAY W10129653
20AHINGE (BOTTOM) RIGHT HAND (GREY)
20HINGE (BOTTOM) LEFT HAND (GREY)
21Screw 1/4-20 x 5/8
22Skirt-Grille, Bottom
23Grille Bottom, Front
24MAY 1157158
25Bracket, Support Base (Rear) (2)
26SCREW
27MAY W10005050
28Button, Filter (Black)
29SWITCH, LIGHT
30ACOVER, SWITCH (RH)
30COVER, SWITCH (LH)
31Screw
32Cover, Rear
33GRILLE TRIM (GREY)
34LEVELER ASSY
35Screw
36ASSEMBLY, LIGHT SWITCH WIRE
37Ring, Retainer
38CLIP
39MAY 2221240
40SCREW (BLACK)
41Seal
42Water Inlet Tube Assembly
43WIRE ASSEMBLY, FILL TUBE HEATER
44MAY W10279393
45MAY 2307650
46MAY W10296807
47MAY W10683737
48MAY 2320559
49Clip, Tube
50Spacer, Door-Skin (Top)
51MAY 9741232
