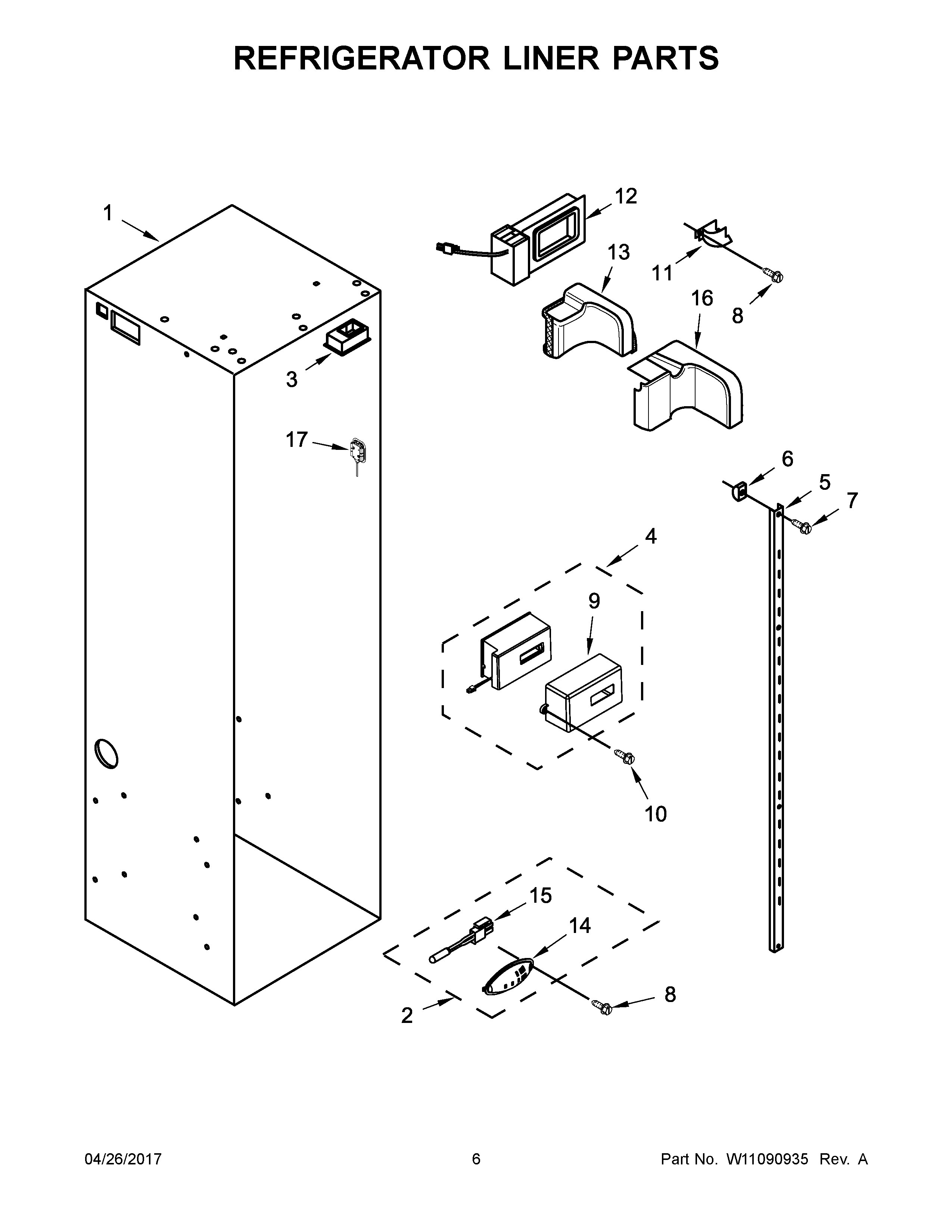

JS42NXFXDE01 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2ASSEMBLY, THERMISTOR
3MAY W10832844
4ASSEMBLY, DIFFUSER
5ALADDER (SHORT)
5LADDER (LONG)
6Support, Screw
7MAY W10832438
8SCREW (BLACK)
9COVER, AIR DIFFUSER
10SCREW
11GUARD, AIR RETURN
12Air Baffle Assembly
13Diffuser Assembly
14COVER, THERMISTOR
15MAY 2188820
16COVER, DIFFUSER
17ASSEMBLY, LED MODULE
